Rear Axel Speed Sensor / Rear ABS Sensor DIY

Reply




Thread Tools Search this Thread
  #1
Old 11-10-2009, 12:08 PM
hydrashocker's Avatar
hydrashocker hydrashocker is offline
Hall Of Fame

Join Date: Jun 2005
Vehicle: 99' Ram 2500 V-10 Sport QC 4X4
Location: GJ, Colorado
Posts: 14,214
Default Rear Axel Speed Sensor / Rear ABS Sensor DIY

This will cover the instructions on how to replace the Speed Sensor/ABS Sensor located on the top of the rear differential. Most common side effect of no Speedometer and ABS illuminated light in the instrument cluster on the dash board. This is a very easy repair.

Disconnect the upper electrical harness if the new sensor comes with a new extension. If the sensor did not come with on (as mine did) then disconnect the harness at the sensor.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

2. Using a 1/2" deep socket remove the nut holding the sensor in.

Click the image to open in full size.

Click the image to open in full size.

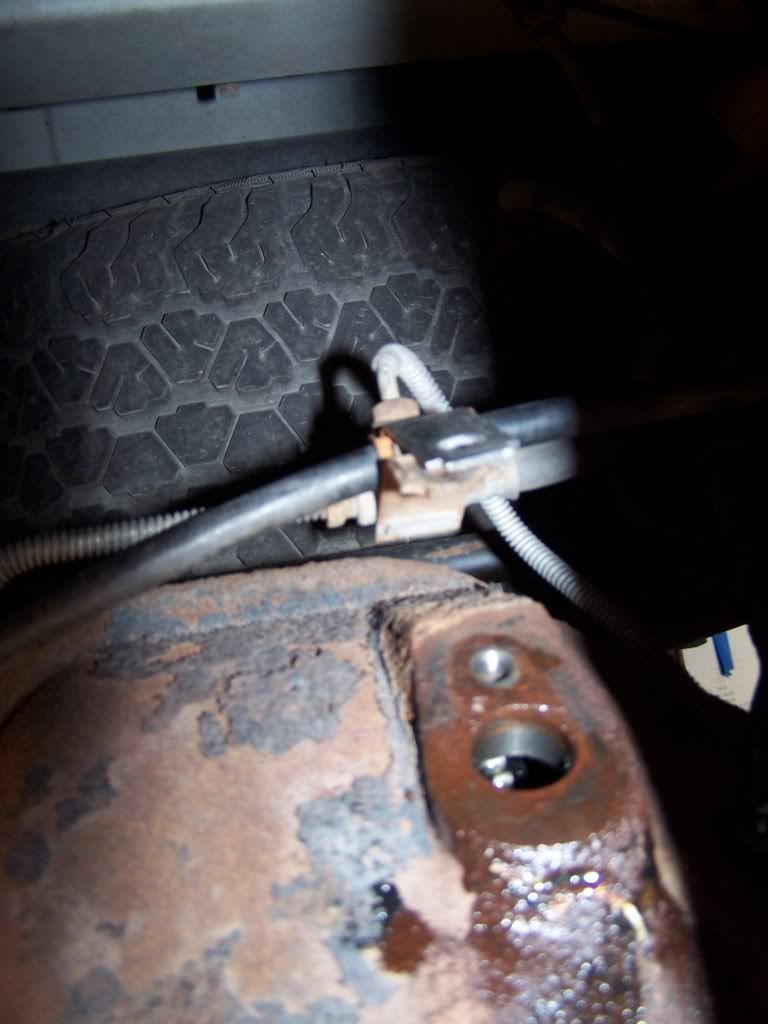

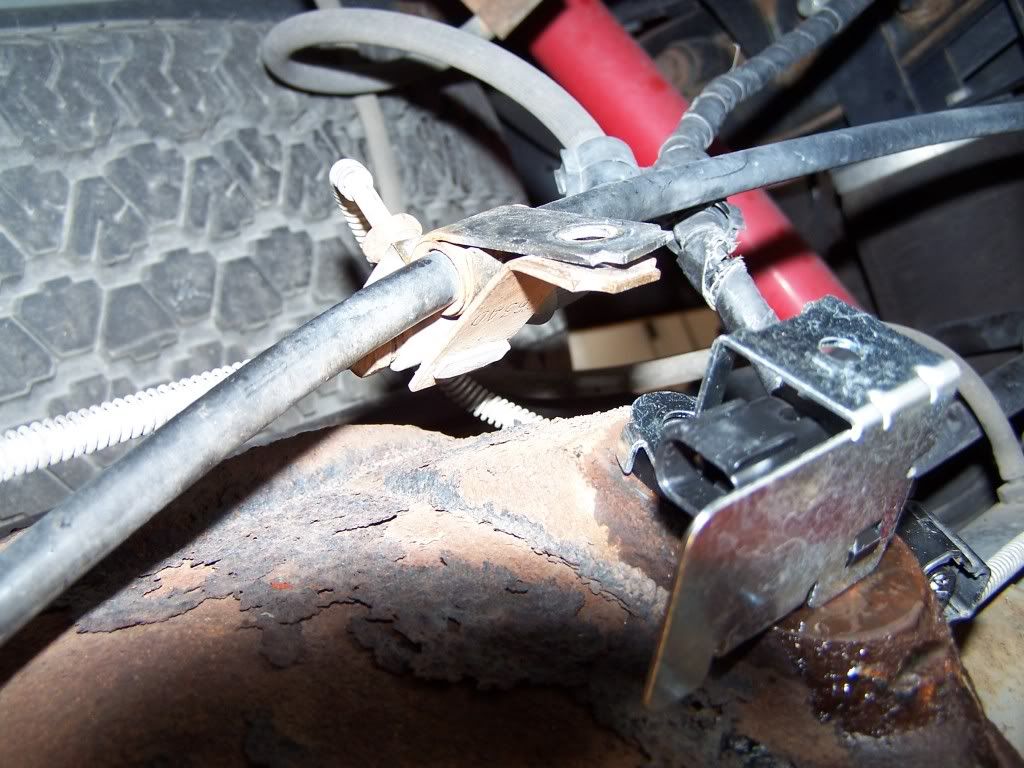

3. Next pull out the emergency brake cable clasp and brake line clasp out of the sensor cover. These are tabbed so grasp the back side of them and pull up slightly then pull the front side out. Tip the clasps out of the way (straight up).

Click the image to open in full size.

Click the image to open in full size.

4. Place a 9/16" deep socket down the bolt shaft to contact the 2 sided bolt nut at the bottom. Remove this bolt.

Click the image to open in full size.

5. Pull the sensor cover off the sensor. On the front of the sensor there is a little tab so pull slightly while removing.

Click the image to open in full size.

Click the image to open in full size.

6. Clean loose dirt and rust off area before removing the sensor so nothing falls into the differential contaminating the fluid.

Click the image to open in full size.

Click the image to open in full size.

7. Twist the sensor and then wiggle it back and forth while pulling it straight up.

Click the image to open in full size.

Now it's reinstall time. Remember to lubricate the seal on the new sensor with fresh gear oil and lubricate the whole in the top of the differential before installation.

Installation is in reverse order and just snug the bolt to about 35 lbs and nut to about 25 lbs.
