Multiple Electrical issues
#21
#22
If you don't have power going out to the amps, (verify this AT the head unit) need to verify that all the wires coming IN to the radio that should be powered, are indeed powered.
if you have power coming out of the head unit, but, not making it to the amps, time to trace wires, and see where the break is.
if you have power coming out of the head unit, but, not making it to the amps, time to trace wires, and see where the break is.
#23
If you don't have power going out to the amps, (verify this AT the head unit) need to verify that all the wires coming IN to the radio that should be powered, are indeed powered.
if you have power coming out of the head unit, but, not making it to the amps, time to trace wires, and see where the break is.
if you have power coming out of the head unit, but, not making it to the amps, time to trace wires, and see where the break is.
I'm not the smartest and all this wiring problems are proving to be pretty tough. Just saying sorry now in case I am now or I if I do start repeating myself.
#24
Was the other head unit an infinity system as well? If it was, chances are the radio itself is ok, and the problem is further down stream. All the speaker amps get power from the exact same place. From the head unit, to the choke, out to the speakers. If you have power coming out of the head unit, next, check for power coming out of the choke, AT the choke.
#26
Was the other head unit an infinity system as well? If it was, chances are the radio itself is ok, and the problem is further down stream. All the speaker amps get power from the exact same place. From the head unit, to the choke, out to the speakers. If you have power coming out of the head unit, next, check for power coming out of the choke, AT the choke.

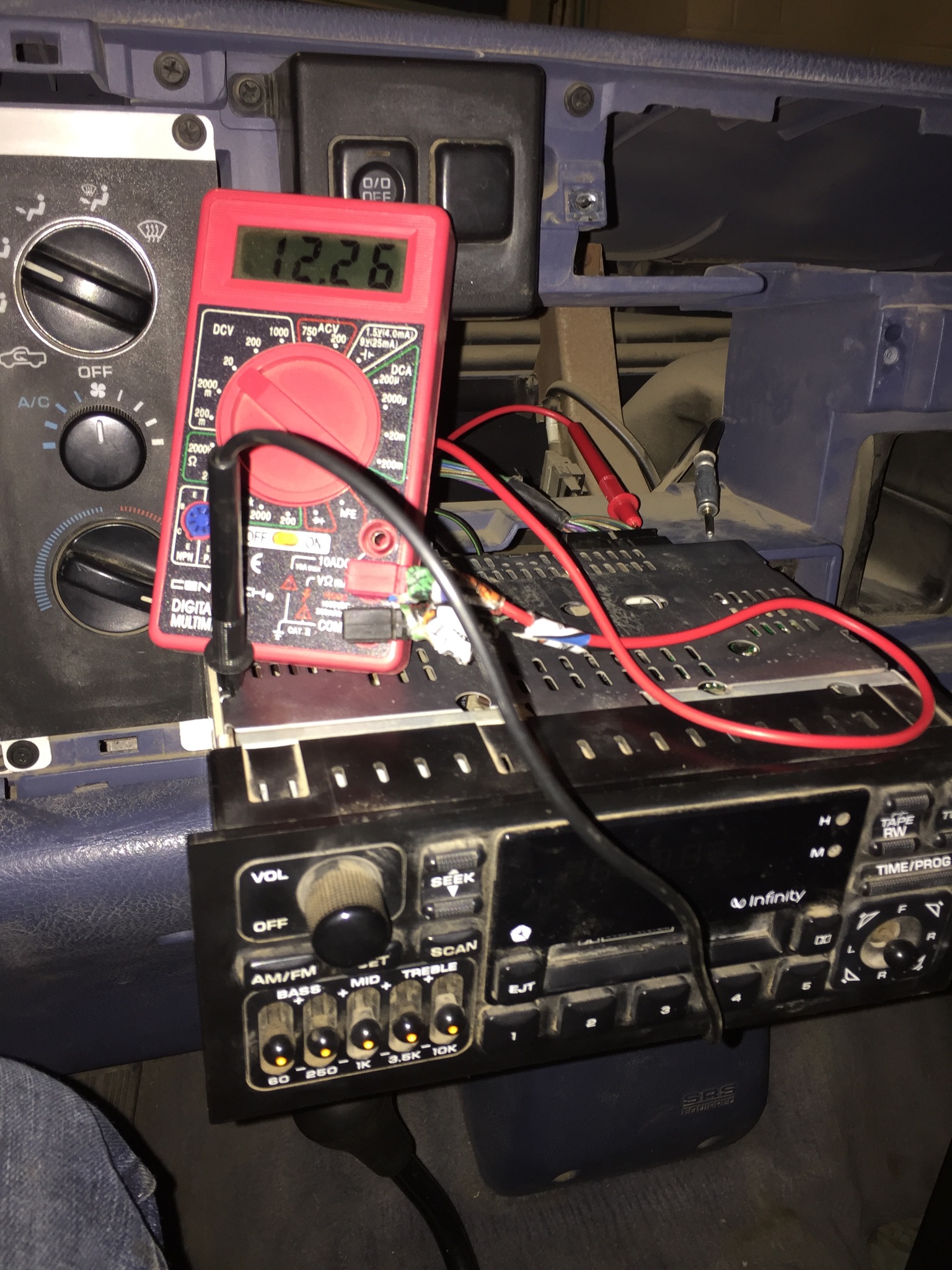

There's a pic of those leds i keep mentioning, and there is the reading on the meter.
On top of having 12 going out, I have about .5 volts going out to all the speakers. Not sure I find that means anything.

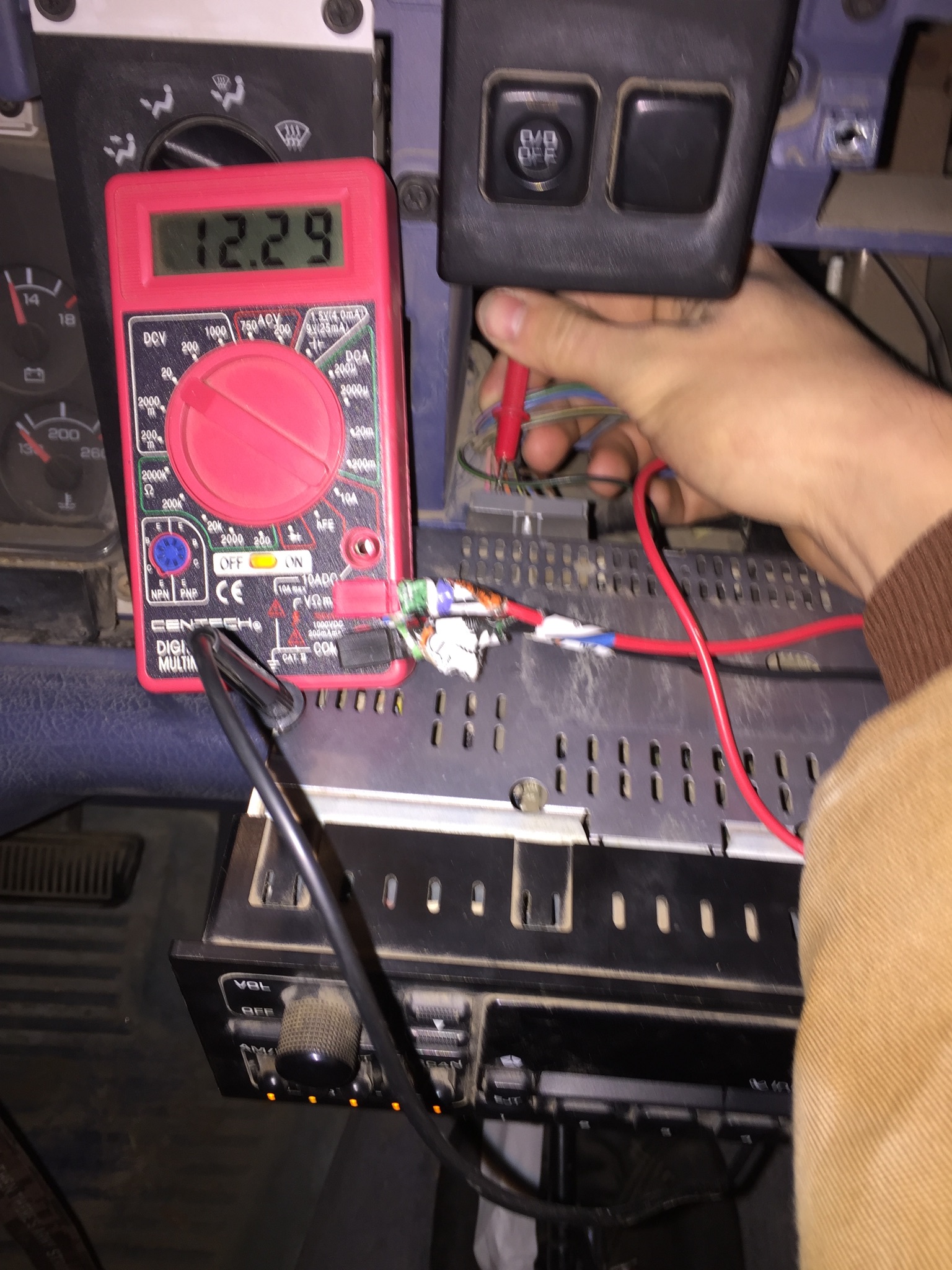

There's a picture of all time 12 volt coming in for memory, and 12 volt in run and acc. positions on the key.

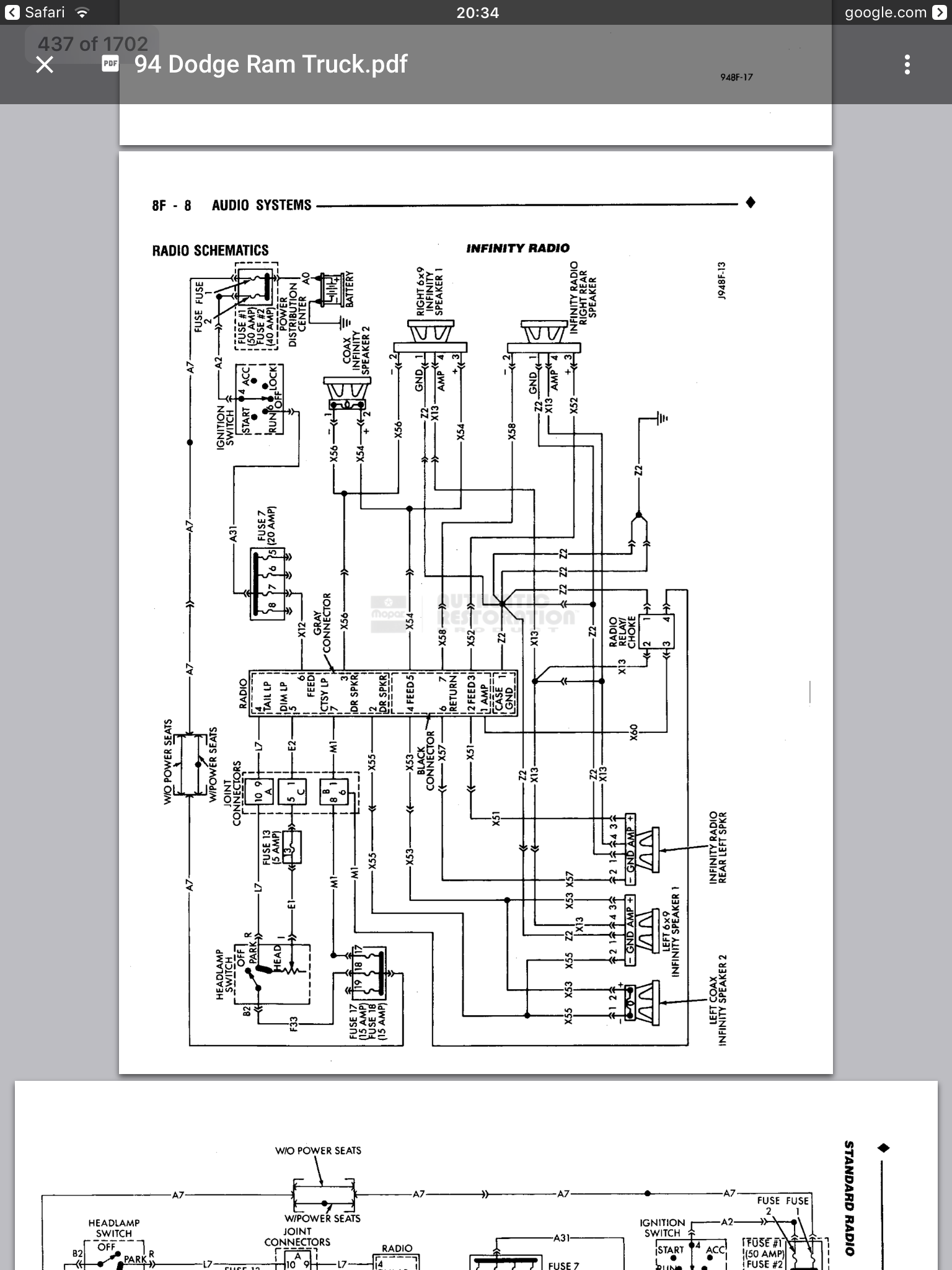

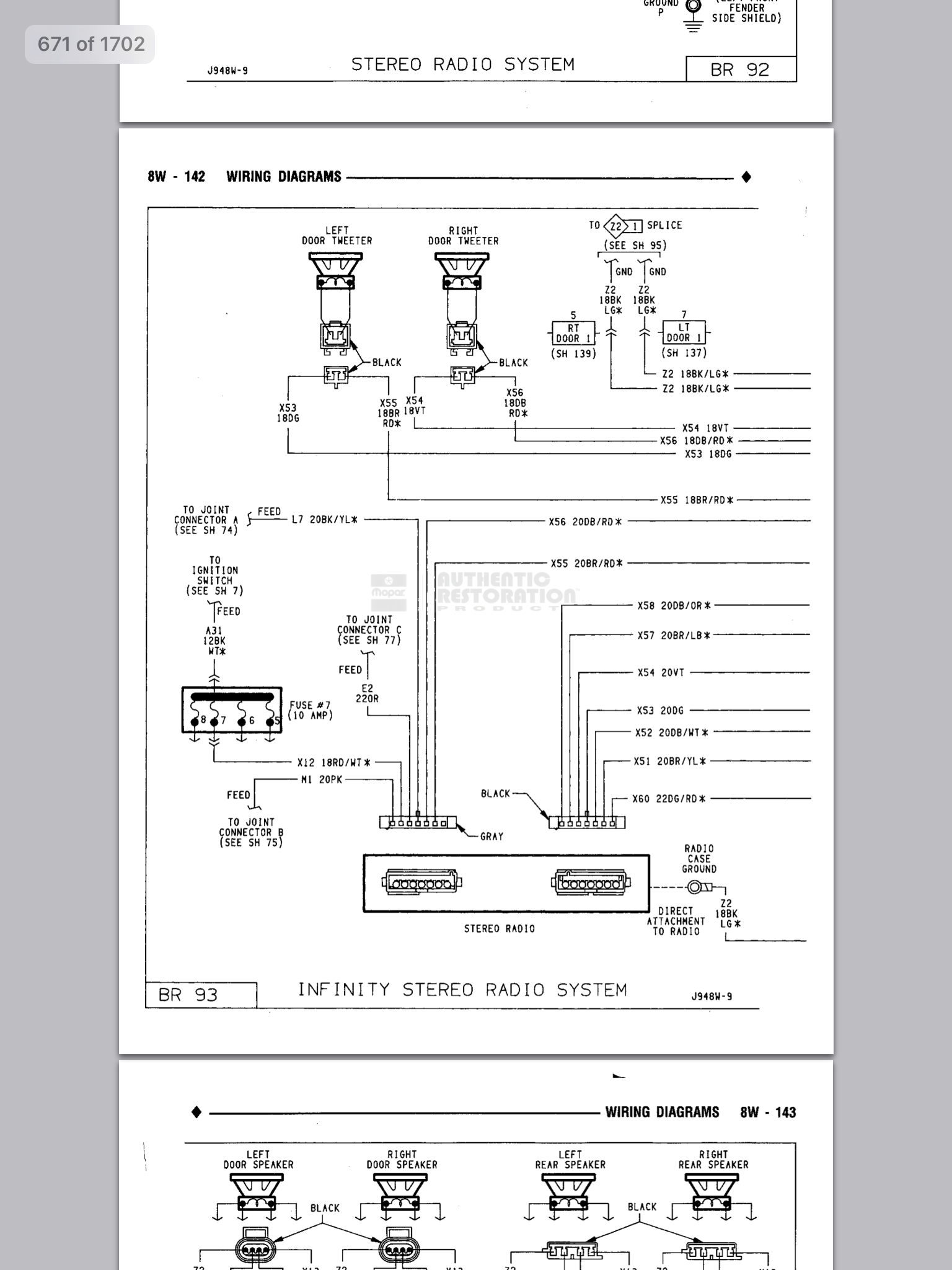

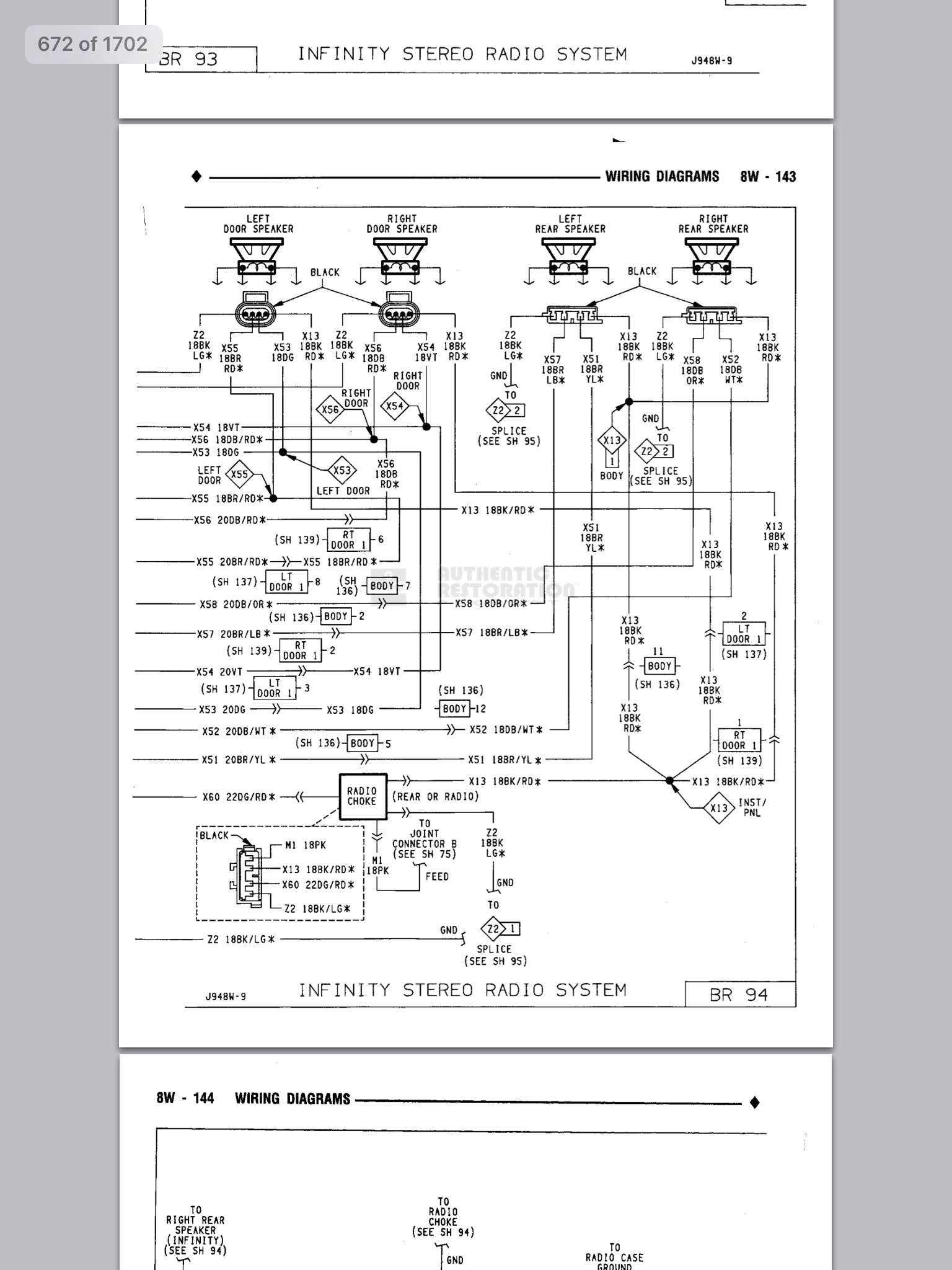

1. Looks like I have power going where it should. Next step you said is the choke. I have no clue where that is. It says center support??

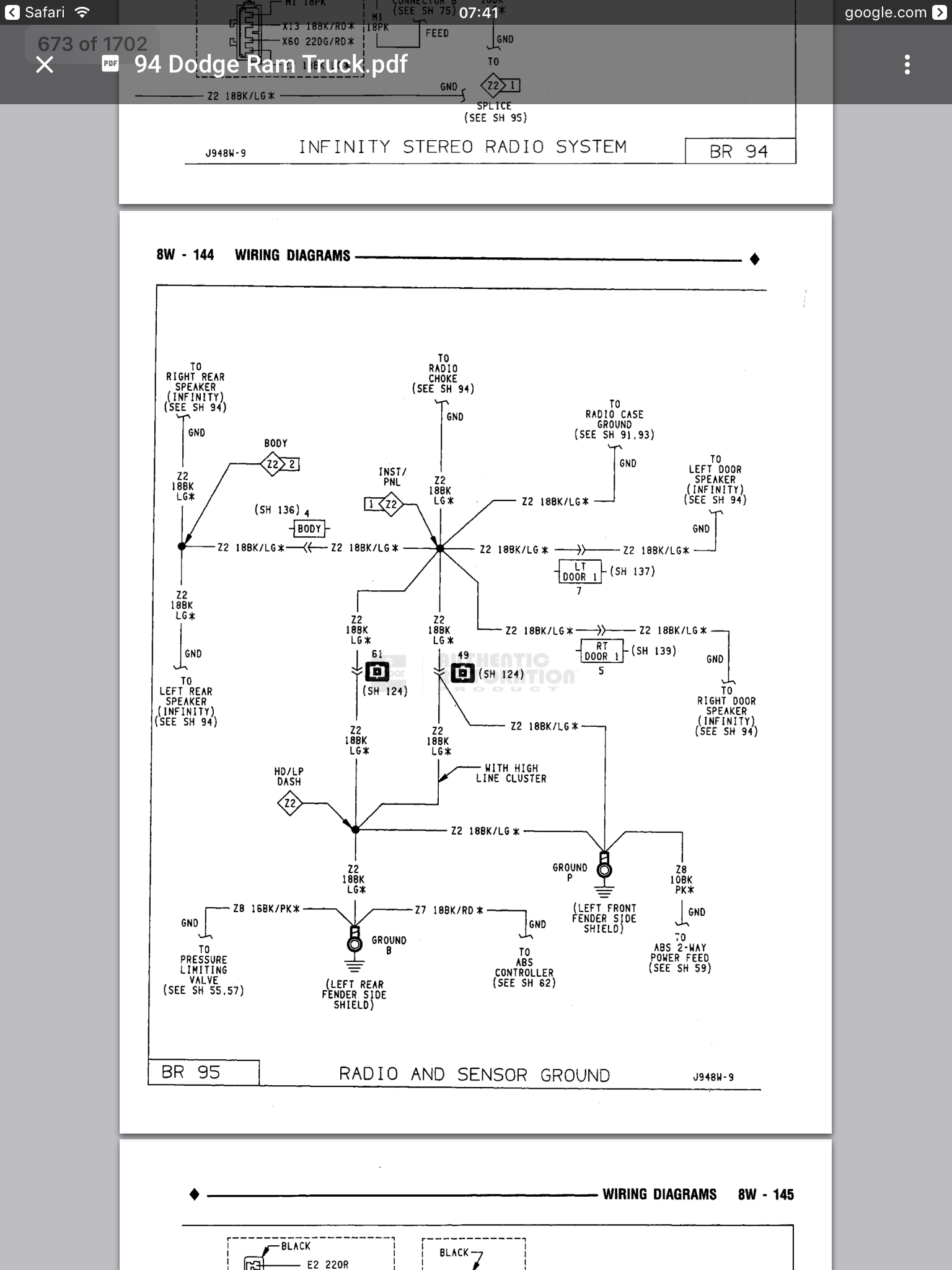

2. Where is ground B located?
Also I'll be getting a video of the noise I'm hearing when the radio turns on and off.
#27
Here are the videos.
This one you can see the lights going on and off when turning the ignition to acc and back off again. If you listen close you can hear the sound right when those light shows start to fade
This second one is of the sound, i put it right next to the speaker.
I get these sounds when turning the ignition off, but only when those little orange lights are on.
This one you can see the lights going on and off when turning the ignition to acc and back off again. If you listen close you can hear the sound right when those light shows start to fade
This second one is of the sound, i put it right next to the speaker.
I get these sounds when turning the ignition off, but only when those little orange lights are on.
#28
Then the other head unit wasn't a valid test. While the connectors may have been the same, the 'stockish' head unit won't be powering the amps, therefore, they simply will not work. With the volume cranked all the way up, you *might* hear something.... But, I doubt it. Either that, or it would smoke the speakers... The amps aren't expecting a full power input.
See if you are putting power out TO the amps. That is what you need to look at next.
See if you are putting power out TO the amps. That is what you need to look at next.
#29
Then the other head unit wasn't a valid test. While the connectors may have been the same, the 'stockish' head unit won't be powering the amps, therefore, they simply will not work. With the volume cranked all the way up, you *might* hear something.... But, I doubt it. Either that, or it would smoke the speakers... The amps aren't expecting a full power input.
See if you are putting power out TO the amps. That is what you need to look at next.
See if you are putting power out TO the amps. That is what you need to look at next.
So I test that from the radio choke to see if I'm getting voltage to the amps? And where would the radio choke be?
Or I'm just completely confuzzled. Probably this option.
Last edited by CJSuhr; 11-30-2016 at 10:26 PM.
