Hemi Swap Complete - 2002 4.7 to 2003 5.7

Reply




Thread Tools Search this Thread
  #1
Old 03-07-2011, 12:16 PM
T-Muns T-Muns is offline
Veteran

Join Date: Oct 2010
Vehicle: 2002 Dodge Ram 1500 5.7 HEMI
Location: MD
Posts: 326
Default Hemi Swap Complete - 2002 4.7 to 2003 5.7

My 4.7 kicked the bucket so I chose to put a hemi in its place. The hemi swap is complete and the truck runs pretty good. It took about 3 months or so, doing a little after work and on the weekends. The holidays made things difficult with much to do. I did this outside in the driveway in the middle of winter in western maryland (truck won't fit in the garage). We got a few feet of snow over this time as well as really cold temps and crappy winds.

I did a lot of research before I bought the hemi. I read damn near every post in this forum and others that contained the words "hemi", "swap", etc. I also got help from 2 guys in this forum. The only oversight I had was the exhaust. I doubted that my 4.7 Y pipe would work out with the hemi manifolds, but it wasn't a show stopper and deep down I wanted headers anyway. They were cheaper than an aftermarket Y pipe/cat assmembly for the 03 hemi, so that was a pretty easy decision. If I didn't go with headers, I could've had a shop fab something.

The most time was spent doing research, waiting for parts, and cleaning up/painting the engine before install. I made sure the junkyard was going to give me everything I needed. However, the junkyard sales guy had a lot less time to talk to me after I paid them. They cut things they were supposed to save, left out some parts, and took FOREVER. I spent more time dealing with these a$$holes than I did the install. Long story short, they paid me for all of the new parts I had to buy plus some, so it turned out ok. And the sales guy was fired for promising me and others too much!

Parts needed for 2002 4.7 -> 2003 5.7
2003 hemi engine w/ accessories - I realize the 03 isn't the best for tuning and has possible valve spring issues, but I was looking for ease of install. I can always go to a 2004 wiring harness later for tuning. I also plan to do the valve springs this summer when it warms up.
PCM + TCM
Both engine mounts
Both Radiator Hoses
AC Hoses - Need both hoses coming from the compressor. The alt/compressor switch sides from the 4.7 to the 5.7 so the lengths are different. I kept the same condenser and accumulator.
Heater Hoses - I bought 2 bulk pieces of heater hose to flush my heater core prior to the swap. I cut them to size to use with the hemi. I will eventually replace them with right ones that are curved appropriately so it doesn't look so ghetto.
APPS - Accelerator Pedal Position Sensor. If you didn't know, this is a little box that mounts under the battery. It has a throttle cable that is connected to the gas pedal and an electrical cable that runs to the PCM. 4.7 had a cable straight to the throttle body.
Air intake - I think the stock airboxes are different, but I'm not sure. I made a CAI from PVC anyway so I just pulled the 4.7 airbox assembly.
Fuel line - Hemi came with a good bit of the fuel line. All we had to do is get a compression fitting to attach it to the one on the truck.
Exhaust - I ended up going with Pacesetter longtube headers + Y pipe (no cats), so the exhaust is new from front to back. Trying out a 3" in/out Thrush welded stainless steel muffler. It was about $40 and think it sounds great.
No SKIM system - I made sure the PCM I was getting didn't have the ignition key security system. As I understand, a $100 and 1 week turn around will take care of this by sending it to a dude to flash it, but I was looking to save dough and time.

I put a new water pump on it just because. Also new pullies, belt, valve cover gaskets, intake manifold gaskets, oil pan & gasket, and I ditched the fan clutch because I already had an e-fan setup. Lots of wire brushing and a little hemi orange paint.

Wiring
Since the 02 4.7 and 03 5.7 both use the C130 plug into the dash, there are minimal differences. I did not have a wiring nightmare like some others, which is why I opted for the 2003. I had to run 6 wires for the APPS and change up the ambient air temperature sensor circuit. I still might have to cross a few other wires, but nothing too major. I have an Evap CEL P0443 that was there before the swap. I think it is the purge solenoid, but not totally sure. My vapor canister is busted up too, but I tried to duct tape it for the time being. Otherwise, I have P0593 Cruise and P0571 Brake Switch A circuit which I will explain below.

Problems
* Cruise Control - 02 4.7 uses a vacuum/servo for cruise. 5.7 is completely electronic. To solve this, I may or may not need new cruise control buttons on the steering wheel. (I had a 2003 clockspring so the buttons might be ok). After that, I just need to get the extra wire back to the PCM. I don't use cruise anyway, so this is not a priority.
* Brake Lights - This is a bigger issue. The tail stop lights are always on when the truck is "on" or running. Brake switch is good, it works perfectly when the truck isn't on. 3rd brake light works well all the time since it is hard wired to the switch and isn't on the same circuit as the tail stops. Maybe completing the cruise circuit will help this issue, not sure yet. I think the FCM is outputting the signal to the lights for some reason.

Otherwise, truck runs good, shifts good, and for the most part, everything works. All of my gauges, lights, and interior controls still work. Thanks to VLSGunner1 & HemiDak-Quad for helping me out. Also to berndog67 for a good thread full of info and to Weedahoe for the service manuals and part catalogs.
Sorry for the super long post. Hopefully it will help someone out.

Pics are mostly crappy phone pics. I wanted to get more pictures, but I was freezing my ace off and trying to make progress. I will upload pics of the engine installed and the actual truck soon. My CAI is still white PVC so I'll get that painted first.

Update 5/2/2011
- Figured out the brake light issue. V30 on the brake switch went to the cruise servo in the 2002 4.7. In 2003 5.7, it just needs to splice into Y135 (FUSED IGNITION SWITCH OUTPUT (RUN-START)) before the I/P -> Dash connector (C219). Brake lights work correctly now
- Cruise Control almost solved. Found cruise switches from a 2003 hemi truck. They have 3 wires instead of 2 like mine had. The 3rd wire on each switch get spliced together, then sent through the clockspring on their way back to the PCM as V38. I added the 3rd wire to the wiring harness in the steering wheel and soldered new connectors to mate it all up. It still doesn't work, but I'm going to look at the diagrams some more and see what I need to do to figure it out.
- I also decided to upgrade the evap stuff to NGC. Got a used Evap Purge Solenoid and wired it up to get rid of the P0443 code I had. I also just got the newer NVLD pump to replace my Leak Detection Pump. Pretty much the same thing, but it has one less pin. I will get it installed tomorrow. At that point I should be CEL free.

PICS

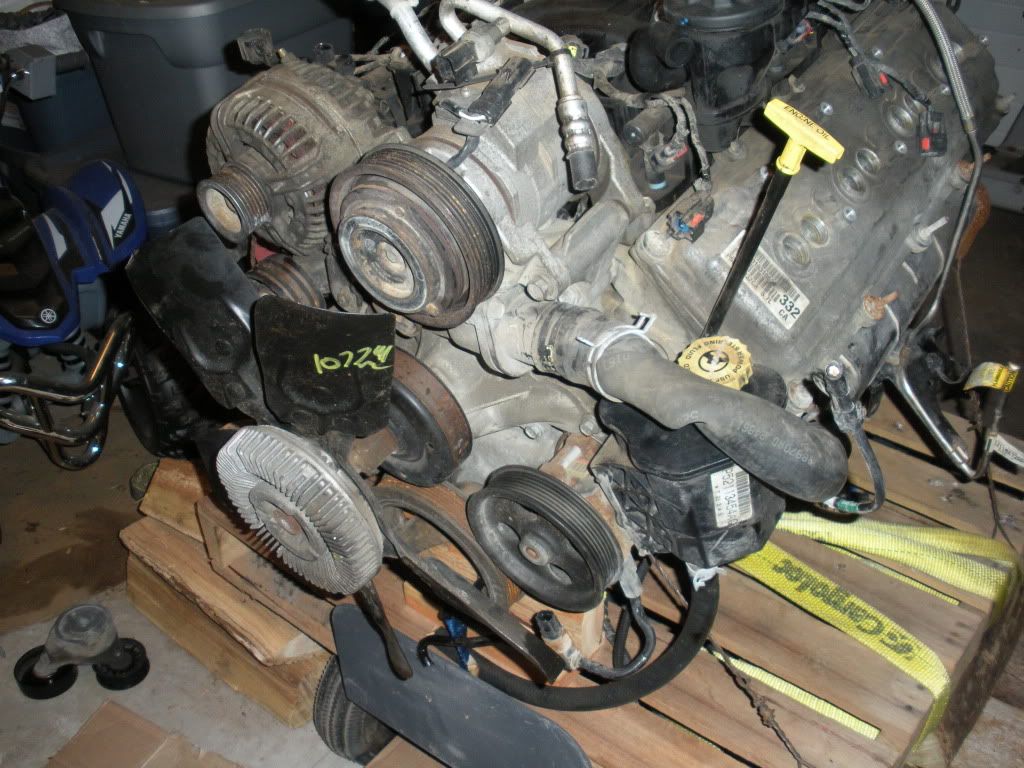

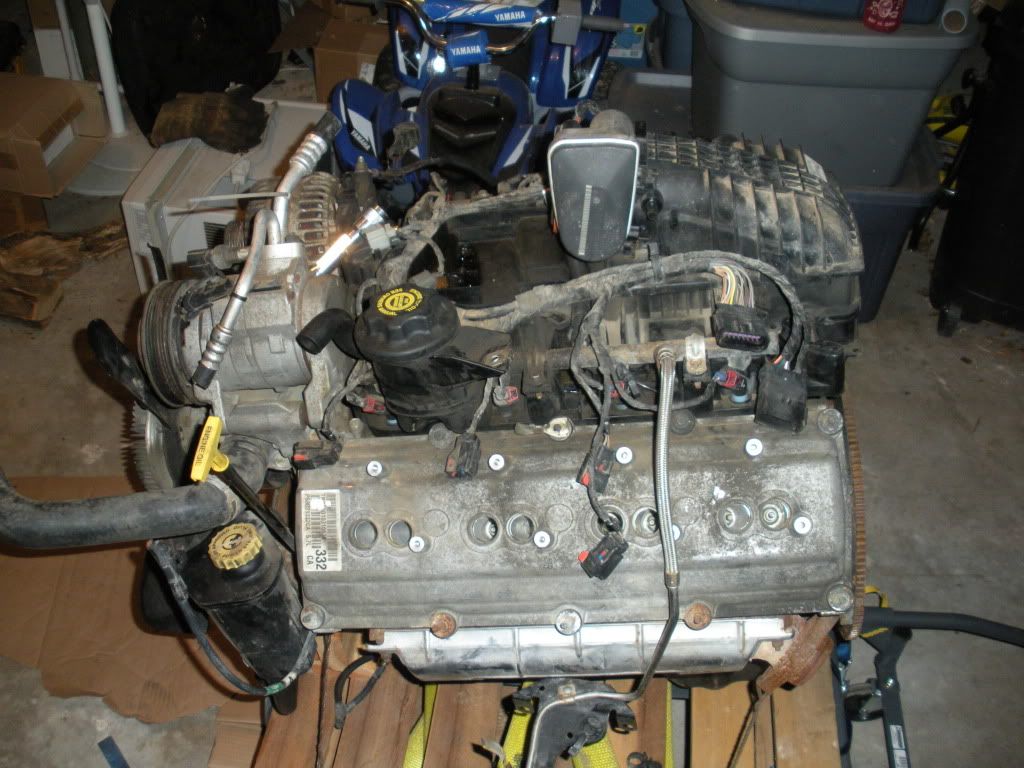

Engine came with some oxidation, but we got it cleaned up pretty good
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

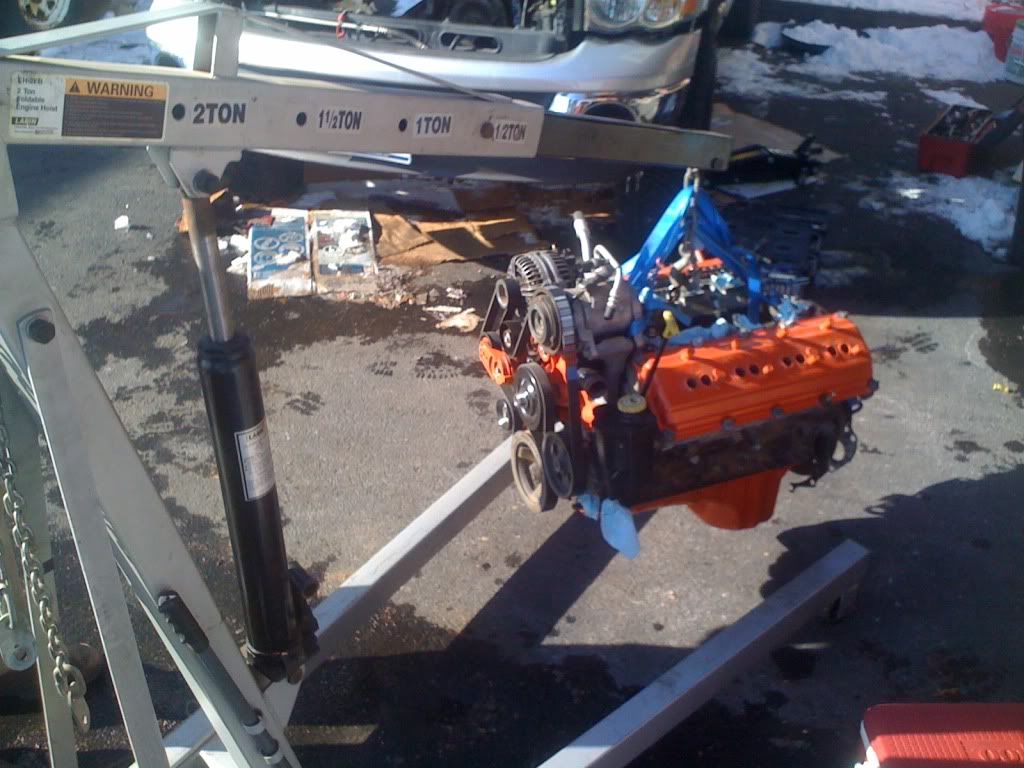

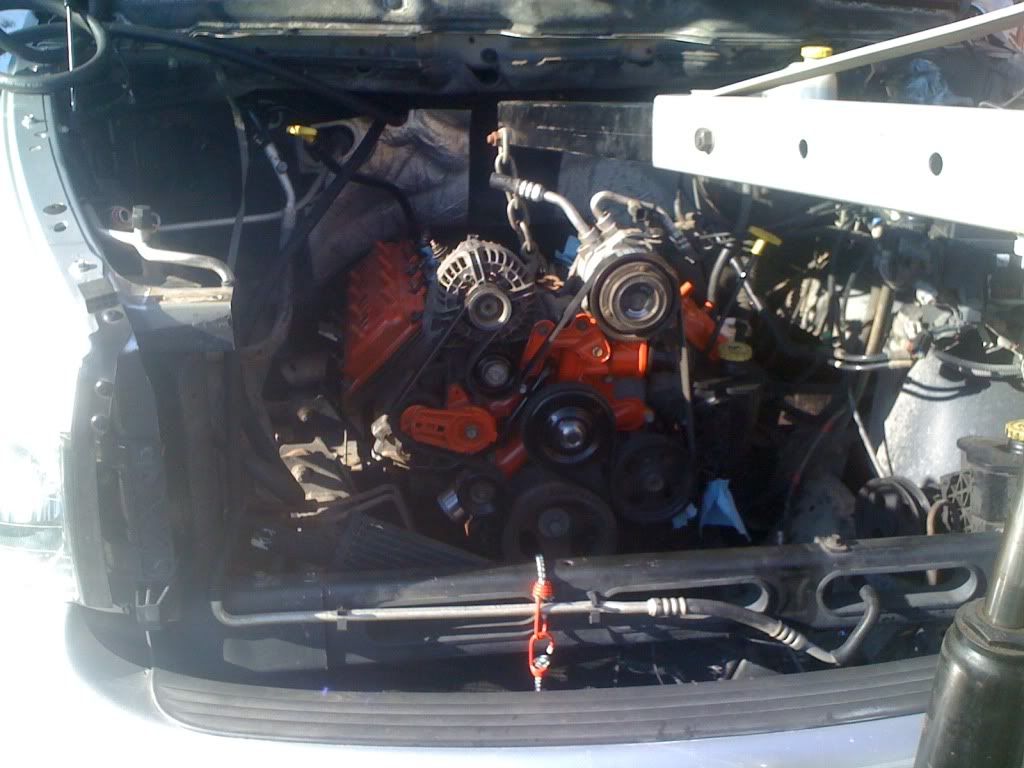

Had some time while waiting for parts, so I got a little hemi orange on it. Here we just put it on the hoist and are taking it outside to drop in.
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

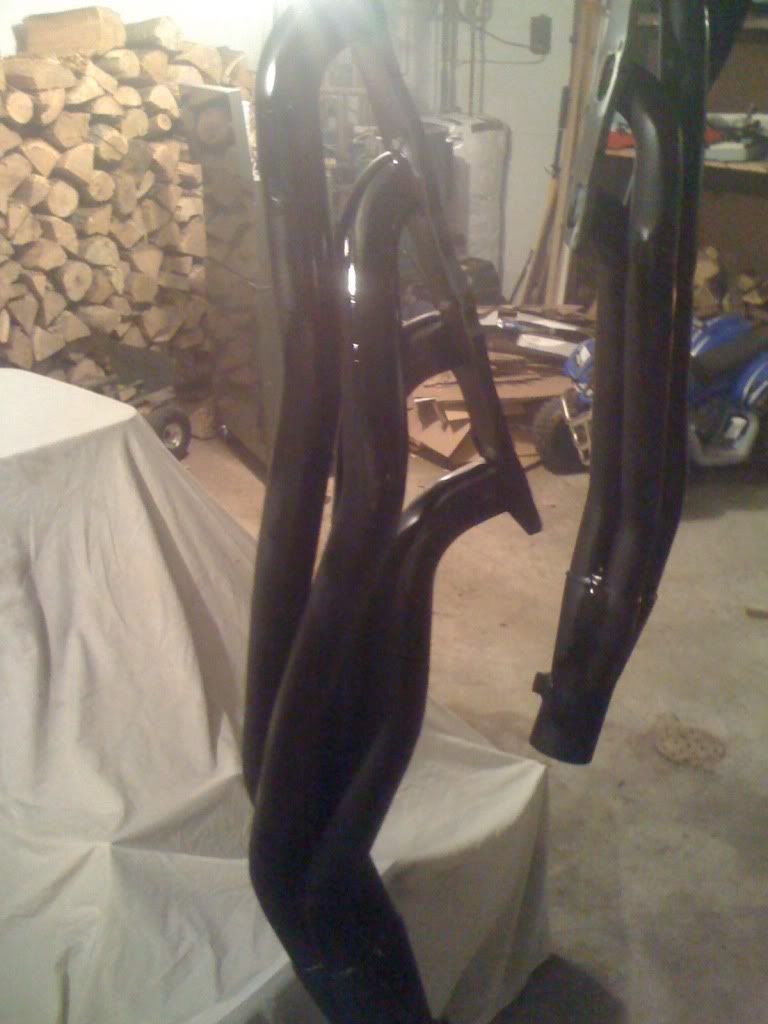

VHT header paint inside and out...wanted coated ones but had to cheap out
Click the image to open in full size.
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on Dodge Forums!
__________________
2002 1500 5.7 Hemi Swap SLT 4x4 RCLB
4.56 Gears, DTT, 3" Body Lift, 295/65/20 Nitto Trail, Firestone Airbags, 180 T-stat, e-fan, Superchips 3865, Homemade CAI, Power wire
Pacesetter LT headers + Y pipe, 3" Magnaflow

Last edited by T-Muns; 01-02-2013 at 02:33 PM..
Reply With Quote
  #2
Old 03-07-2011, 12:26 PM
Denniss66 Denniss66 is offline
Veteran

Join Date: Jul 2006
Vehicle: 2003 Dodge Ram
Location: Regina, Saskatchewan
Posts: 493
Default

Great work man hope you sort out your two little problems soon. the engine looks sweet painted up.
__________________

-Dodge Ram 1500 5.7L QC 4X4-
-Superchips, Magnaflow Exhaust, K&N air filter, Electric Fan Swap-
-20" Detata Crossblack Rims, Truxedo Low Pro Toneau Cover, And Lots Of Chrome-
Reply With Quote
  #3
Old 03-07-2011, 05:26 PM
T-Muns T-Muns is offline
Veteran

Join Date: Oct 2010
Vehicle: 2002 Dodge Ram 1500 5.7 HEMI
Location: MD
Posts: 326
Default

Quote:
Originally Posted by Denniss66 View Post
Great work man hope you sort out your two little problems soon. the engine looks sweet painted up.
Thanks man!
__________________
2002 1500 5.7 Hemi Swap SLT 4x4 RCLB
4.56 Gears, DTT, 3" Body Lift, 295/65/20 Nitto Trail, Firestone Airbags, 180 T-stat, e-fan, Superchips 3865, Homemade CAI, Power wire
Pacesetter LT headers + Y pipe, 3" Magnaflow
Reply With Quote
  #4
Old 03-07-2011, 05:32 PM
JDG103's Avatar
JDG103 JDG103 is offline
Veteran

Join Date: Dec 2010
Vehicle: 2002 1500 QC 4x4 5.9 360 Magnum
Location: Fort Hood, TX
Posts: 431
JDG103
Send a message via Yahoo to JDG103
Default

looks good...im loving the beer in one of the pics
__________________


"You can fix ANYTHING with Duct tape"
Reply With Quote
  #5
Old 03-07-2011, 05:33 PM
HammerZ71's Avatar
HammerZ71 HammerZ71 is offline
Administrator
Dodge Forum Administrator

Join Date: Jul 2007
Vehicle: 2014 2500 CTD 4x4
Location: South Georgia/East Florida
Posts: 23,907
Default

GREAT JOB!!! You don't know how many headaches you averted by using an '03 instead of an "04+ Hemi... err maybe you do... LOL...
Reply With Quote
  #6
Old 03-07-2011, 07:18 PM
HemiLonestar's Avatar
HemiLonestar HemiLonestar is offline
Champion

Join Date: Nov 2005
Vehicle: 2003 Ram 1500 Lonestar Edition & 2006 Dodge Charger R/T
Location: MD
Posts: 2,892
Send a message via AIM to HemiLonestar Send a message via MSN to HemiLonestar Send a message via Yahoo to HemiLonestar
Default

Outstanding! Congratulations, I'm going to send this to someone I work with who has a high mileage 02 w/4.7.
__________________

2006 Charger R/T & 2003 Ram 1500 QC Hemi Lonestar Edition "Big Red"
SRT-10 suspension and rear, Superchips, AiRaid, Taylor shorties, McGaughy's shackles, Borla cat-back, SRT hood, TMR delete, Daytona lip, tow mirrors.
Reply With Quote
  #7
Old 03-07-2011, 07:34 PM
chefred112's Avatar
chefred112 chefred112 is offline
All Star

Join Date: Mar 2005
Vehicle: 05 Hemi QC
Location: Tracy, CA
Posts: 752
Send a message via Yahoo to chefred112
Default

great job brutha...by bro in law is doing a hemi swap into a dak and he's in that research mode now...
__________________
--one quick 05 Hemi QC 1500 with over 200k miles on odo--
Reply With Quote
  #8
Old 03-08-2011, 11:07 AM
weedahoe's Avatar
weedahoe weedahoe is offline
Site Moderator
Dodge Forum Moderator

Join Date: Mar 2009
Vehicle: 04 Dodge Ram QC
Location: South GA
Posts: 18,967
TrickedOut DodgeRam Weedahoe1977
Send a message via AIM to weedahoe Send a message via MSN to weedahoe Send a message via Yahoo to weedahoe
Default

Excellent job and THX for the pics. Im taking my 04 PCM and harness off soon if you are interested.
Reply With Quote
  #9
Old 03-08-2011, 12:05 PM
T-Muns T-Muns is offline
Veteran

Join Date: Oct 2010
Vehicle: 2002 Dodge Ram 1500 5.7 HEMI
Location: MD
Posts: 326
Default

Quote:
Originally Posted by JDG103 View Post
looks good...im loving the beer in one of the pics
Thanks...Ha, yeah I forgot to mention budweiser in the parts list!

Quote:
Originally Posted by HemiLonestar View Post
Outstanding! Congratulations, I'm going to send this to someone I work with who has a high mileage 02 w/4.7.
Thanks! Cool, I was hoping someone will get something useful out of this experience

Quote:
Originally Posted by HammerZ71 View Post
GREAT JOB!!! You don't know how many headaches you averted by using an '03 instead of an "04+ Hemi... err maybe you do... LOL...
Quote:
Originally Posted by weedahoe View Post
Excellent job and THX for the pics. Im taking my 04 PCM and harness off soon if you are interested.
Thanks guys! Yeah Hammer the swap was a big enough project, I didn't want to add a wiring nightmare and more time . Weed - I will eventually want that, but honestly I'm probably a year away! Just bought 4.56 gears (4x4) and getting them installed probably next week. So with the engine swap, gears, and the little cosmetic things I need do, I need to cut the truck spending for just a little while.

I'm also thinking I'd like to actually drive the truck for a little bit before another major mod.
__________________
2002 1500 5.7 Hemi Swap SLT 4x4 RCLB
4.56 Gears, DTT, 3" Body Lift, 295/65/20 Nitto Trail, Firestone Airbags, 180 T-stat, e-fan, Superchips 3865, Homemade CAI, Power wire
Pacesetter LT headers + Y pipe, 3" Magnaflow
Reply With Quote
  #10
Old 03-08-2011, 01:05 PM
weedahoe's Avatar
weedahoe weedahoe is offline
Site Moderator
Dodge Forum Moderator

Join Date: Mar 2009
Vehicle: 04 Dodge Ram QC
Location: South GA
Posts: 18,967
TrickedOut DodgeRam Weedahoe1977
Send a message via AIM to weedahoe Send a message via MSN to weedahoe Send a message via Yahoo to weedahoe
Default

Man, with a new engine and new lower gears you will have a whole different beast on your hands
Reply With Quote
  #11
Old 03-08-2011, 03:41 PM
T-Muns T-Muns is offline
Veteran

Join Date: Oct 2010
Vehicle: 2002 Dodge Ram 1500 5.7 HEMI
Location: MD
Posts: 326
Default

Quote:
Originally Posted by weedahoe View Post
Man, with a new engine and new lower gears you will have a whole different beast on your hands
Oh yeah! Especially since I have 3.55s right now. I still have to try out the SC performance tune with the hemi too. It made a noticeable difference with the 4.7. Also gonna do a power wire....exciting stuff.
__________________
2002 1500 5.7 Hemi Swap SLT 4x4 RCLB
4.56 Gears, DTT, 3" Body Lift, 295/65/20 Nitto Trail, Firestone Airbags, 180 T-stat, e-fan, Superchips 3865, Homemade CAI, Power wire
Pacesetter LT headers + Y pipe, 3" Magnaflow
Reply With Quote
  #12
Old 03-29-2011, 10:40 PM
HemiDak-Quad HemiDak-Quad is offline
Captain

Join Date: Jan 2010
Vehicle: Dodge
Location: South Carolina
Posts: 654
Send a message via Yahoo to HemiDak-Quad
Default

Hey T- Hows the truck doin'..
Reply With Quote
  #13
Old 03-29-2011, 10:47 PM
HemiDak-Quad HemiDak-Quad is offline
Captain

Join Date: Jan 2010
Vehicle: Dodge
Location: South Carolina
Posts: 654
Send a message via Yahoo to HemiDak-Quad
Default

What did you have to do to make the headers work, Or did they fit good ?
Reply With Quote
  #14
Old 03-30-2011, 08:31 AM
T-Muns T-Muns is offline
Veteran

Join Date: Oct 2010
Vehicle: 2002 Dodge Ram 1500 5.7 HEMI
Location: MD
Posts: 326
Default

Quote:
Originally Posted by HemiDak-Quad View Post
Hey T- Hows the truck doin'..
Quote:
Originally Posted by HemiDak-Quad View Post
What did you have to do to make the headers work, Or did they fit good ?
Truck is doing pretty good, although I haven't done anything to it in over 2 weeks. It's been at a shop getting gears installed since 3/14. I'm finding that this place is a smaller operation and main guy is in and out alot. Ugh! They're telling me it should be ready today so we'll see. As long as it's done right, I'm not going to complain.

I had no more issues than anyone else with these headers. Had to cut a piece of the trans off on the passenger side and bolt beside the egr hole didn't line up. Although, the pacesetter Y pipe is kinda rubbing against the transfer case on the driver side. Dunno if I should just try to pull the whole thing back about 1/2 inch or something. I was trying to avoid leaks so I put it in as far as I can. I didn't see anyone else having this issue, but I don't think I have anything different as far as transfer case goes.

One thing that really irritates me is that Amazon is selling the pacesetter coated headers right now for $278! They were $100+ that when I bought mine (and $425 at moes). Oh well, we'll see how long the vht paint lasts for me.


Definitely going to figure out those brakes and cruise as soon as I find the time!
__________________
2002 1500 5.7 Hemi Swap SLT 4x4 RCLB
4.56 Gears, DTT, 3" Body Lift, 295/65/20 Nitto Trail, Firestone Airbags, 180 T-stat, e-fan, Superchips 3865, Homemade CAI, Power wire
Pacesetter LT headers + Y pipe, 3" Magnaflow
Reply With Quote
  #15
Old 03-30-2011, 12:56 PM
HemiDak-Quad HemiDak-Quad is offline
Captain

Join Date: Jan 2010
Vehicle: Dodge
Location: South Carolina
Posts: 654
Send a message via Yahoo to HemiDak-Quad
Default

When you get cruise working , let me know what you had to do..I still have not figured mine out. Have you thought about bringing you're cross over back some more to the tail shaft..Just an Idea, I don't know exactly where it is now and mine's not 4x4. But that's where I had to run my 2x4 to keep the heat off the transmission..I would like to run both of my pipes out in front of the right rear wheel, and over the frame..
With you're header situation- Would it be better to get stock 6.1 headers..I hear they flow great and will work in tight spots..They are kind of expensive and hard to find for a stock setup..I was thinking about that on mine.
Reply With Quote
  #16
Old 05-03-2011, 12:12 AM
T-Muns T-Muns is offline
Veteran

Join Date: Oct 2010
Vehicle: 2002 Dodge Ram 1500 5.7 HEMI
Location: MD
Posts: 326
Default

UPDATE: 4.56 gears and superchips performance tune installed. Huge difference! Also got the Y pipe away from the transfer case. Just had to make an adjustment with the Y pipes. Also have the 3" exhaust going all the way out the back like stock instead of exiting before the rear wheel. Much quieter in the cab so I'm no longer considering getting cats.

Brake light issue solved and cruise control very close. Also changing evap stuff over to NGC. I added the details to the original post.
__________________
2002 1500 5.7 Hemi Swap SLT 4x4 RCLB
4.56 Gears, DTT, 3" Body Lift, 295/65/20 Nitto Trail, Firestone Airbags, 180 T-stat, e-fan, Superchips 3865, Homemade CAI, Power wire
Pacesetter LT headers + Y pipe, 3" Magnaflow
Reply With Quote
  #17
Old 05-15-2011, 12:45 PM
HemiDak-Quad HemiDak-Quad is offline
Captain

Join Date: Jan 2010
Vehicle: Dodge
Location: South Carolina
Posts: 654
Send a message via Yahoo to HemiDak-Quad
Default

I was traveling through Florida last month towing both my Harleys, A 2004 110ci, Road Glide and a 1997 Softail. A woman pulled out in front of me and totaled my 2001 Hemi powered Dakota Quad Cab and bent the front end on both Harley's. Iv'e been feeling sick and disqusted every since , I spent a year getting that truck like I want it and 3 years building my 04' Road Glide. I just got it back from SLED, they tried to tell me there were stolen parts on it,so they could steel it, They had it for over a year,But couldn't show anything stolen to the judge.SLED is a secret organization of thieves.
ANYWAY-Now I'm searching for a newer model Jeep wrangler to put the 5.7 Hemi into.
Reply With Quote
  #18
Old 05-15-2011, 08:18 PM
lxman1's Avatar
lxman1 lxman1 is offline
Multi-Section Moderator
Dodge Forum Moderator

Join Date: May 2008
Vehicle: 2008 QC Ram BigHorn Hemi
Location: Louisville, Ky
Posts: 9,084
Send a message via AIM to lxman1
Default

Sorry to hear that. Hopefully your next project will turn out even better.
__________________
2008 RAM 1500 Sunburst Orange BigHorn. 5.7L HEMI
Reply With Quote
  #19
Old 05-15-2011, 10:27 PM
T-Muns T-Muns is offline
Veteran

Join Date: Oct 2010
Vehicle: 2002 Dodge Ram 1500 5.7 HEMI
Location: MD
Posts: 326
Default

Bummer about your truck and bikes man! Sucks that you had so much work into it for that to happen. Good luck with your next project.

Update: Evap system changed over to NGC so CEL is gone! Even though the big stuff has been out of the way for a while, getting the CEL to turn off gives a sense of completion.

I thought I had the cruise control figured out. My brother scanned it at work again and got some codes for me. P2161 is the one about the #2 speed sensor circuit.

The hemi uses an additional speed sensor input that comes from the ABS controller and goes back to the PCM. It is supposedly the average of the 2 front speed sensors. The pinout of my ABS controller (2002 4.7) obviously doesn't have that output so I tried to splice the normal speed sensor in its place, but still no cruise.

At this point in time I don't really care. I only really want to solve it for the sake of solving the problem. I don't really use the cruise anyway. I might get my bro to scan it again to see if I can get any more clues some time down the road.

Now back to some cosmetic stuff - light frame rust, undercoating, wheel wells, bed coating, etc. Afterward...manual trans swap
__________________
2002 1500 5.7 Hemi Swap SLT 4x4 RCLB
4.56 Gears, DTT, 3" Body Lift, 295/65/20 Nitto Trail, Firestone Airbags, 180 T-stat, e-fan, Superchips 3865, Homemade CAI, Power wire
Pacesetter LT headers + Y pipe, 3" Magnaflow
Reply With Quote
  #20
Old 05-16-2011, 08:31 PM
lxman1's Avatar
lxman1 lxman1 is offline
Multi-Section Moderator
Dodge Forum Moderator

Join Date: May 2008
Vehicle: 2008 QC Ram BigHorn Hemi
Location: Louisville, Ky
Posts: 9,084
Send a message via AIM to lxman1
Default

The cruise signal comes from the driver side front hub sensor. Mine had to be replaced.
__________________
2008 RAM 1500 Sunburst Orange BigHorn. 5.7L HEMI
Reply With Quote
Old 05-16-2011, 08:31 PM



Reply




Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off

Forum Jump

Join DodgeForum
Advertising

Featured Sponsors
Vendor Directory
Our Sponsors
All times are GMT -4. The time now is 12:36 AM.

Internet Brands, Inc.


Contact Details & Emails
