DIY-Radiator Replacement and mounting of E-Fans
Well I had to replace my radiator as it was beginning to leak so I thought I would post up some pics on how my fans are mounted and maybe help someone out with a small DIY.
[IMG][/IMG]
First things First drain your coolant with the petcock on the bottom of the drivers side of the rad . Remove Cap to help vent drainage .
While this is draining remove coolant overflow and windshield washer bottles.

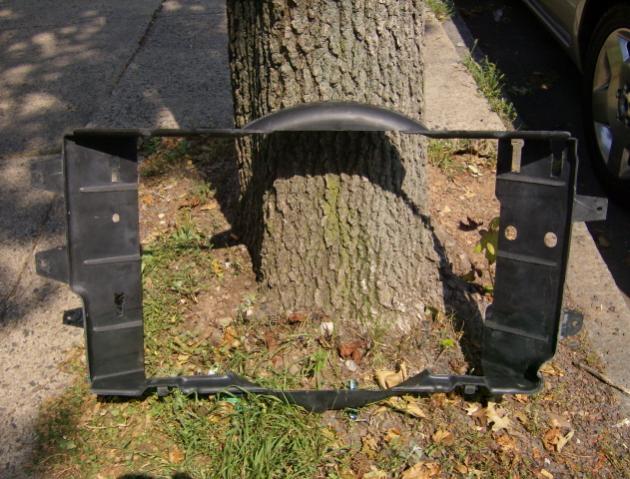

Next Remove shroud ( 4 bolts one in each corner )
[IMG][/IMG]
[IMG][/IMG]
Next Remove top radiator hose followed by the bottom. If you still have the factory Transmission cooler lines hooked to your Radiator you will need a disconnect tool for the lines.
Remove 2 bolts at the top of the radiator and lift it out .
Place new rad inside facing up on a flat working surface .
[IMG][/IMG]
Line up the E-Fans so that the top mounting hole lines up with the small lip at the top of the radiator.
[IMG][/IMG]
Drill a 3/16" hole on each side and thread a bolt through the fan and rad . This will take the weight of the fans .
[IMG][/IMG]
Next use zip tie kit for mounting on four points on each fan and push them between the fins of the rad , flip over and use rubber washers and plastic zip tie ends to pull and hold the fans tightly against the radiator. Cut of the remaining tie.
[IMG]
[/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
Next just install your new Radiator following the steps in reverse . Hope this helps someone out . Cheers !
Here are the wiring instructions as well.
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
First things First drain your coolant with the petcock on the bottom of the drivers side of the rad . Remove Cap to help vent drainage .
While this is draining remove coolant overflow and windshield washer bottles.
Next Remove shroud ( 4 bolts one in each corner )
[IMG][/IMG]
[IMG][/IMG]
Next Remove top radiator hose followed by the bottom. If you still have the factory Transmission cooler lines hooked to your Radiator you will need a disconnect tool for the lines.
Remove 2 bolts at the top of the radiator and lift it out .
Place new rad inside facing up on a flat working surface .
[IMG][/IMG]
Line up the E-Fans so that the top mounting hole lines up with the small lip at the top of the radiator.
[IMG][/IMG]
Drill a 3/16" hole on each side and thread a bolt through the fan and rad . This will take the weight of the fans .
[IMG][/IMG]
Next use zip tie kit for mounting on four points on each fan and push them between the fins of the rad , flip over and use rubber washers and plastic zip tie ends to pull and hold the fans tightly against the radiator. Cut of the remaining tie.
[IMG]
[/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
Next just install your new Radiator following the steps in reverse . Hope this helps someone out . Cheers !
Here are the wiring instructions as well.
[IMG][/IMG]
[IMG][/IMG]
