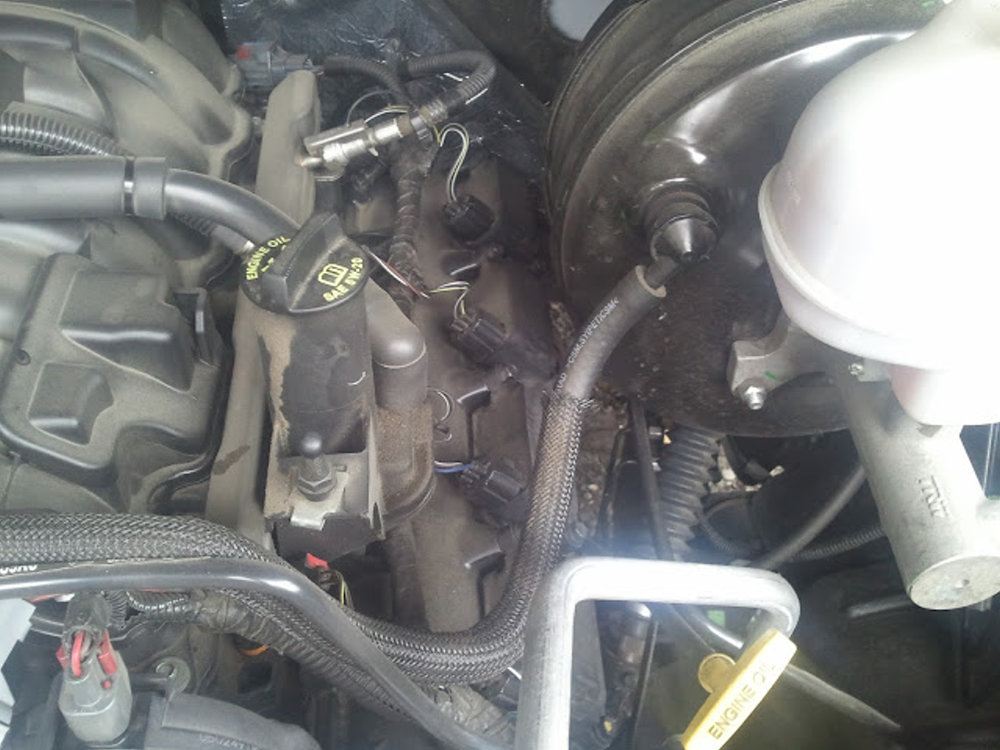

With the easy cylinders, you just stick your spark plug socket on your 12-inch extension, lower it into each hole and remove the plugs. Cylinder seven requires some wiggling through the hoses to get to the plugs, especially if you unclip and remove some of the hoses, but you cannot put that long extension on the socket for cylinders six and eight because the brake booster is in the way. At the same time, you need the extension, because the plug is too far down into the head to reach with just the socket. This is where the DIY write-up becomes very helpful.
Hard Part

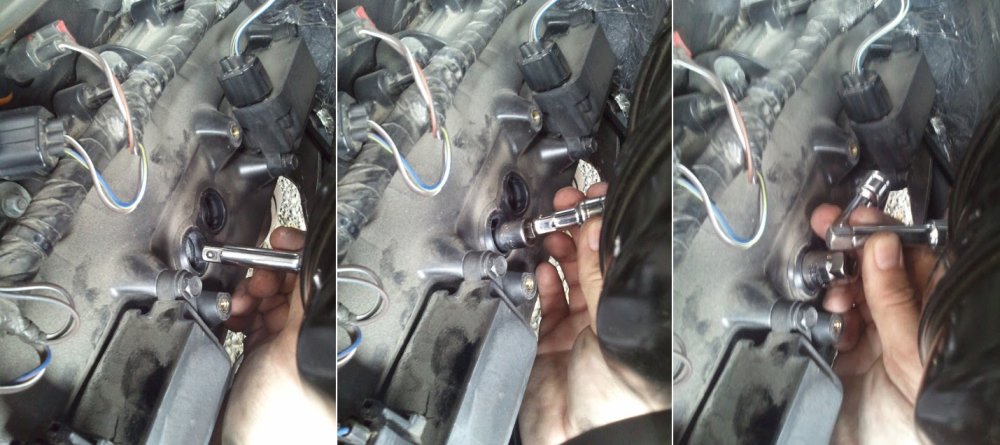

To get to the plugs in cylinders six and eight, the OP explains how to lower the socket in, followed by two different small extensions. This will allow you to reach the plug without too much interference from the brake booster, but when you go to remove the plug from the tube, you will need to gradually remove the ratchet, then each one of the extensions.
Putting these plugs back in is just as hard as getting them out, so you will want to finish the hard part of this job by installing the new plugs in six and eight first. You need to use a standard socket rather than a spark plug socket so that it doesn’t get stuck on the plug. Putting the plug in the socket, you want to slowly lower the two down into the tube, followed by the two extensions and then the ratchet – carefully threading in the plugs and tightening them down.
Once the plugs are in cylinders six and eight, you can re-install those coil packs and move around to cylinder seven, installing those two plugs and the coil pack before hooking the heater hoses back up.
Once you have cylinder six, seven and eight buttoned up, you are in the home stretch. The front five cylinders are all much easier, allowing you to use the long extension to install the plugs before bolting up all of the coil packs.
Key Points to Remember

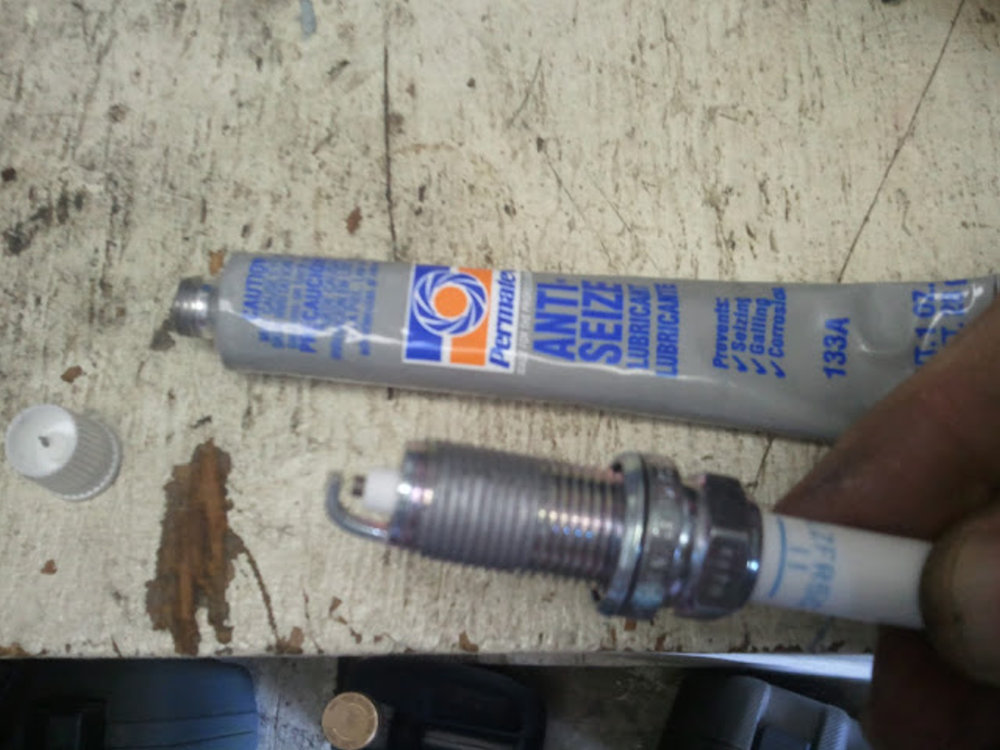

The OP reminds us to apply anti-seize lubricant to the threads of the new spark plugs before installing them and you don’t want to overtighten the plugs.

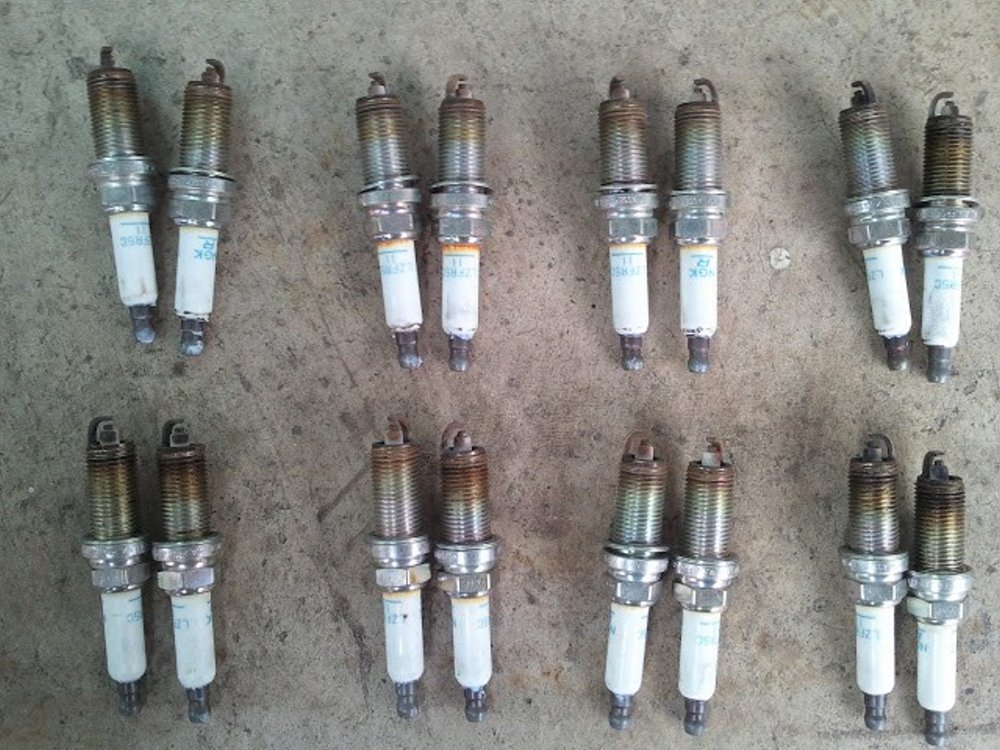

He ends the DIY by giving us a look at the old plugs, showing us how they were worn during use.
