Select Pages From the Factory Service Manuals (For Quick Reference)
__________________________________________________ ______________________________

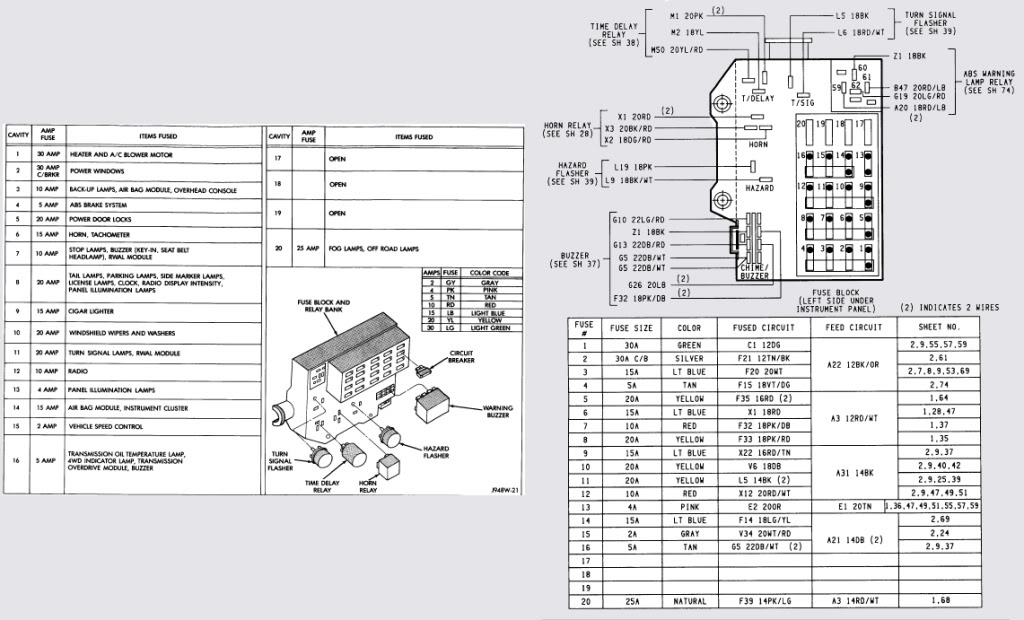

Fuse Box
Power Distribution Center (PDC)
PDC.jpg?t=1273357905

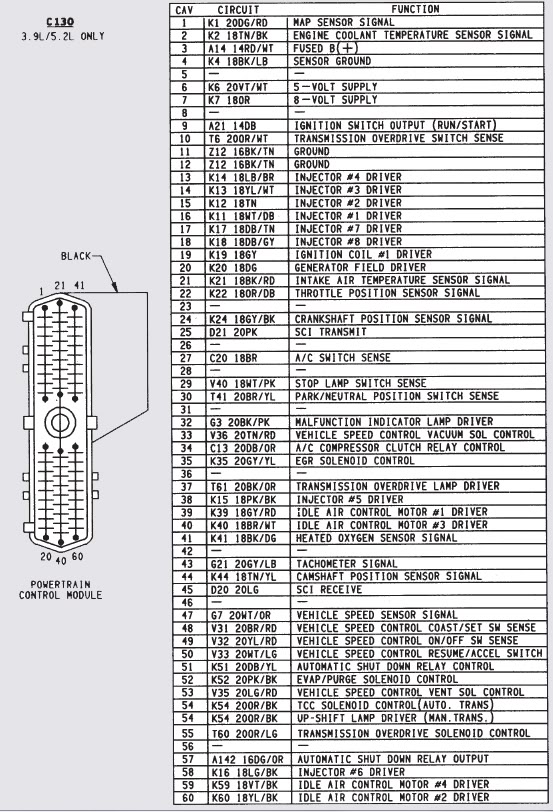

PCM Connector Pinouts
2.5L
3.9 & 5.2L
Firing Order Dodge Magnum engine 5.2 & 5.9 v8 & 3.9 V6
