1994 Dakota Brake Light Help
i just bought a 1994 Dakota and brake lights are not working. I looked under dash and found two wires that run back to brake lights not connected. I wanted to see if someone had wiring diagram or could tell me. The taillights work but not brake lights.
Champion
Joined: Jan 2013
Posts: 4,737
Likes: 374
From: Northwest Louisiana
The 1995 FSM in the stickied thread should be close enough to use for this; but since we don't have the 1994, I'd also recommend grabbing one from Ebay (used) or some place like RockAuto (the DVD/CD copy as a PDF is like $23 plus shipping; hard to beat.)
RwP
RwP
Champion
Joined: Jan 2013
Posts: 4,737
Likes: 374
From: Northwest Louisiana
Was that connector on the right side of the instrument panel?
Since you have a 1995, download the FSM from the stickied post at the top of the forum; in that zip file, extract all of it; then open up section 8W and go to page 8W-90-12 and 8W-90-15 and see if that's where it was.
Still, the dealership may be the best choice; I find them at DigiKey, but doubt you want 1,000 of them ...
Addendum: If you download the 94-96 parts list, and go to page 8-1710, I THINK those are #10 on that page. Not sure, though. But that'd be a good test; take the old one, have the service counter people match it, and buy them at the dealership.
RwP
Since you have a 1995, download the FSM from the stickied post at the top of the forum; in that zip file, extract all of it; then open up section 8W and go to page 8W-90-12 and 8W-90-15 and see if that's where it was.
Still, the dealership may be the best choice; I find them at DigiKey, but doubt you want 1,000 of them ...
Addendum: If you download the 94-96 parts list, and go to page 8-1710, I THINK those are #10 on that page. Not sure, though. But that'd be a good test; take the old one, have the service counter people match it, and buy them at the dealership.
RwP
Last edited by RalphP; Sep 5, 2018 at 03:00 PM. Reason: Pointer to what I think is the actual connector.
Trending Topics
Thread Starter
|
Registered User
Joined: Sep 2018
Posts: 4
Likes: 0

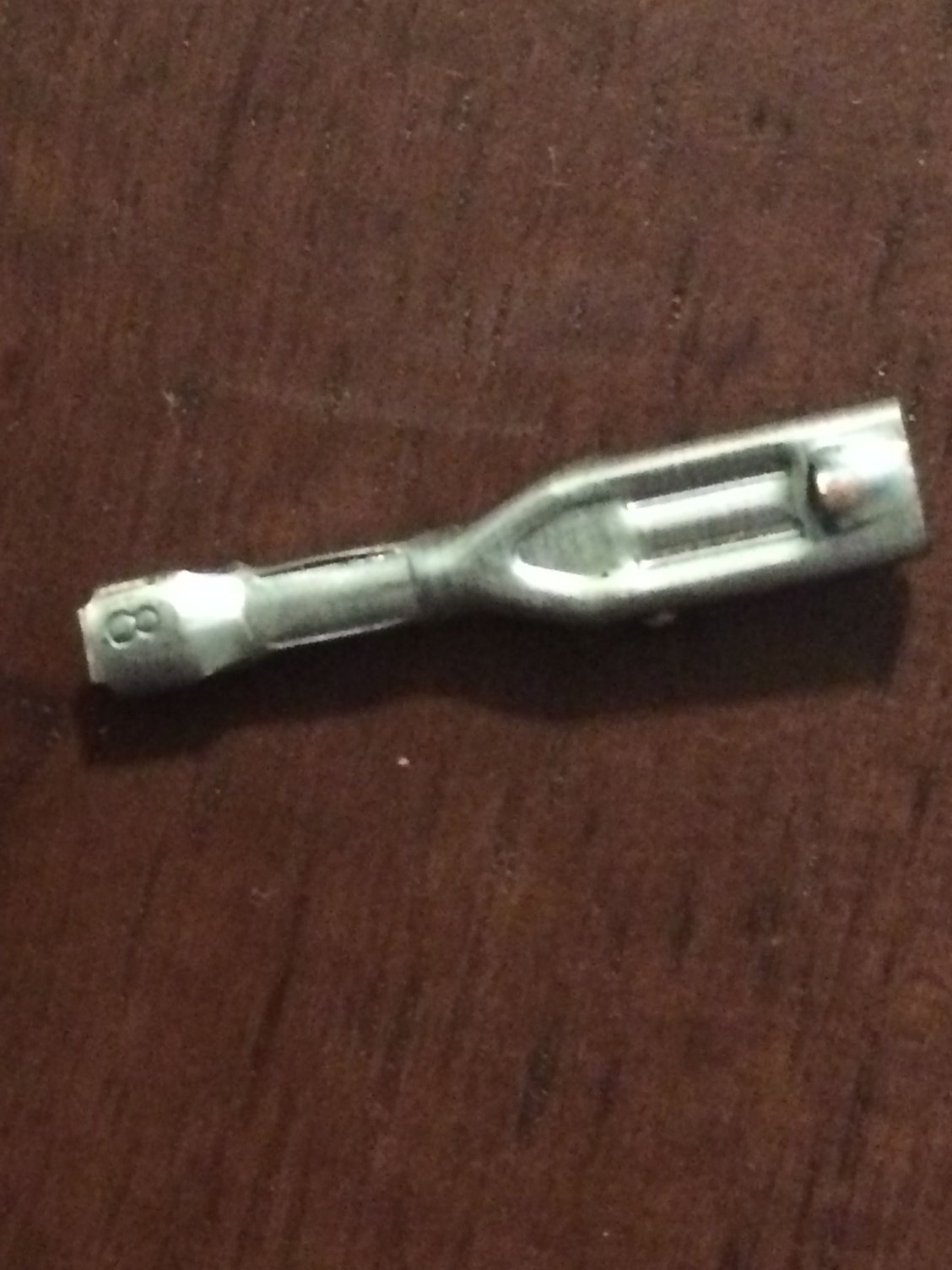

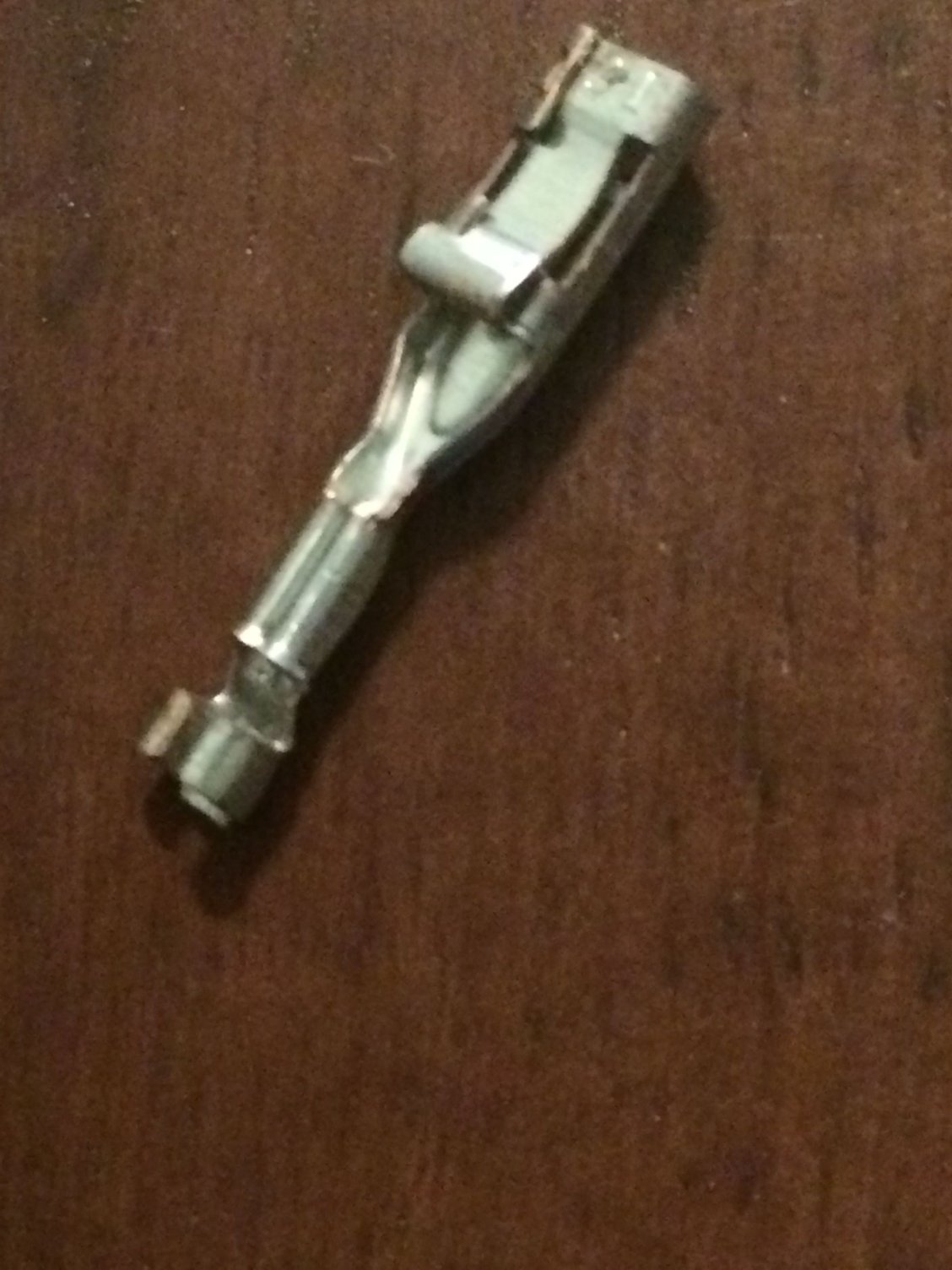

I looked and did not see connector on picture. I attached picture. There are two wires going in and four wires coming out of it. I called dealer today but guy could not find them. What is part # on digikey? It may help me find them somewhere else.
