Making a metal cupholder on '97 Ram
Thread Starter
|
Amateur
Joined: Jan 2013
Posts: 25
Likes: 0
From: Central VA
Making a metal cupholder on '97 Ram
How I made an aluminum cupholder support for my '97 Ram 1500.
My cupholder broke, so I took it apart and epoxyed it back together. It thanked me by breaking in two other places. The plastic is old, hard, and brittle. I got the idea that I could make a replacement out of metal. Here's how I made it out of an aluminum sheet. The pattern I made sort of looks like a siamese gingerbread man, doesn't it?! ;-)

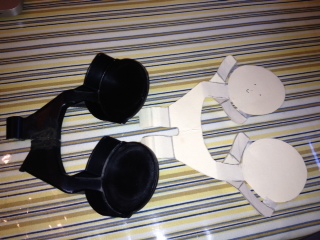

Broken cupholder and traced out pattern:

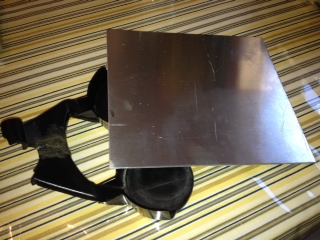

Aluminum sheet:

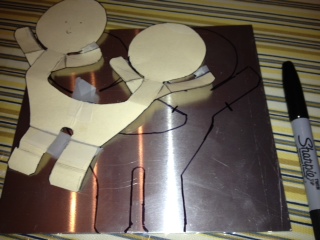

Traced pattern:

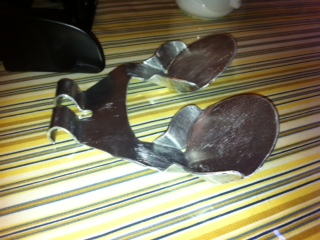

Cut it out and bent into shape:

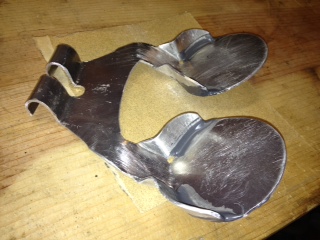

Added some JBWeld to the interior seams as filler:

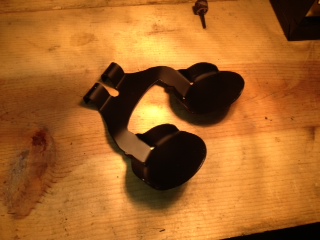

Sanded and primered.
I had to cut the carrier (the slide-out-of-the-dash part) because my metal part's "hips" were a little bigger than the plastic part. I used a little end mill in a dremel tool to cut it out where it needed some additional clearance. After reassembly with the spring, it works great!
Just thought I'd share. Hope this inspires somebody!
