A while back, I was invited to visit the Chrysler Group Headquarters in Auburn Hills, Michigan, where I got to see the Hellcat Hemi completely torn down into individual key components – and I got pictures of these components from a variety of angles.

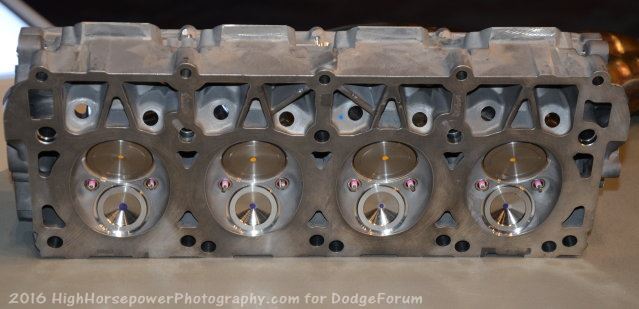

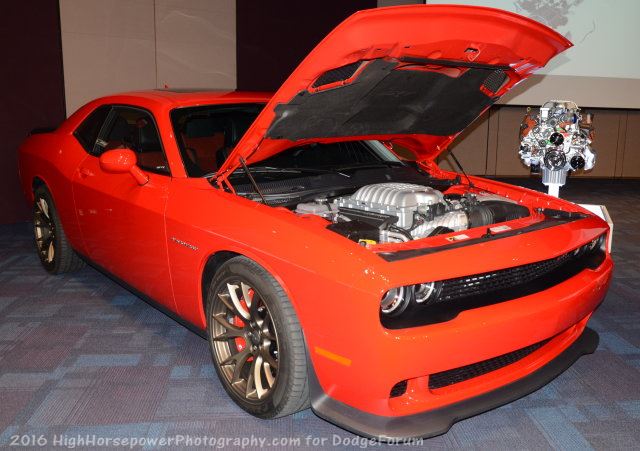

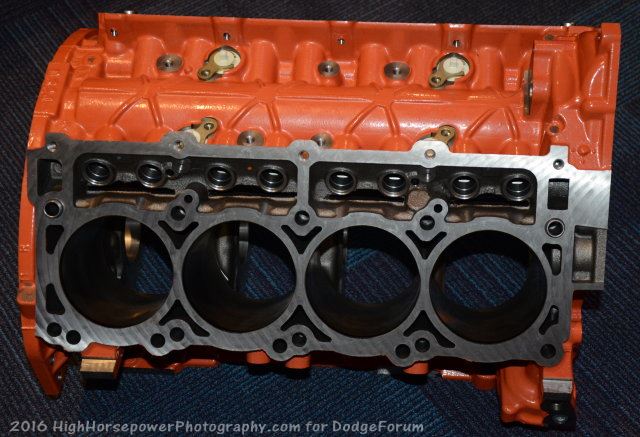

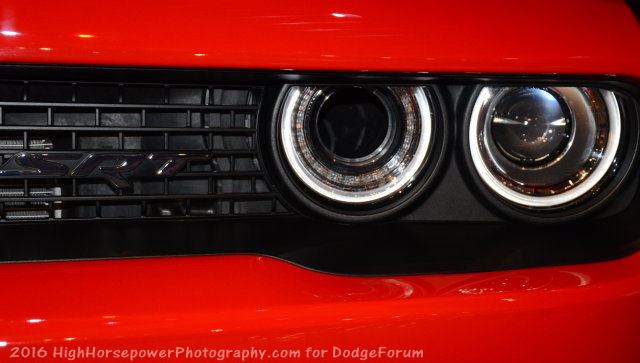

In the gallery below, you will find a few images of a preproduction Dodge Challenger SRT Hellcat along with pictures of the Hellcat’s IHI supercharger housing opened up from a variety of angles, the Hellcat cylinder head from a variety of angles, the Hellcat cylinder block and the key components of the rotating assembly – including the pistons, crankshaft, the oil squiters, the piston rings and the solid-forged connecting rods.

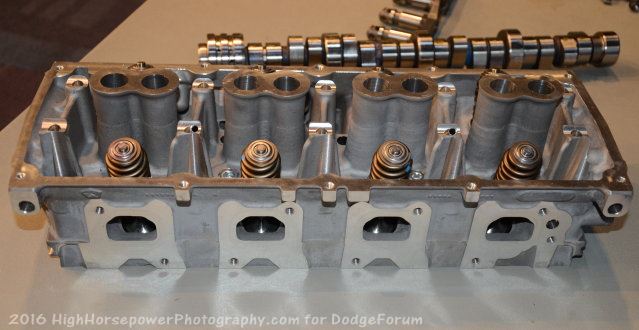

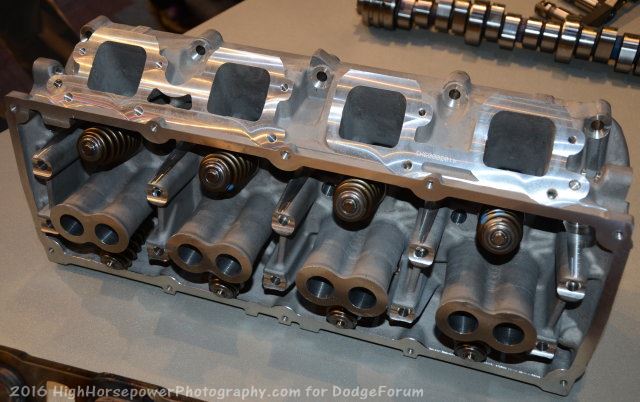

While looking through these pictures of the Hellcat Hemi all torn apart, take close note of the size of the intake ports in the cylinder head and the intricate integrated intercooler design that is a major part of what makes the Hellcat Hemi so powerful.

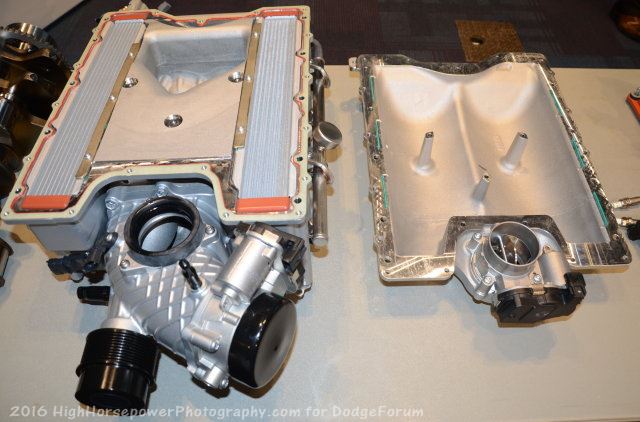

In the image below, we can see the Hellcat supercharger with the lid removed. The air enters where the black rubber cap is on the body of the supercharger, where it is compressed by the two huge rotors and sent upwards against the lid of the supercharger. From there, the compressed air is jammed through those dual intercoolers and into the cylinder heads.
