Need Help: identify Brake Line placement
I have had this truck for only a few months. I don't know if this is a previous owner modification, or if it comes this way from the factory.
This rubber brake line fell down from atop the rear axle. It appears the bracket that holds it in place rusted, causing it to fall. I can't find a schematic, or anything in my Haynes to tell me if it is supposed to be attached to something on both ends.
(have photo to upload here, but having issues with upload, give me a moment to edit please)
And the photo I have to upload here, shows where the rubber hose is attached to some type of small junction box, which has 2 metal brake lines on each side, the rubber hose on top.
And the final photo shows the other end of the rubber hose, what I think is just a plug? This is the end I want to know if it is supposed to be attached to maybe the speed sensor?? Or something else? Does it come from the factory with a plug?
2001 Dodge Ram 2500, 5.9L Gas engine

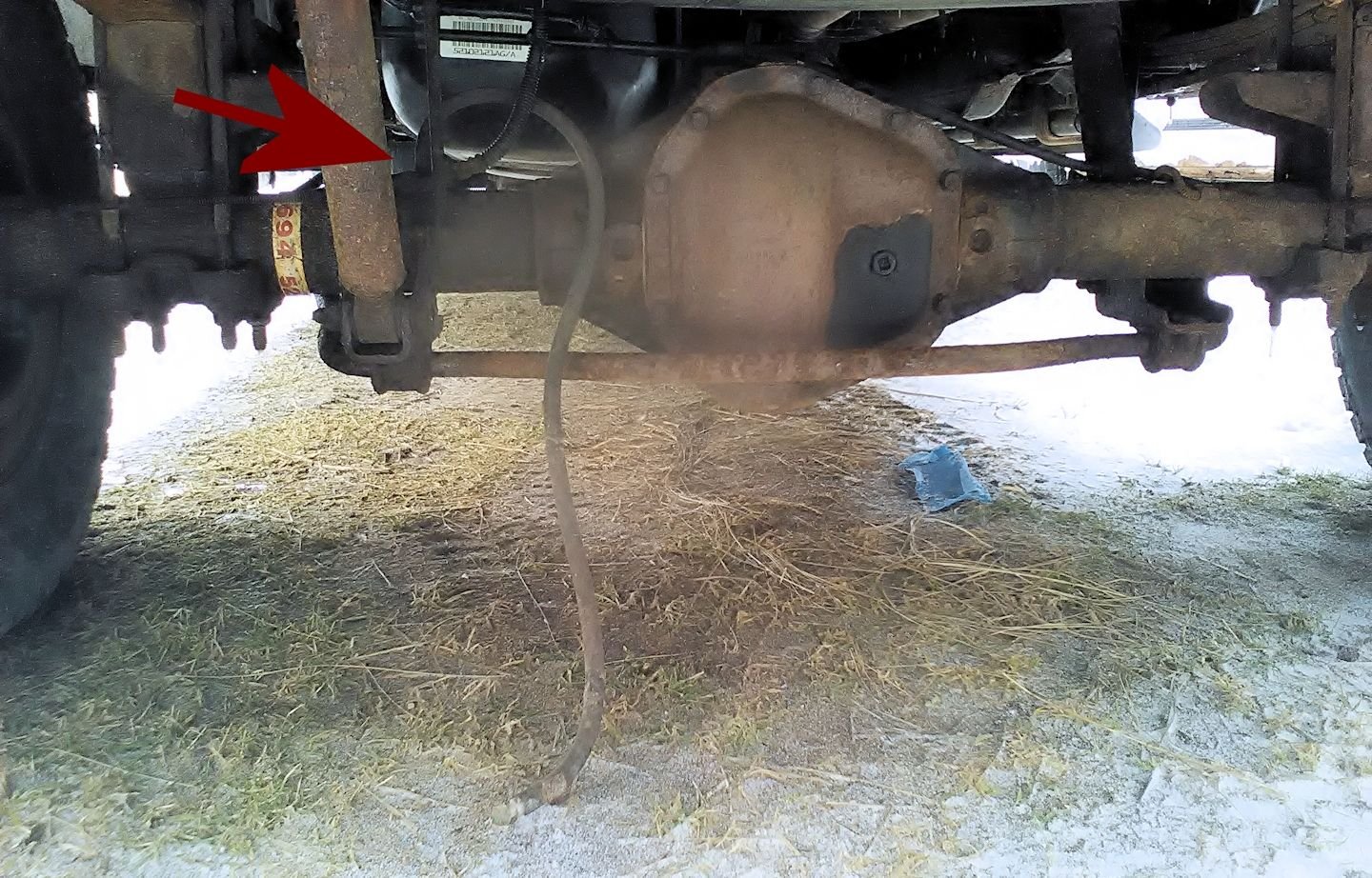

Red arrow shows location of where the 3 brake lines are joined by a small box.

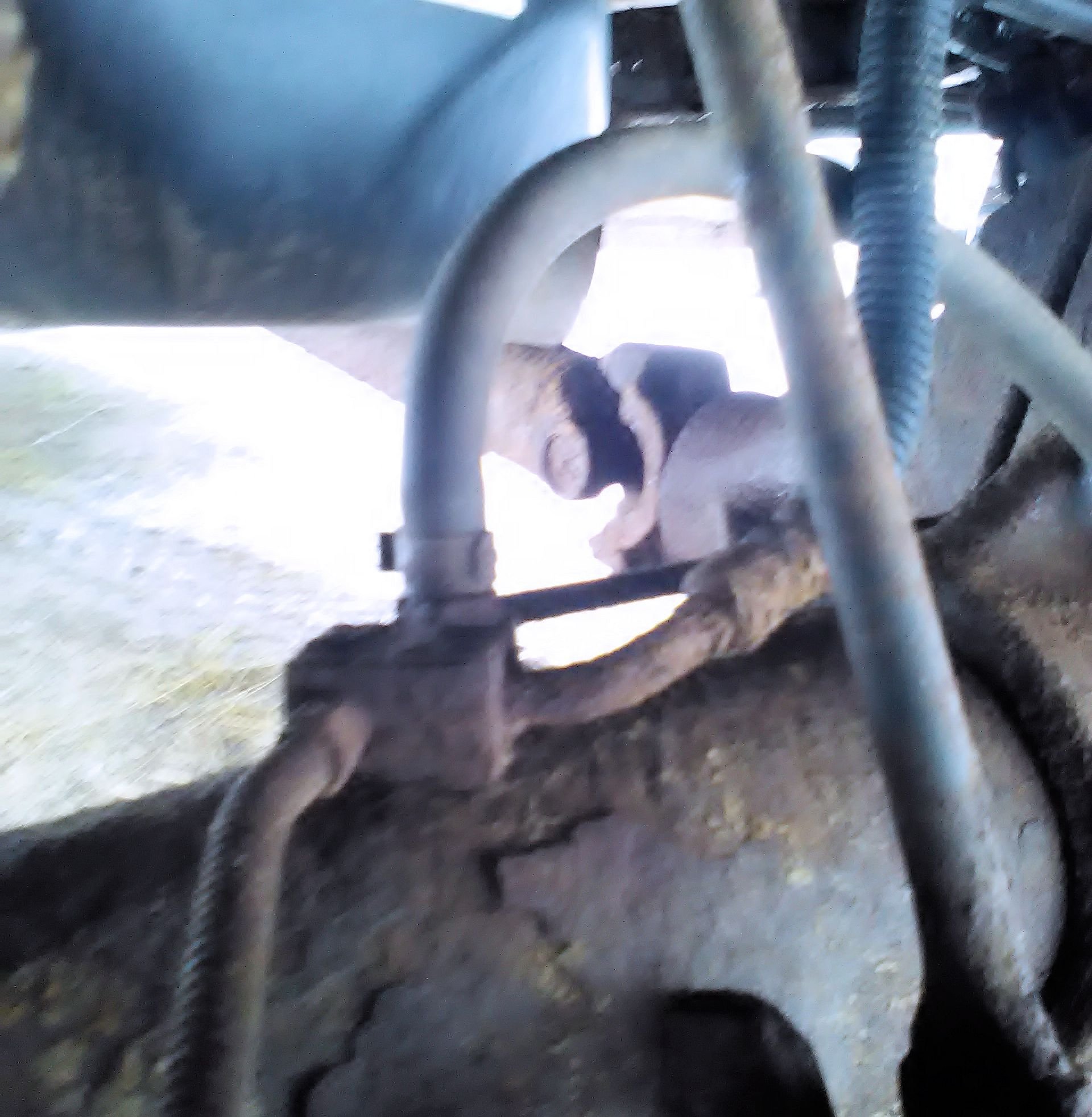

2nd photo: of the junction box
3rd photo: Plug or valve
This rubber brake line fell down from atop the rear axle. It appears the bracket that holds it in place rusted, causing it to fall. I can't find a schematic, or anything in my Haynes to tell me if it is supposed to be attached to something on both ends.
(have photo to upload here, but having issues with upload, give me a moment to edit please)
And the photo I have to upload here, shows where the rubber hose is attached to some type of small junction box, which has 2 metal brake lines on each side, the rubber hose on top.
And the final photo shows the other end of the rubber hose, what I think is just a plug? This is the end I want to know if it is supposed to be attached to maybe the speed sensor?? Or something else? Does it come from the factory with a plug?
2001 Dodge Ram 2500, 5.9L Gas engine
Red arrow shows location of where the 3 brake lines are joined by a small box.
2nd photo: of the junction box
3rd photo: Plug or valve
Last edited by not2techie; 03-17-2016 at 03:55 PM. Reason: Add pics
#2
I have had this truck for only a few months. I don't know if this is a previous owner modification, or if it comes this way from the factory.
This rubber brake line fell down from atop the rear axle. It appears the bracket that holds it in place rusted, causing it to fall. I can't find a schematic, or anything in my Haynes to tell me if it is supposed to be attached to something on both ends.
(have photo to upload here, but having issues with upload, give me a moment to edit please)
And the photo I have to upload here, shows where the rubber hose is attached to some type of small junction box, which has 2 metal brake lines on each side, the rubber hose on top.
And the final photo shows the other end of the rubber hose, what I think is just a plug? This is the end I want to know if it is supposed to be attached to maybe the speed sensor?? Or something else? Does it come from the factory with a plug?
2001 Dodge Ram 2500, 5.9L Gas engine
Red arrow shows location of where the 3 brake lines are joined by a small box.
This rubber brake line fell down from atop the rear axle. It appears the bracket that holds it in place rusted, causing it to fall. I can't find a schematic, or anything in my Haynes to tell me if it is supposed to be attached to something on both ends.
(have photo to upload here, but having issues with upload, give me a moment to edit please)
And the photo I have to upload here, shows where the rubber hose is attached to some type of small junction box, which has 2 metal brake lines on each side, the rubber hose on top.
And the final photo shows the other end of the rubber hose, what I think is just a plug? This is the end I want to know if it is supposed to be attached to maybe the speed sensor?? Or something else? Does it come from the factory with a plug?
2001 Dodge Ram 2500, 5.9L Gas engine
Red arrow shows location of where the 3 brake lines are joined by a small box.
Edit: My bad, upon fully reading your post I see the plastic breather is still attached.
So yeah it's just the axle vent to help equalize the pressure when everything in the axle gets hot and expands. The plastic bit is to keep water out and allow the axle to breathe.
You can just ziptie it back up somewhere or maybe find another clip for it somewhere
But it's no big deal, your Dodge is fine
