Swapping the chassis of a 1997 Ram in a tiny one-car garage seems impossible, but one of our members shows how it’s done.
DodgeForum member DodgeItRamIt97 has a great-looking second-generation Ram 1500, but for a very long time, it was a two-wheel-drive machine. He had it lifted, leaving many people were surprised to learn that it wasn’t four-wheel-drive, but he fixed that by adding the front differential via a complete chassis swap. He chronicled the entire process in the “2nd Gen Ram Tech” section, showing us how he upfitted his truck to four-wheel-drive in a tiny one-car garage.
Introduction
The OP began his detailed four-wheel-drive-swap thread by introducing us to his 1997 Ram 1500 and explaining his motivation for the project.
“So Ive had my 1997 ram 1500 for about 7 years now and I’ve poured countless hours into modifying it for no substantial reason. Aftermarket parts and accessories etc. But the fact that it was a 2 wheel drive was always an issue for me. Below is the last pic i took before the conversion. 8 inches of lift on a mix of parts ranging from Fabtech to Accuair.
At first glance people always admired the truck and upon hearing that it was a 2 wheel drive they alway looked confused. lol. So i decided that it would be a fun project to turn my 2 wheel drive into a 4×4.
Started out by finding a guy parting out his 1997 ram 1500 4×4. Sweet! Was able to get the frame complete with wiring, brake lines, gas lines and front axle/steering components for $600.”
He also included the picture above of his truck looking big and bad, but with rear-drive only.
Body Removal
The OP added four-wheel-drive to his 1997 Ram 1500 by replacing his rear-wheel-drive chassis with another frame fitted with two axles. To do this, he had to remove everything from his stock chassis, and he started by removing the cab, engine and transmission as one big, heavy unit.

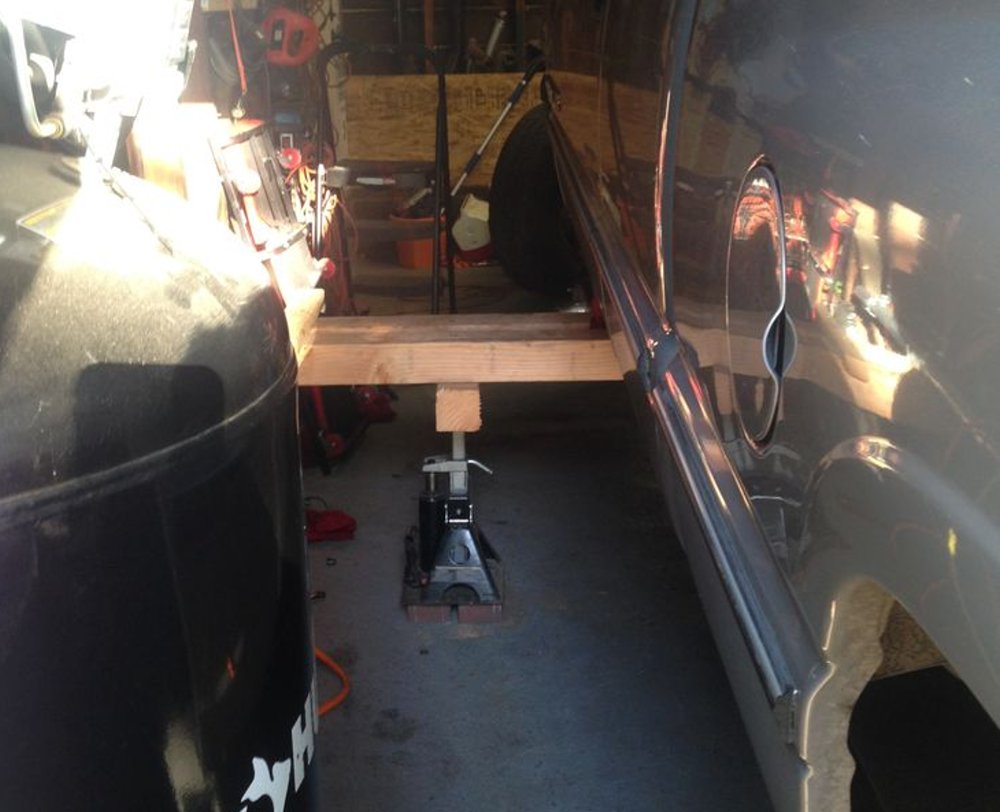

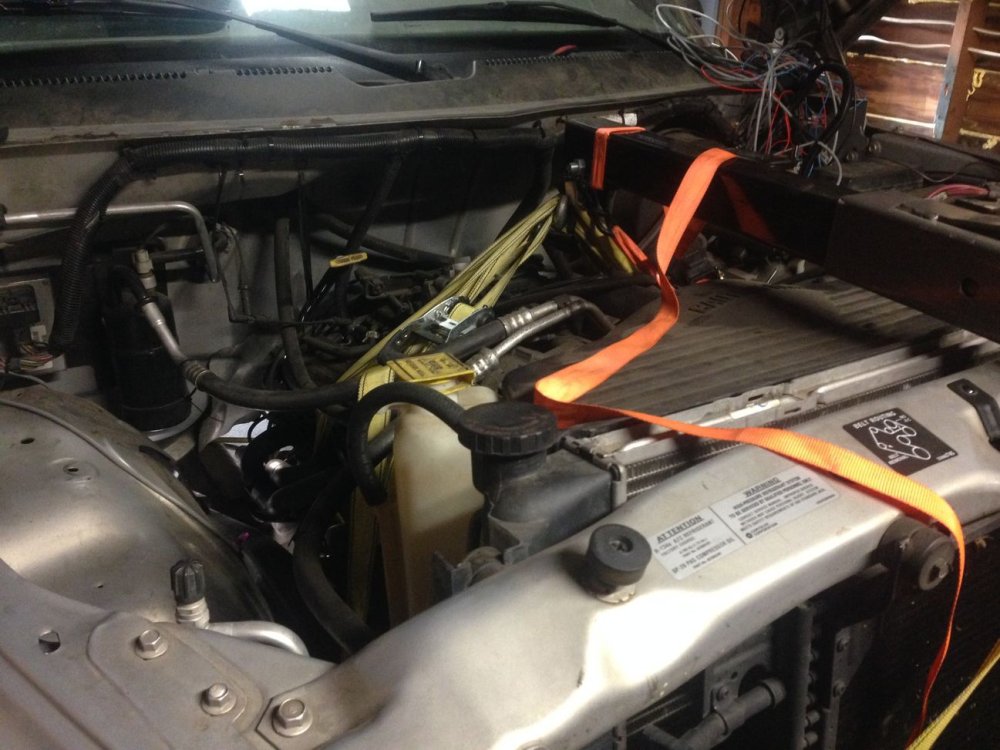

In the tiny garage, he used bottle jacks to hold the weight of the body while an engine hoist from Harbor Freight Tools was used to lift the weight of the engine and transmission.
Many people with better facilities will surely question the OP’s method of lifting the body, but when you have limited resources and space, you work with what you have. He did a great job of coming up with a plan to lift the body without spending a fortune on extra items.

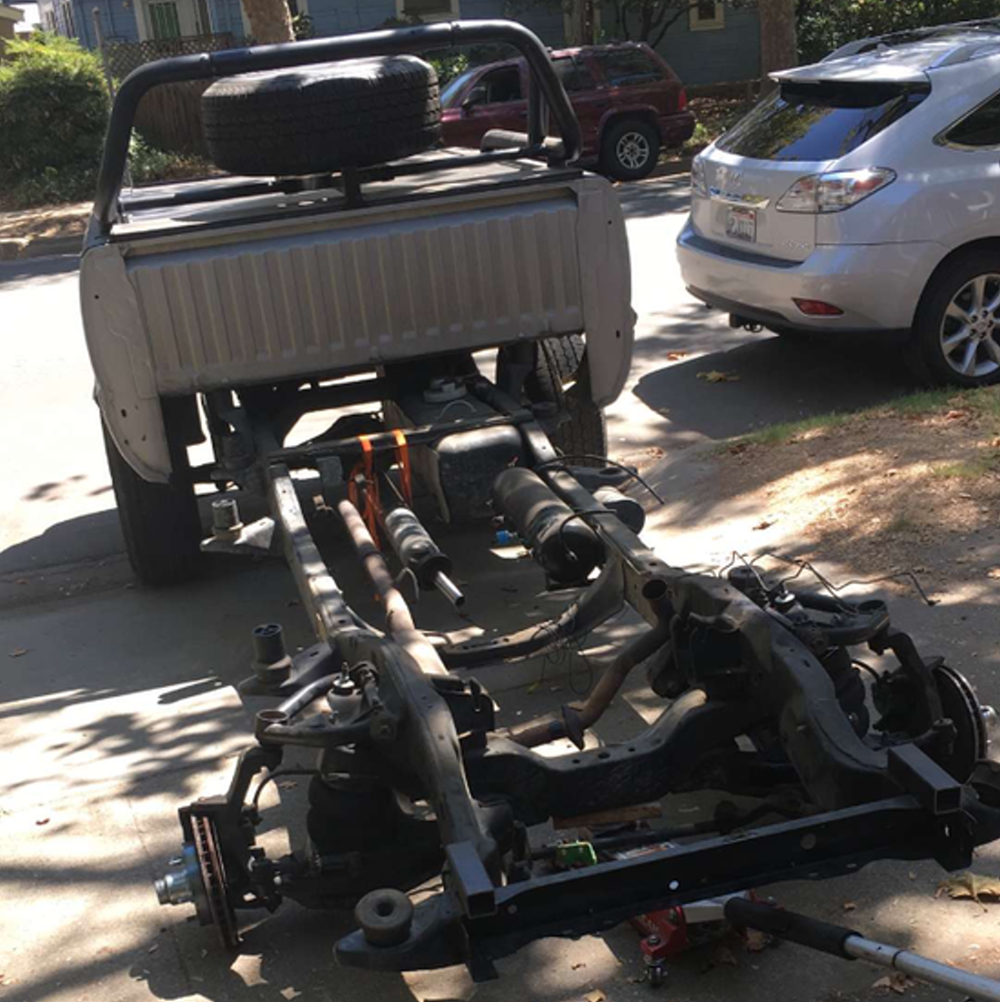

Once he disconnected all of the wiring and lines connecting the chassis to the cab, transmission and engine, the OP removed the body mounts and lifted the body, engine and transmission up away from the chassis. He then rolled the rear-drive chassis away from the cab and out of the garage.
