TopDon ArtiDiag 800 BT 2 Review: Pro Diagnostics Without the Premium Price
TopDon’s ArtiDiag800 BT 2 bridges the gap between affordable DIY scanners and professional-grade diagnostic tablets, offering extensive features without the steep cost.
Disclosure: Topdon is a sponsor of Dodge Forum.
Over the years, I’ve tested a wide range of OBD II tools, from compact Bluetooth dongles like TopDon’s TopScan Lite to high-end units from Bosch and Matco that easily stretch into the thousands. For casual use, the TopScan Lite remained my personal favorite, thanks to its convenience and capability. But when TopDon asked me to put the ArtiDiag800 BT 2 through its paces, I knew it would be a chance to step into a higher tier of diagnostics altogether.
This review covers what the ArtiDiag 800 BT 2 can do, where it excels, what it lacks, and who’s most likely to benefit from owning it.
Overview
The TopDon ArtiDiag800 BT 2 is a bidirectional scan tool that delivers functionality well beyond entry-level readers like the TopScan.
- The lightweight, ergonomic build makes it easy to handle.
- Wireless Bluetooth operation keeps the workspace free of cables.
- Its 28 service and reset procedures, combined with CAN-FD protocol support, make it a capable all-rounder for nearly every modern vehicle system—just short of full ECU programming.
Core Features
While it performs the usual OBD II tasks with ease, the ArtiDiag800 BT 2 is designed for much deeper diagnostics. Here’s what it brings to the table:
Full-system code reading and interpretation: Scans the vehicle’s onboard computers for DTCs (Diagnostic Trouble Codes) and provides details to guide your troubleshooting.
Bidirectional control tests: Enables users to actively command components or modules to test their functionality, depending on what the vehicle supports.
28+ service and reset options: From maintenance resets to specific calibration routines, the tool can handle most service-related programming found at dealership-level systems.
Automatic VIN scanning: The AutoVIN feature instantly identifies your vehicle and retrieves its specs, reducing setup time before you start diagnosing.
Live data monitoring: View, record, and analyze performance data across modules in real time, especially useful for tracking intermittent or performance-related faults.
Real-World Use

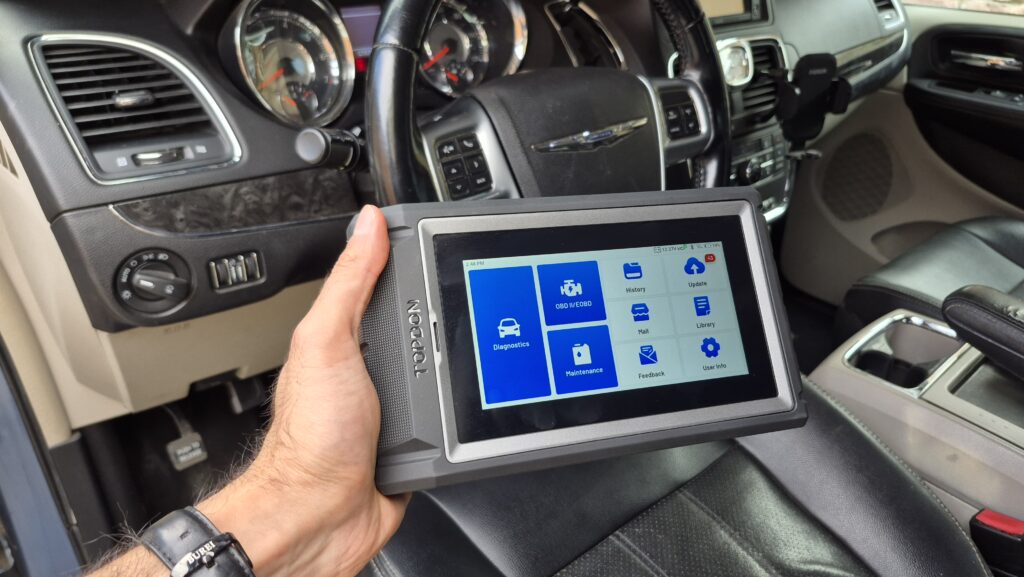

The ArtiDiag800 BT 2 arrived just as several of my personal vehicles needed attention: a washer fluid pump issue on my 2008 Mercedes, a non-responsive key receiver on my 2014 RAV4, and a cluster of fault codes on my aging Corvette. The car that I got the most from the diagnostic tool for, though, was my dad’s 2012 Chrysler Town & Country. The timing made for a perfect hands-on test of the tool’s breadth and usability.
Here’s what I learned after using it across different vehicles: what it gets right, what could be refined, and how it fits into the landscape of diagnostic tools.
Advantages
Compact, Practical Design: The ArtiDiag800 BT 2 features TopDon’s familiar minimalist layout, with a textured grip for secure handling and well-placed inputs above and below it. The tablet is big enough to display plenty of data while remaining light enough to hold or prop on a fender during use.
Extensive Service Reset Range: Compared with the TopScan Lite’s 8 reset options and the Pro’s 13, the ArtiDiag 800 BT 2’s 28+ functions open the door to significantly more advanced work—transmission learning, crankshaft and throttle calibration, adaptive lighting, fuel and air ratio resets, suspension and window programming, EGR maintenance, and odometer adjustments. These are the kinds of tasks that usually require brand-specific dealer software.
Clean, Intuitive Software: TopDon’s user interface remains one of the easiest I’ve encountered. It’s responsive, clearly organized, and doesn’t bury you in unnecessary menus.
Future-Proof Protocols: The inclusion of CAN-FD support ensures compatibility with newer models as vehicle communication systems evolve.
Excellent Cost-to-Performance Ratio: Price has always been one of TopDon’s key selling points, but the ArtiDiag 800 BT 2 goes further—it feels far more premium than its cost suggests, rivaling the refinement of tools that cost three or four times as much.
Limitations
Display Bezel: While the screen’s resolution is fine, the thick border around it makes it appear smaller than it actually is. A larger display area would improve the overall experience.
Battery Efficiency: Battery life isn’t poor, but it drains faster than expected, especially when connected via Bluetooth or left idle. It’s a mild inconvenience rather than a major flaw.
Recommended Users
Best Suited For:
- Skilled DIY mechanics or hobbyists who regularly work on multiple cars and need dealer-level features at a manageable price.
- Independent repair shops or mobile techs who use bidirectional commands and service resets often but don’t need manufacturer-specific software.
Probably Not For:
- Dealerships or brand-specialized shops requiring OEM coding and module reprogramming.
- Beginners who only need a simple code reader—TopDon’s smaller TopScan models would be more practical and cost-effective.
Overall Impression
The ArtiDiag 800 BT 2 strikes a solid balance between price, performance, and coverage. It’s packed with features that make real diagnostic work easier—broad system access, wireless connectivity, CAN-FD support, and genuinely practical service tools. While it’s not intended to replace OEM-level scanners, it covers enough ground for nearly every enthusiast or small-scale professional.
If you’re upgrading from a plug-in dongle or basic handheld unit, this tool offers serious capability without breaking the bank. For those who only need occasional code clearing or maintenance resets, the TopScan Lite or Pro still make sense at a lower cost.
Software and Subscription

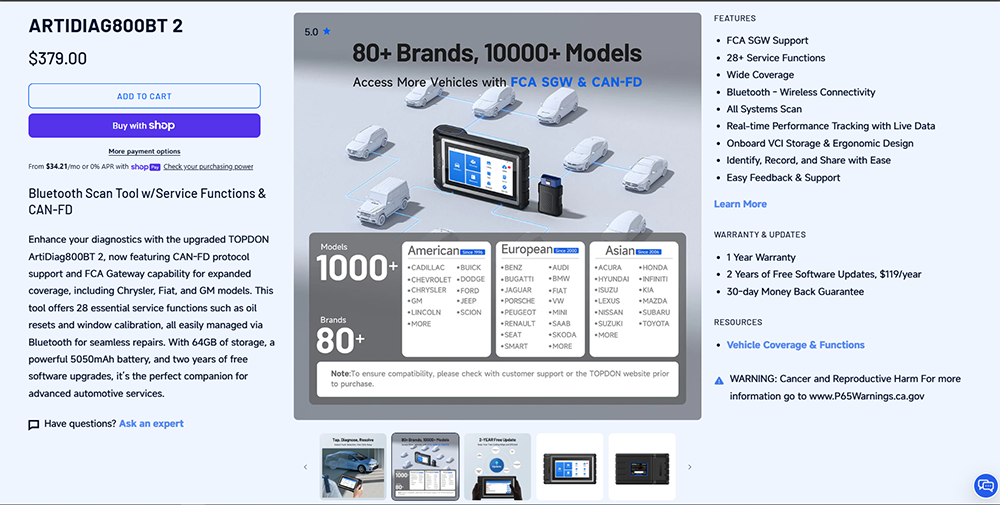

At the time of writing, the ArtiDiag800 BT 2 is priced at $379 on Amazon, which includes two years of complimentary software updates. After that period, renewing costs $119 annually. Skipping renewal limits the scanner to core diagnostic and simple control features, while the advanced resets and bidirectional functions become unavailable. Keep that in mind when considering the long-term value of the purchase.
