Default Need Picture of where air cleaner tube attaches

I have a 1992 Dakota with a 318. The po removed the air intake tube and I just picked one up at a salvage yard. I know how the end nearest the filter attaches but I can't figure out where the other end attaches up near the grill.
A picture would be awesome.

THANK YOU

Reply
Old Jun 19, 2022 | 03:02 PM
  #2
onemore94dak's Avatar
onemore94dak
Champion
Photogenic
Photoriffic
Shutterbug
Joined: Sep 2013
Posts: 2,724
Likes: 153
Default

No pic.on my 94 3.9 It is on the passenger side of the radiator.overflow bottle a vertical rectangle that the lip on end sort of snaps into. It is a pia sometimes. I don't see why they would have changed anything for the other motors.

Reply
Old Jun 19, 2022 | 03:32 PM
  #3
Tech man's Avatar
Tech man
Thread Starter
|
Registered User
Joined: Mar 2018
Posts: 6
Likes: 0
Default

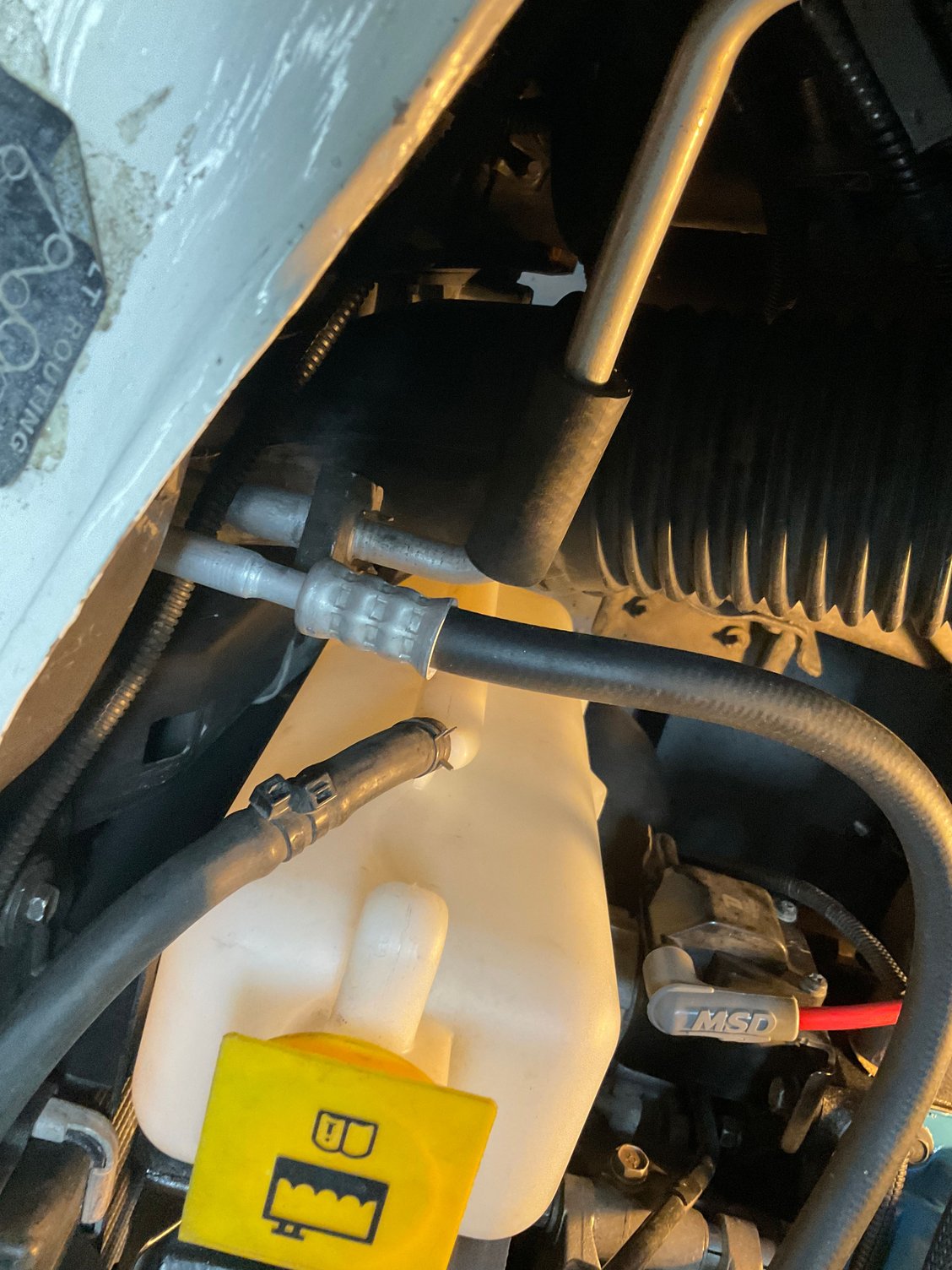

This area where I think it should go is blocked by an A/C component

Reply
Old Jun 19, 2022 | 04:54 PM
  #4
bronze's Avatar
bronze
Record Breaker
10 Year Member
Liked
Loved
Community Favorite
Joined: Nov 2015
Posts: 2,232
Likes: 473
From: North Carolina
Default

Never saw that before.

Reply
Old Jun 19, 2022 | 06:38 PM
  #5
onemore94dak's Avatar
onemore94dak
Champion
Photogenic
Photoriffic
Shutterbug
Joined: Sep 2013
Posts: 2,724
Likes: 153
Default

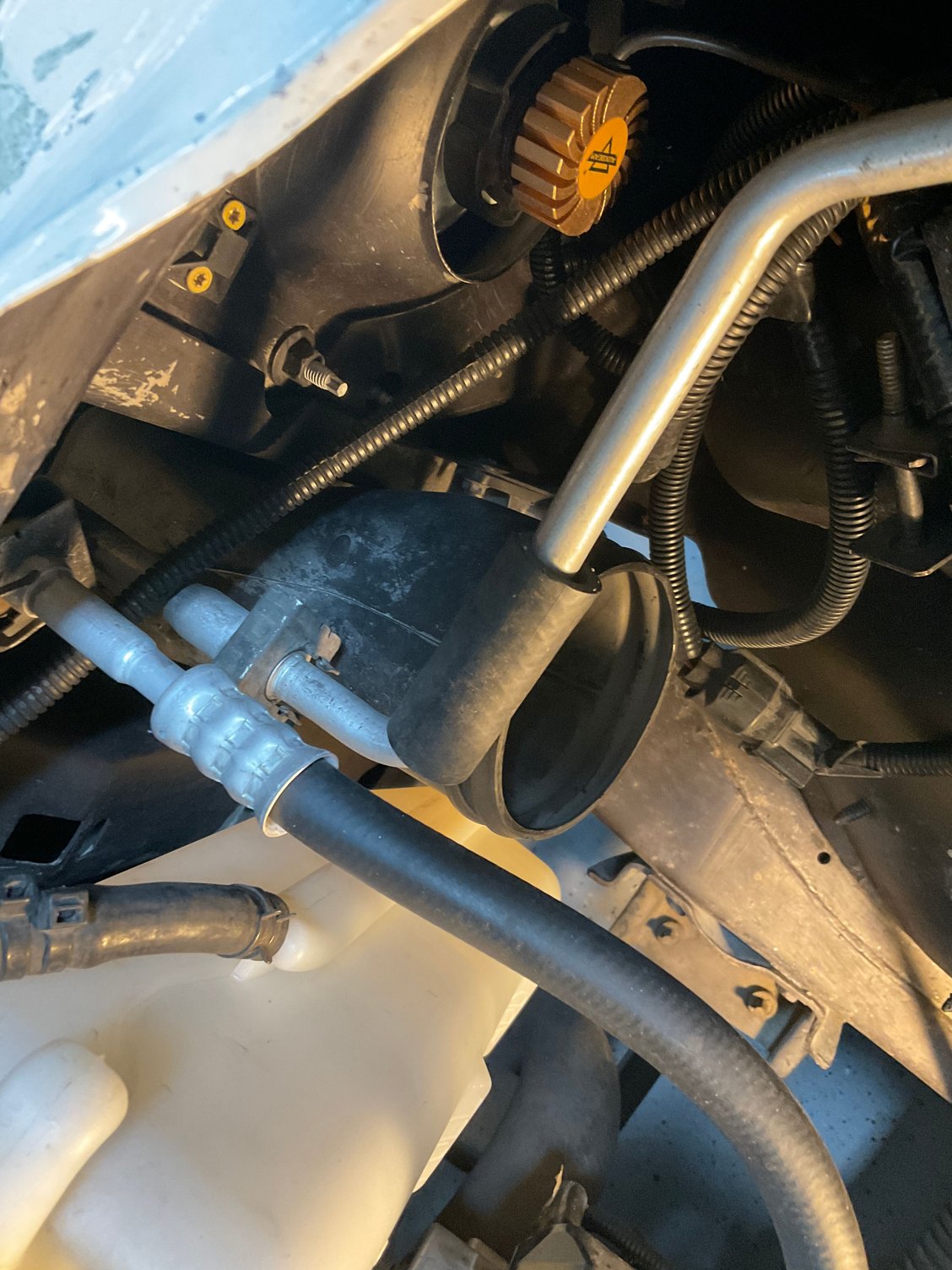

On mine that AC hose goes through the upper hole. Looks like mine has a kind of soft materiel that is wearing out and yours is missing holding it in the upper hole. The lower hole is where the cold air intake goes.

Reply
Old Jun 21, 2022 | 08:43 PM
  #6
Flounderguy's Avatar
Flounderguy
Professional
5 Year Member
Liked
Loved
Joined: Mar 2020
Posts: 157
Likes: 21
From: Orangevale, Ca
Default Air intake

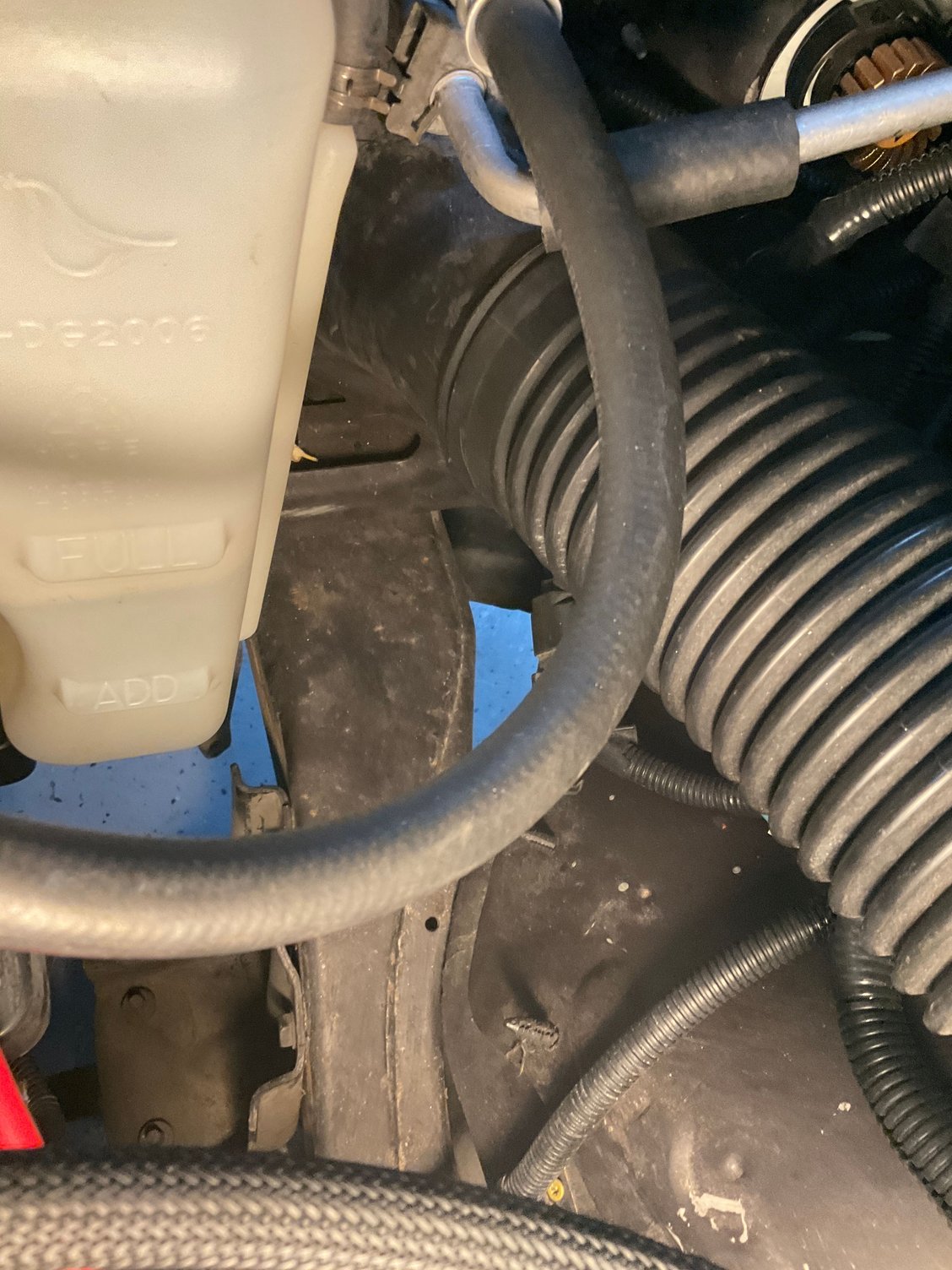

This is my 95
