Missing Part on Manifold

C.Taylor · 2022-12-06 02:22:04

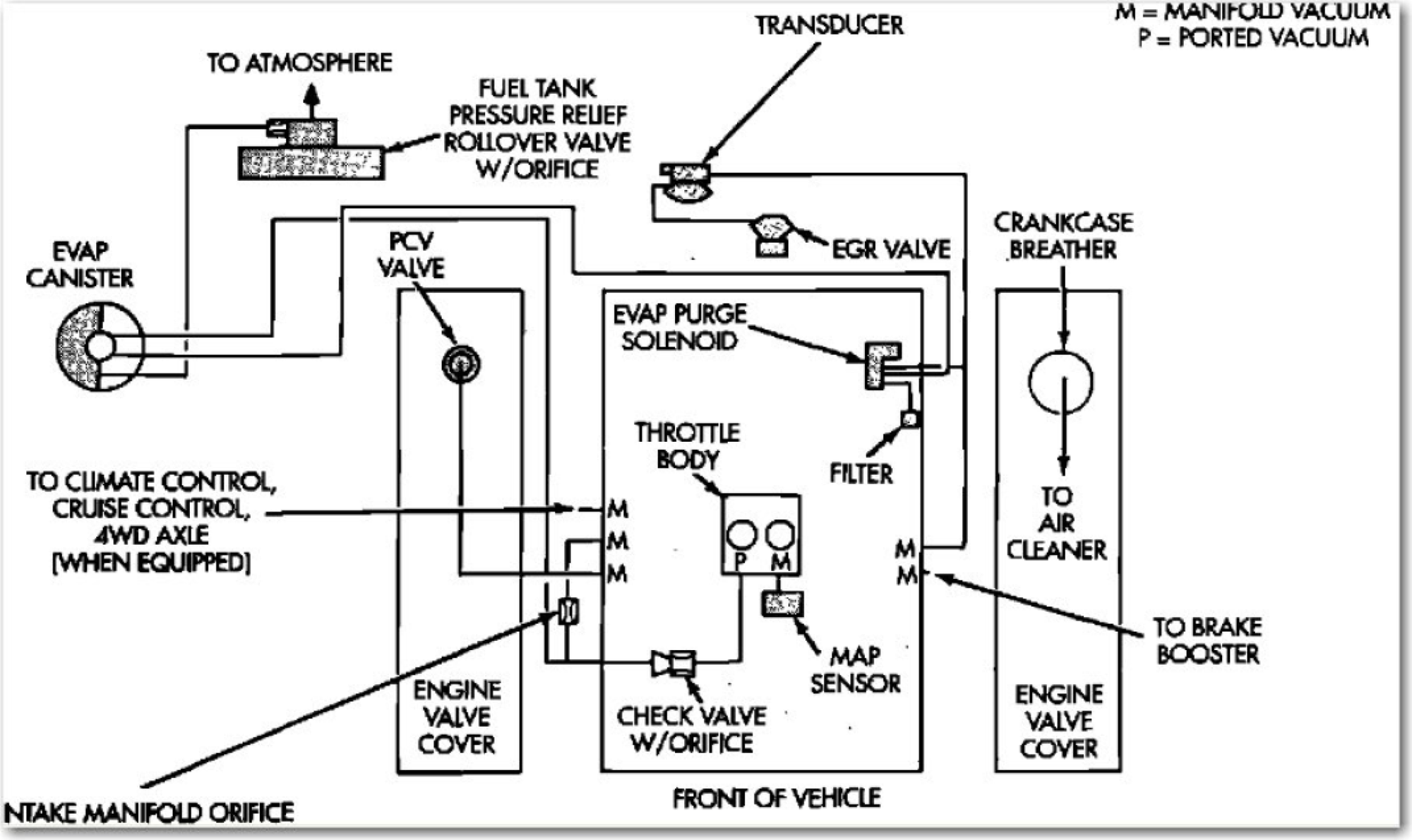

https://cimg8.ibsrv.net/gimg/dodgeforum.com-vbulletin/2000x1190/3_9l_vacuum_diag_ffdab3ce055ee00ed49cd572fe91cd48f5260c02.png Here's the vac diagram for the 1994 3.9.

Reply Subscribe

Thread Tools

Search this Thread

Dec 8, 2022 | 06:38 PM

#11

onemore94dak

Champion

Joined: Sep 2013

Posts: 2,723

Likes: 152

Here's the vac diagram for the 1994 3.9.

Dec 8, 2022 | 10:46 PM

#12

bronze

Record Breaker

Joined: Nov 2015

Posts: 2,232

Likes: 473

From: North Carolina

Quote:

Originally Posted by onemore94dak;[url=tel:3556489

3556489[/url]]

Here's the vac diagram for the 1994 3.9.

You do a nice job substituting for Ralph digging up info.
