88 D100 AC/Heat Switch Wiring

Thread Tools

Search this Thread

Old Mar 30, 2021 | 12:32 PM
  #1
Maki's Avatar
Maki
Thread Starter
|
Amateur
Joined: Mar 2021
Posts: 39
Likes: 0
Default 88 D100 AC/Heat Switch Wiring

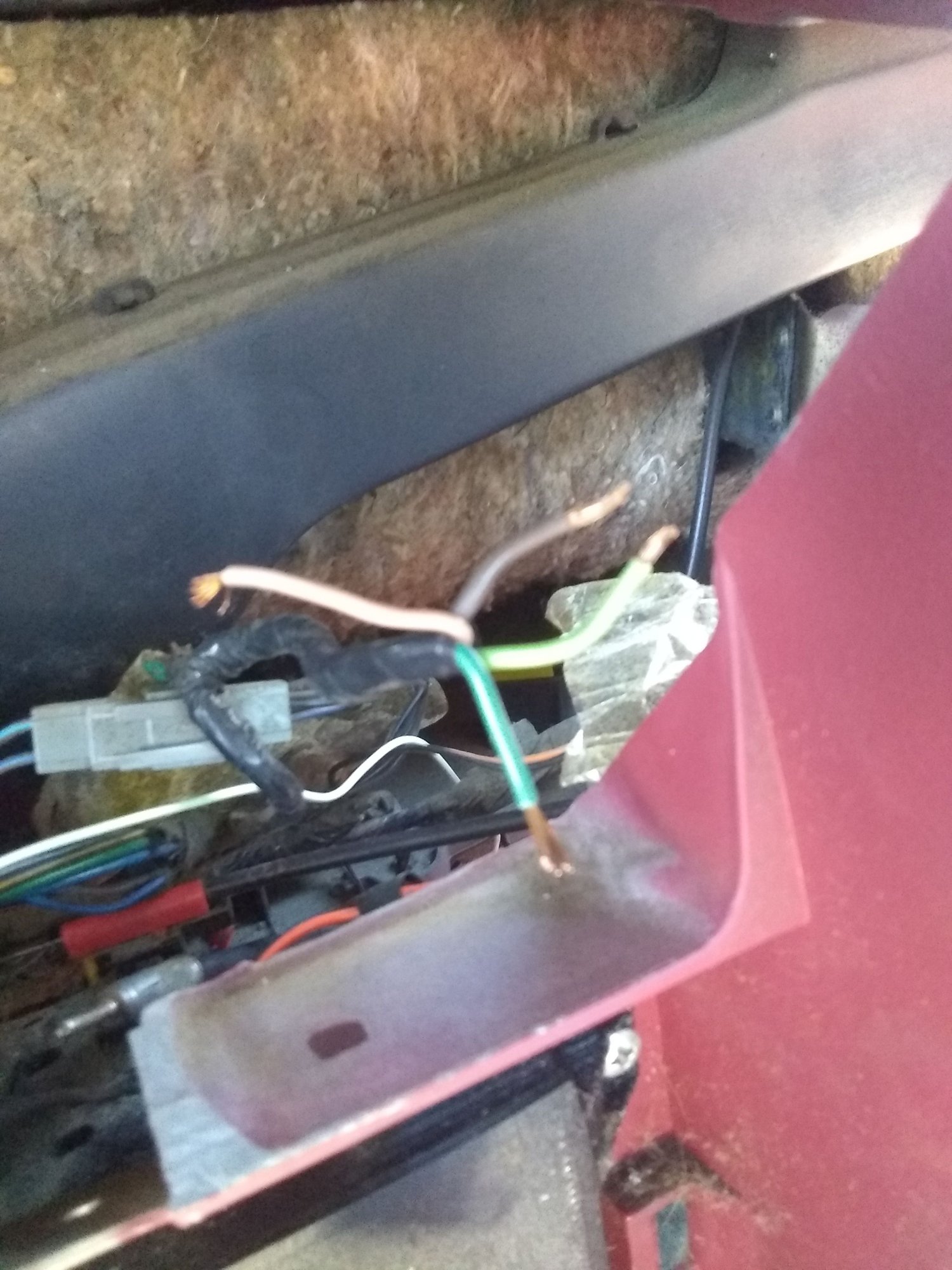

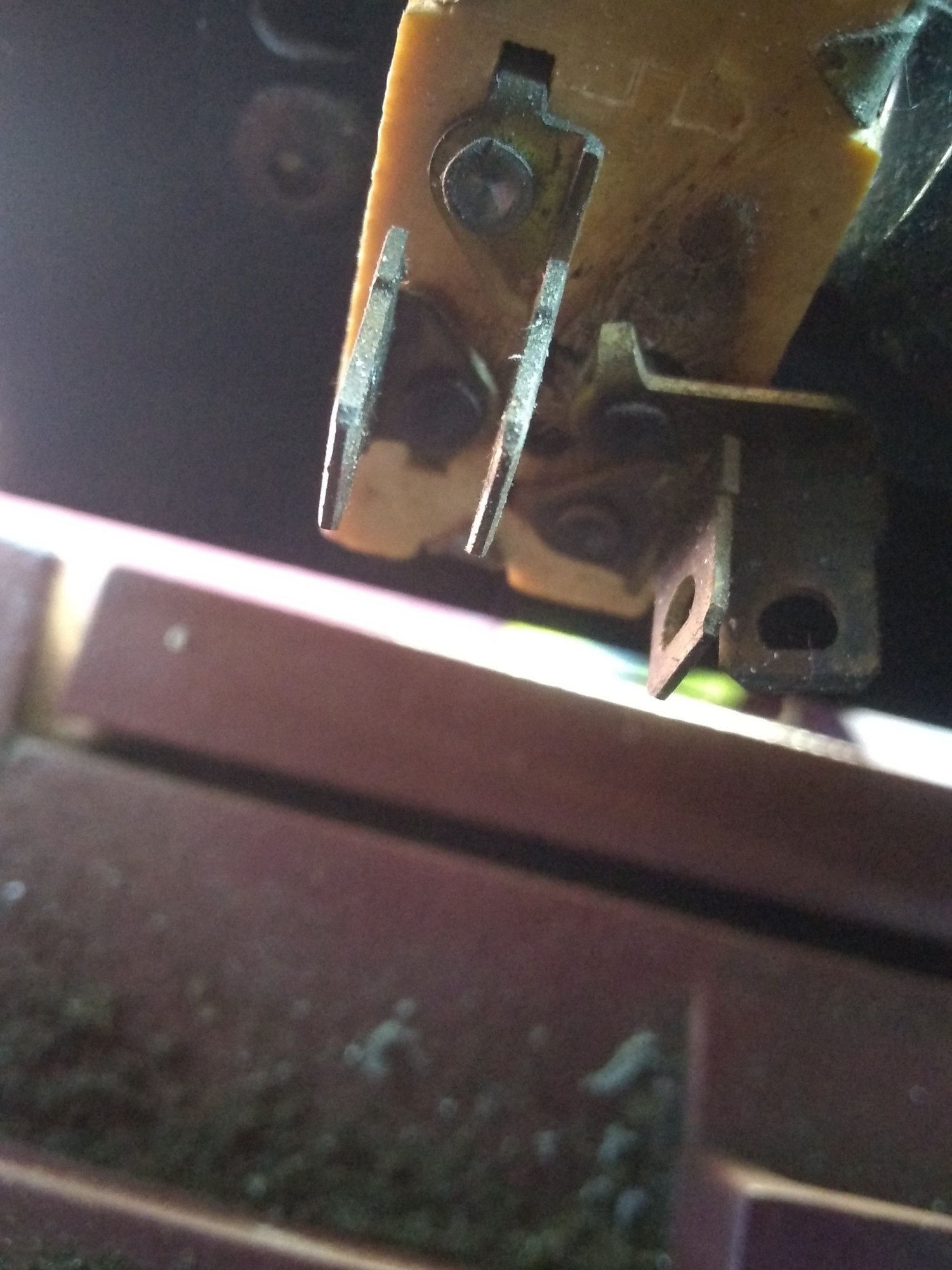

So the PO had used house wiring and bypassed the blower speed switch to a single on/off. I didn't note the colors, when I removed it, but I know that Black/Gray is my hot wire. Does anyone know how they plug into the back of the speed switch and which color is which speed? I've tried finding a harness for it but have been unable to on google, but I also might not be hitting the right keywords.

Wire Colors:
Black - Hot
Red - Max
Green - Medium
Light Green - Low




Last edited by Maki; Apr 2, 2021 at 09:20 PM. Reason: Fixing colors
Reply
Old Mar 31, 2021 | 04:00 PM
  #2
69_XS29L's Avatar
69_XS29L
Veteran
10 Year Member
Joined: Mar 2013
Posts: 277
Likes: 37
From: Sunny ****ing Nevada, Rockies to B.C.
Default

There is a wiring diagram at the top of the Gen 1 section, that'll help you. Colors should be the same.

Reply
Old Apr 1, 2021 | 08:51 AM
  #3
ol' grouch's Avatar
ol' grouch
Grand Champion
5 Year Member
Photogenic
Photoriffic
Shutterbug
Joined: May 2019
Posts: 5,160
Likes: 724
From: S.W. Indiana
Default

Don't forget to replace the blower resistor. That's why these hatchet jobs usually get done. The resistor goes out and someone just wires it straight.

Reply
Old Apr 2, 2021 | 09:22 PM
  #4
Maki's Avatar
Maki
Thread Starter
|
Amateur
Joined: Mar 2021
Posts: 39
Likes: 0
Default

Since I've got the wires stripped, just tested them today (probably could've just done that to start with, but they all worked) and updated the main post just in case someone else needs it

Originally Posted by ol' grouch
Don't forget to replace the blower resistor. That's why these hatchet jobs usually get done. The resistor goes out and someone just wires it straight.
I'd read about that and it slipped my mind, a friend ordered the harness that plugs into the back of the switch, so once that arrives, we'll know whether or not I need to replace the switch and the resistor.
