OK I found the pic's

0


0


0


0


0
0

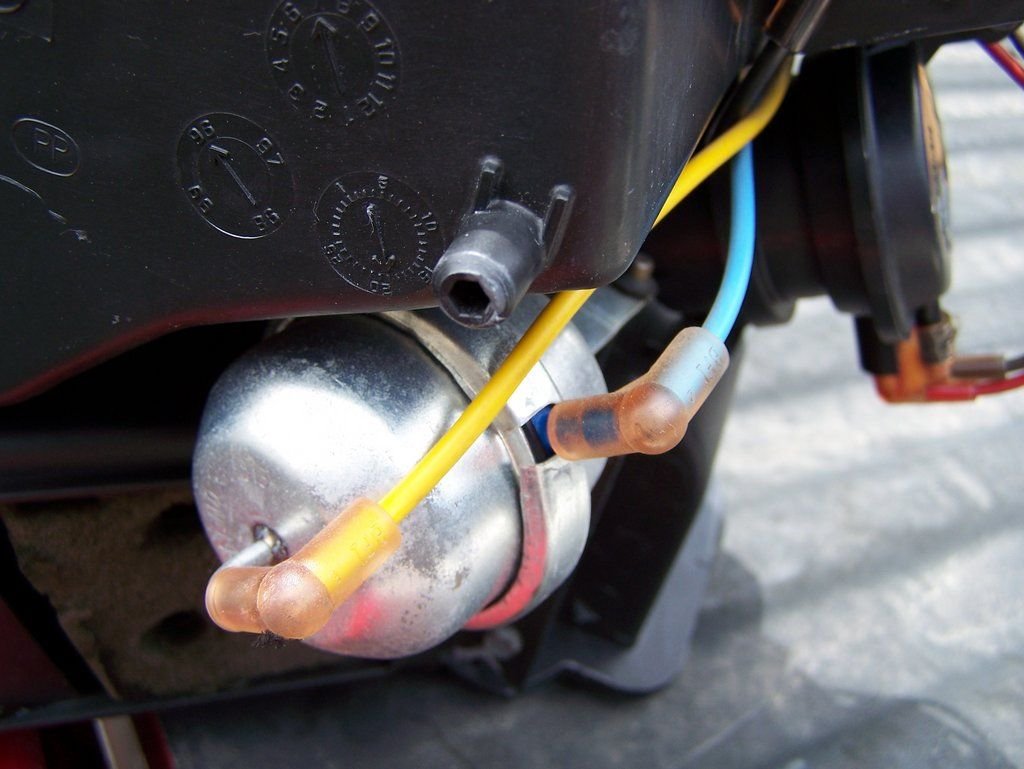

OK all the colored vac lines should hold a vacuum the black is the power or direct vacuum line.



Ok thanks I have a bigger fish to fry now. On the way home today I noticed some antifreeze running down my floor mat on the passenger side. I check it out and it seems to be coming floor vent for the passenger side. Im guessing the heater core gave up on me now.
