Rear suspension/axle reflip (putting it back to stock hight)
#1
Rear suspension/axle reflip (putting it back to stock hight)
I recently bought a 2000 1500 5.9 automatic

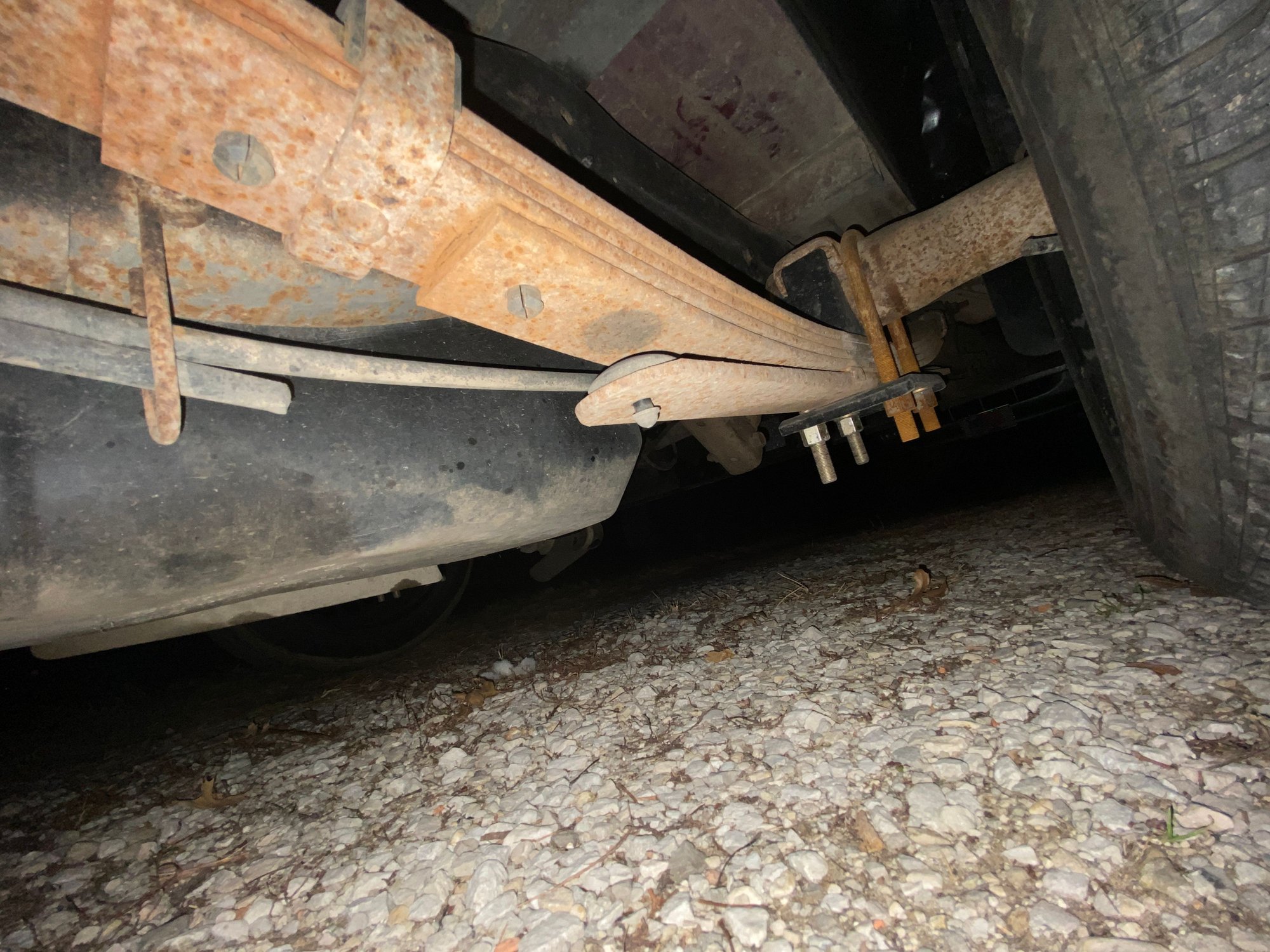

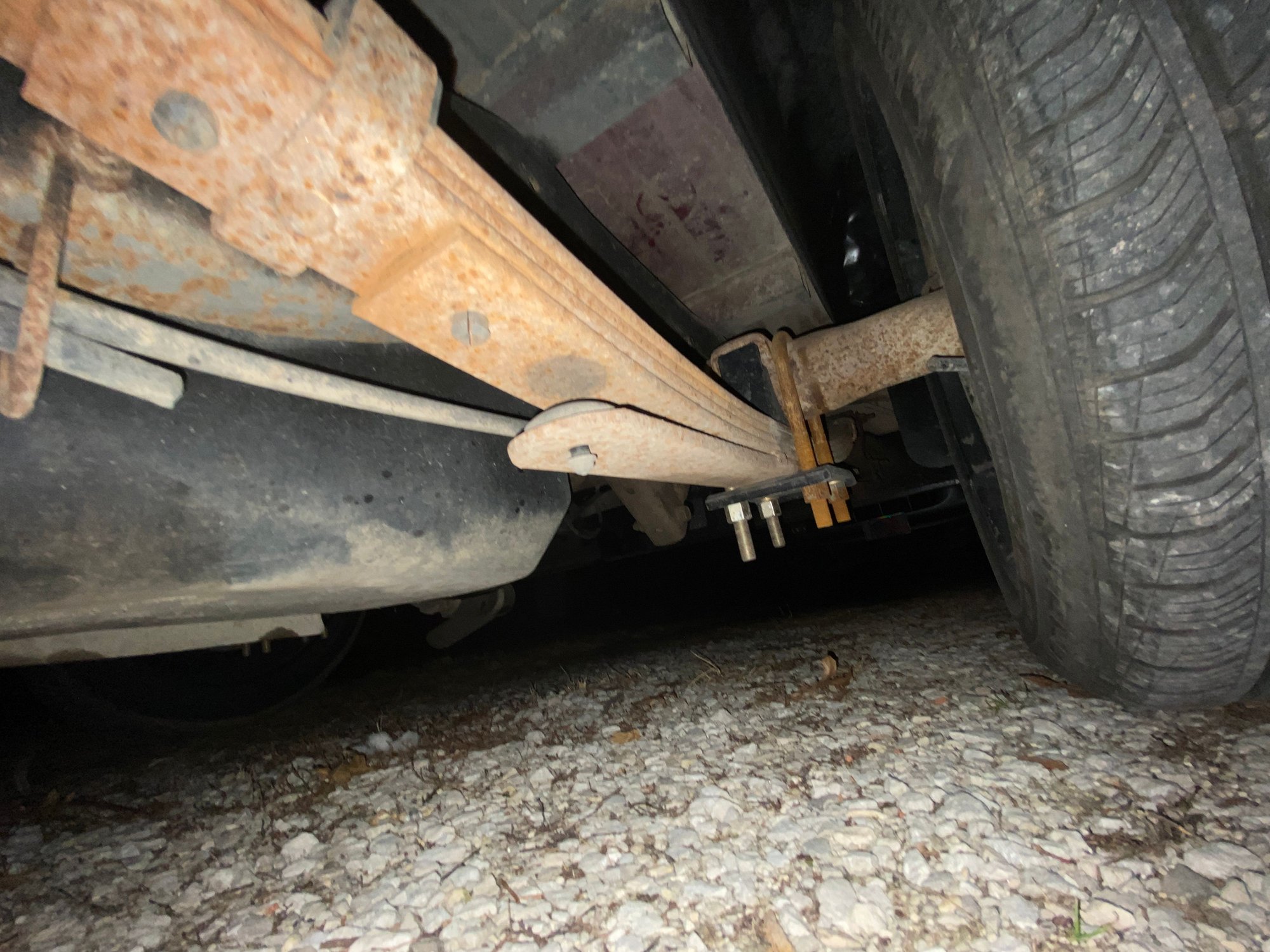

with 141k miles in a trade for a 2wd 4Runner with 235k miles but it’s axle flipped and what looks to be a suspension lower on the front. I can send some photos of both but can send more extensive photos when I get off work. My question is for both the front and the back, what do I need to do to get it back to stock? The rear is the one I need more info on as I already bought oem springs for the front but will take advice and instruction on what to do for the front end too. The rear has what looks like reversed shackles and the leaf springs are under the axle. How would I go about reversing that and are there any diagrams anywhere that I can look at while working on it in the shop so I don’t screw anything up? Thanks in advance.
EDIT: he didn’t cut into the frame
with 141k miles in a trade for a 2wd 4Runner with 235k miles but it’s axle flipped and what looks to be a suspension lower on the front. I can send some photos of both but can send more extensive photos when I get off work. My question is for both the front and the back, what do I need to do to get it back to stock? The rear is the one I need more info on as I already bought oem springs for the front but will take advice and instruction on what to do for the front end too. The rear has what looks like reversed shackles and the leaf springs are under the axle. How would I go about reversing that and are there any diagrams anywhere that I can look at while working on it in the shop so I don’t screw anything up? Thanks in advance.
EDIT: he didn’t cut into the frame
#2
The shackles are likely factory position. Though I don't see any pics of them. A common mod was to flip the shackles, to eliminate the block between the axle and spring. It looks like there are just some blocks above the springs on yours, and the spring perches, etc, are still in the stock location, so, putting the axle back under the spring shouldn't be too difficult. Just need the blocks, and correct u-bolts. (I suspect the plates that are there are stock as well.... but, wouldn't hurt to grab them from whatever donor vehicle you get the blocks and such from.)
Front is likely just lowering springs. So, swapping them out should solve that problem.
Front is likely just lowering springs. So, swapping them out should solve that problem.
#3
The shackles are likely factory position. Though I don't see any pics of them. A common mod was to flip the shackles, to eliminate the block between the axle and spring. It looks like there are just some blocks above the springs on yours, and the spring perches, etc, are still in the stock location, so, putting the axle back under the spring shouldn't be too difficult. Just need the blocks, and correct u-bolts. (I suspect the plates that are there are stock as well.... but, wouldn't hurt to grab them from whatever donor vehicle you get the blocks and such from.)
Front is likely just lowering springs. So, swapping them out should solve that problem.
Front is likely just lowering springs. So, swapping them out should solve that problem.
#4
#5
EDIT: it doesn’t look like it has blocks, should I either get oem blocks or use the 3inch leveling blocks I bought?
Last edited by oldustrr; 12-28-2023 at 11:16 AM.
#6
#7
Download the factory service manual for your truck from here. Lots of useful information in there.
Trending Topics
#8
There's not really a "differential drop" for a solid axle. You probably should get control arm drop brackets, but you can try 3" without. Your control arm angles will be steeper and you risk a harsher ride and death wobble from insufficient caster. Also your axle will get pulled to one side of the vehicle with track bar angle correction
#9
There's not really a "differential drop" for a solid axle. You probably should get control arm drop brackets, but you can try 3" without. Your control arm angles will be steeper and you risk a harsher ride and death wobble from insufficient caster. Also your axle will get pulled to one side of the vehicle with track bar angle correction
The following users liked this post:
Keith_L (01-01-2024)
#10
I think it did? Because it’s lowered I haven’t been able to get all the way in there but after work today I will try again. Also I am not sure if my leaf springs need replaced, do they look shot or is that just surface rust? Thanks for all the help!
EDIT: it doesn’t look like it has blocks, should I either get oem blocks or use the 3inch leveling blocks I bought?
