I started to smell gas and was having some prolonged cranking before morning starts. Found a leaking fuel line right underneath the driver seat area.
It looks like the fuel line snaps together in multiple sections, but I cannot determine from the Mopar OeM site which line is which. It’s a terrible diagram and it doesn’t seem to be laid out from tank to injectors, for example.
Is anyone familiar how to read the parts diagram?
There is a line that emerges from the fuel tank area… that line is fine… I need the one that snaps onto that one, clips onto the frame, and then snaps onto another line that runs up into the engine area. So assuming the fuel line is only 3 sections, I need the middle one.
Anyone been there done that? Could go to dealer but their parts counter hours don’t line up with my work schedule.

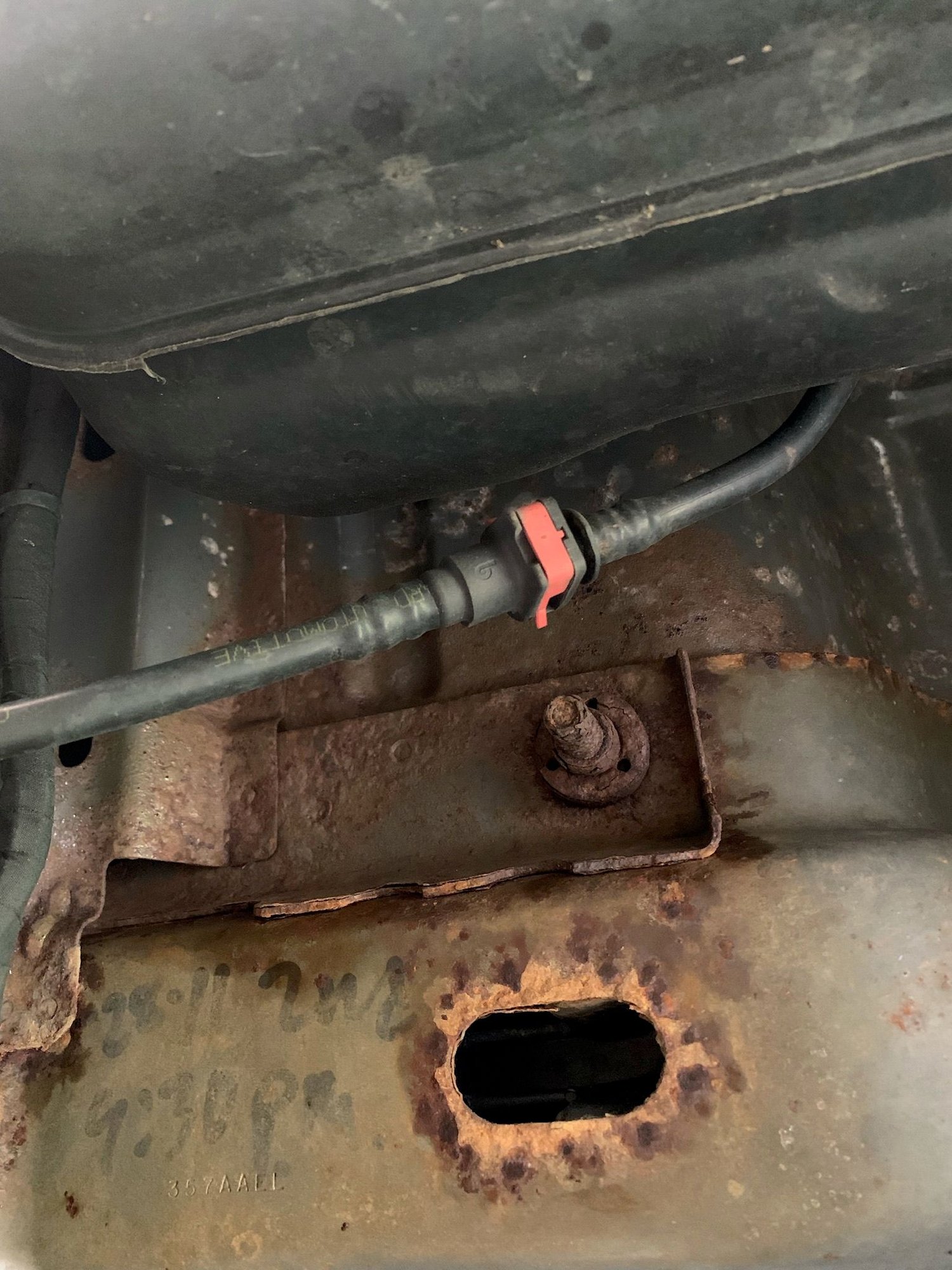

The rear connection to the section from the tank

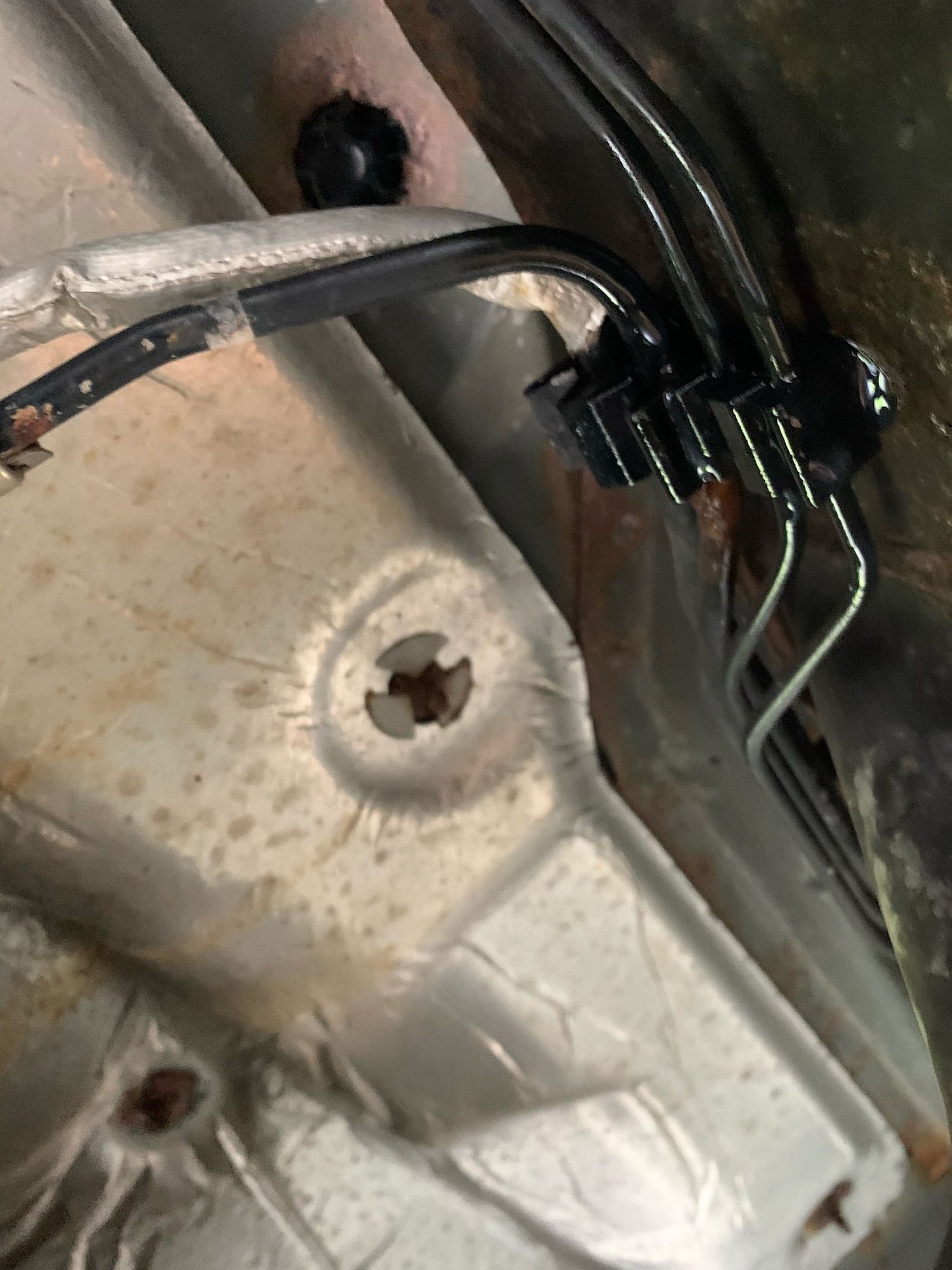

The connection to the line that goes up towards engine

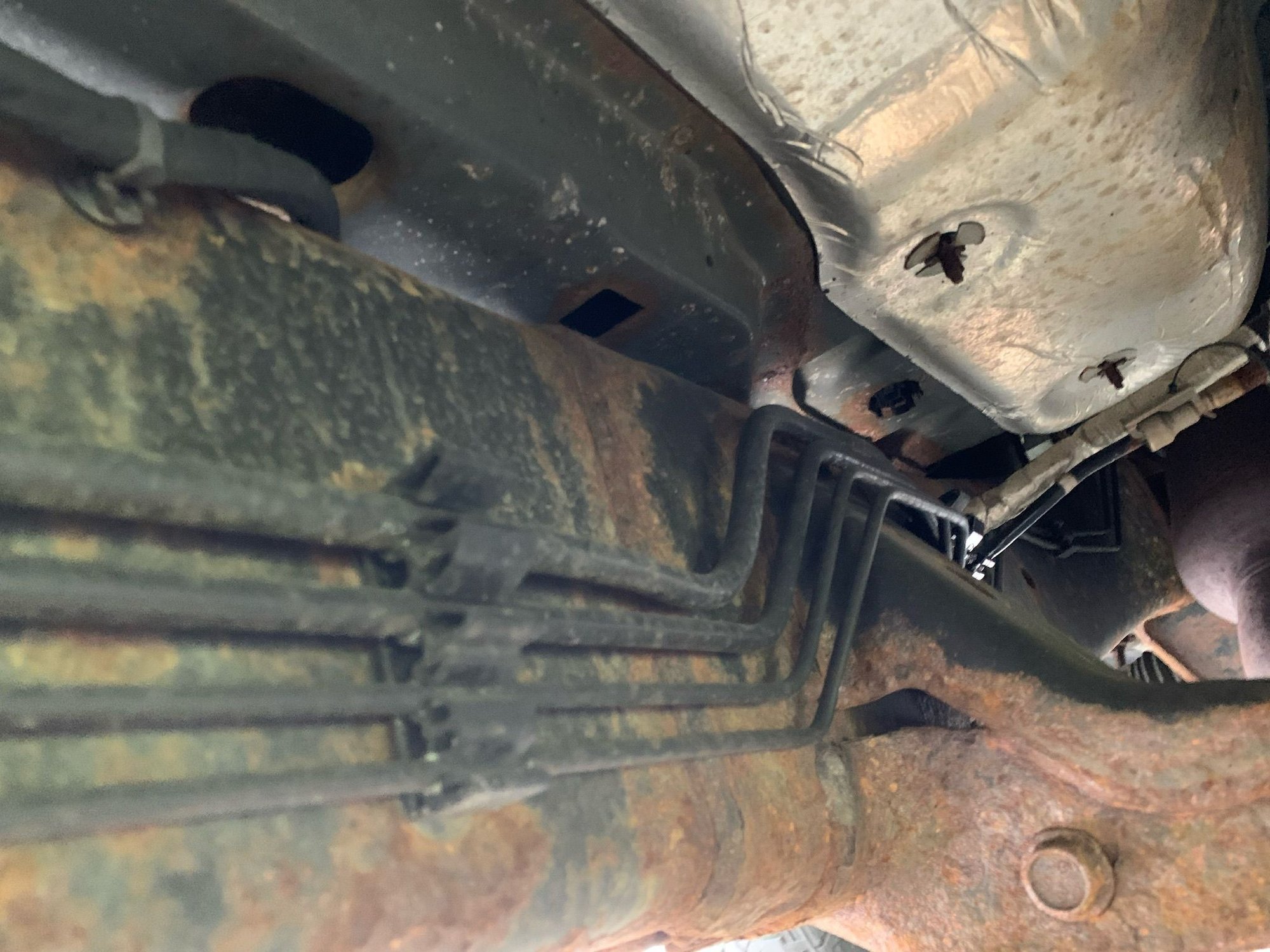

Looking towards the front- the leak is just out of view on the right

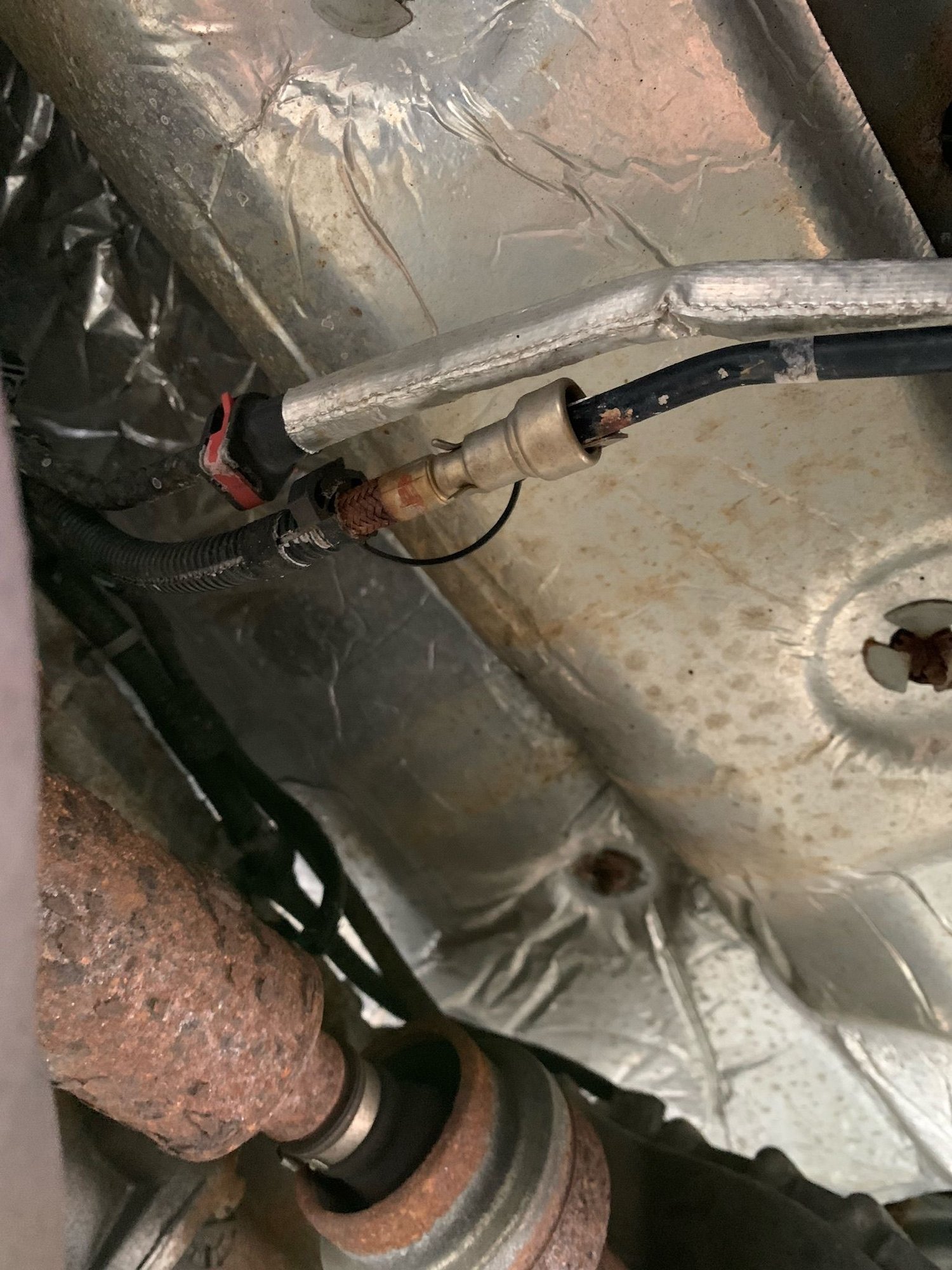

The leak area



What year is your truck? What engine? 2 or 4 wheel drive might be relevant as well.



Yeah that might help. It’s in my profile but that doesn’t show. Thanks for asking
2011 5.7L Sport Quad Cab 4x4 3.92 locking diff 32 gal fuel tank

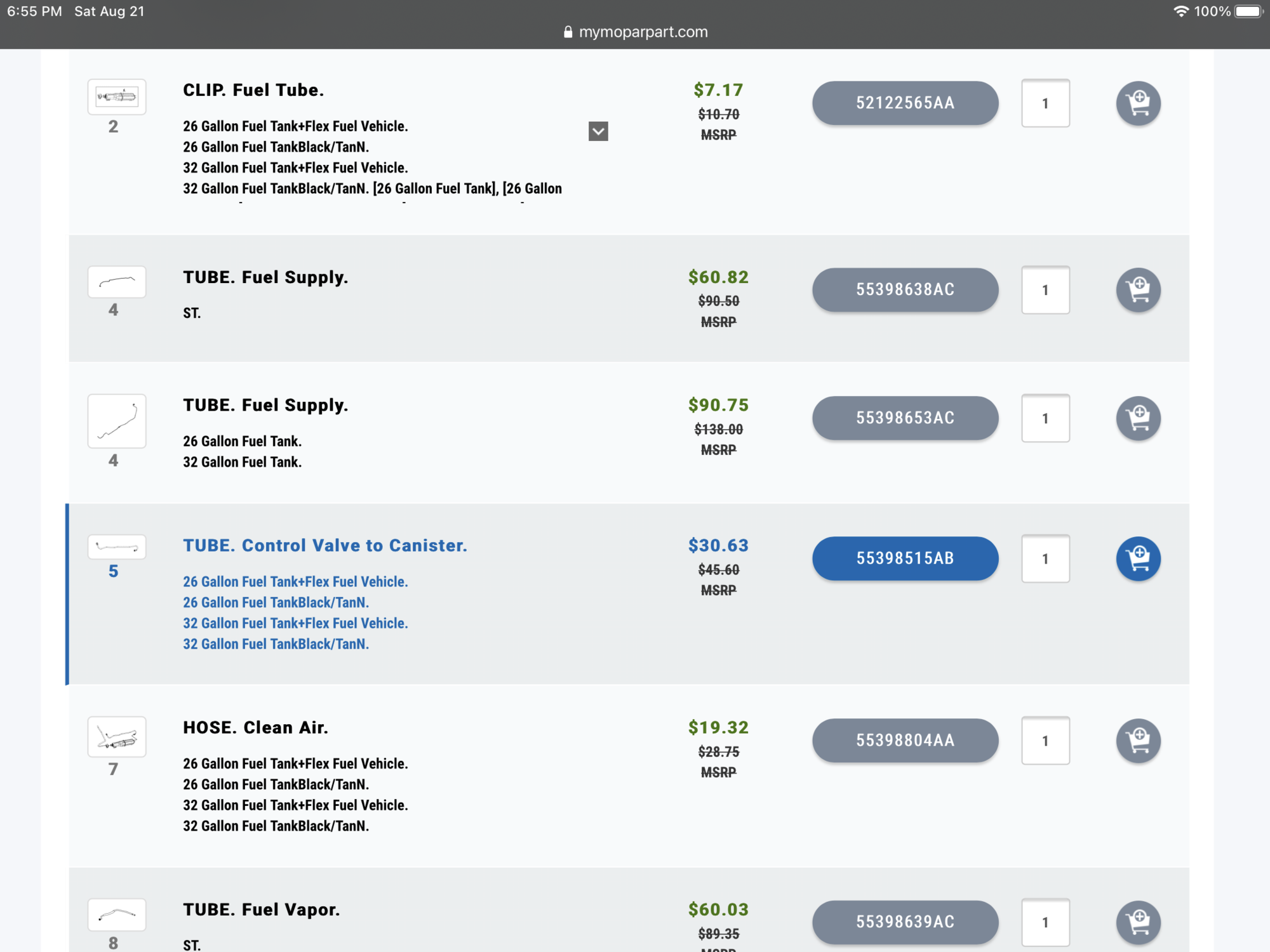

This one?



That hand drawing doesn’t look too close to it but who knows. I can’t find a real image of it to be sure.
I’m going to take it out and take a picture that might help.
