I'm trying to determine if there is a short to high on the wire harness of my RAM.
Can someone reference a circuit diagram related to the Engine Coolant Temperature Sensor and
let me know what are the connection points to connector C1 of the PCM?
It does? Ooops. Sorry 'bout that. I hadn't check it that far. I mostly work on the older stuff...
Might try check on EBay, and see if you can find a service manual on a disk, or PDF download. They are invaluable when troubleshooting the newer stuff.

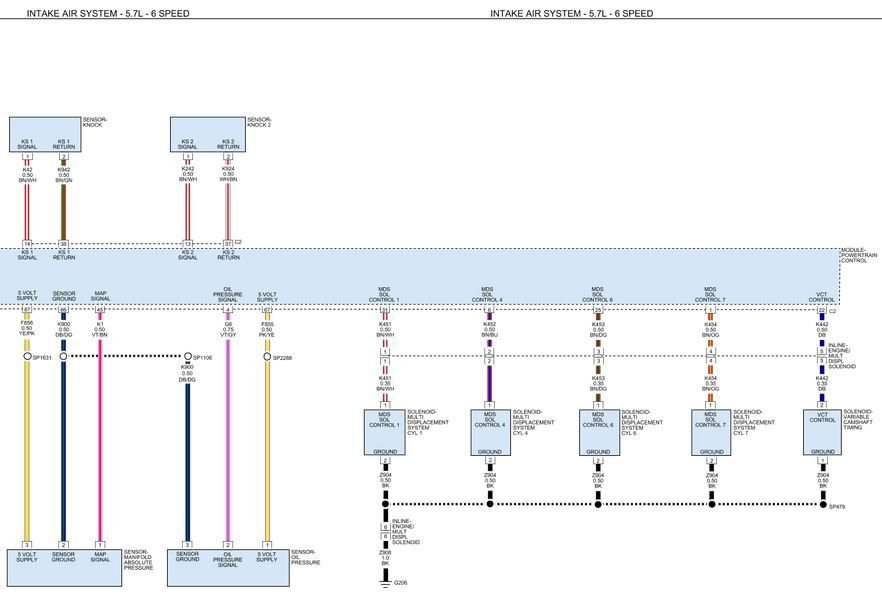

I found a circuit, so here it is for anyone to enjoy... 2017 Ram 5.7, 6 speed, PCM C2 connector circuit part 1 2017 Ram 5.7, 6 speed, PCM C2 connector circuit part 2
P0118 ect
PCM Connector 2 Circuit Drawing
