Need some help, my kids tore down the heater lines (from heater core to motor) before I could snap a picture of how they ran. So now I am stuck with a pile of hoses, hose clamps, ect. If someone has this (front and rear) proair system it would be nice if you could post a picture on how it runs from Heater core out.

This is on a 97 Dodge Ram 2500 Mark III Conversion 5.2l

Thanks



well 4th was a charm, finally found a dealership that had enough info for me to put this puzzle together. Along with some poor shots from ebay posters. Hopefully someone else can post an image of the dual air system under hood.

Later I will put what I did find together and will keep pushing a company I got a hold of to send me a parts layout also.

Now if I could just figure out the High only issue (already replaced a load of parts) then will be good to go.



I am out of town right now, but when I get back tomorrow, I can get you some pix



That would be great

Thanks

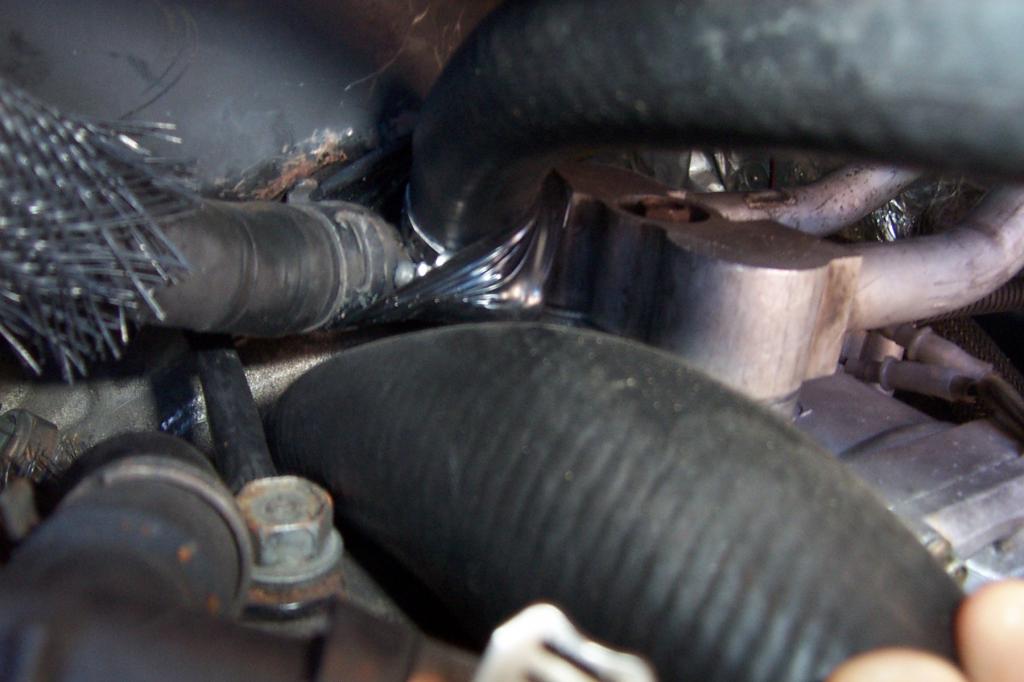

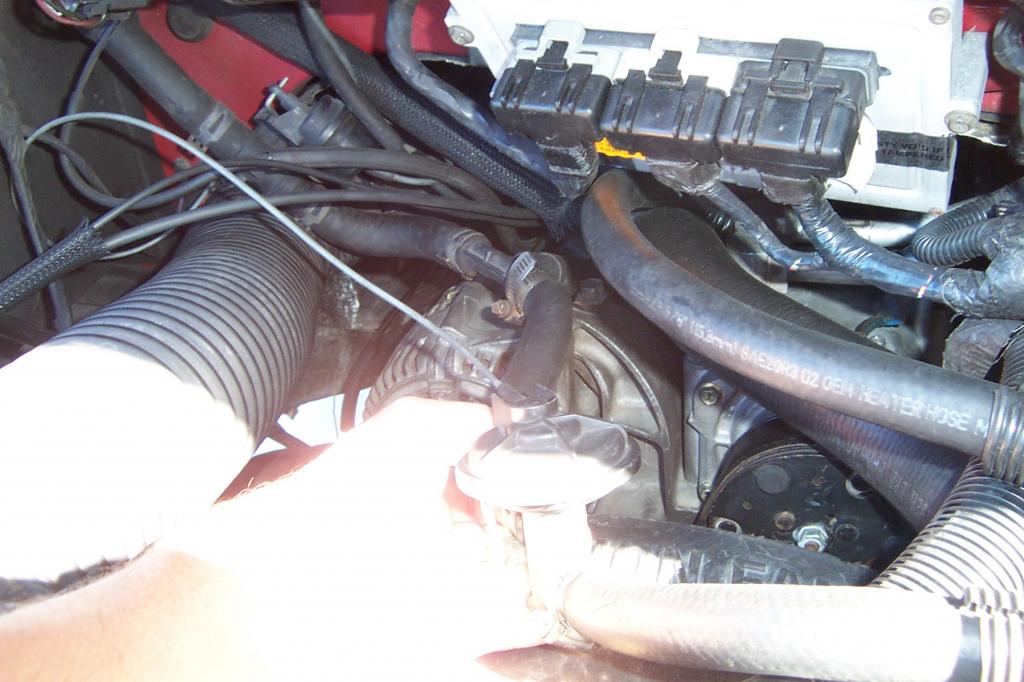

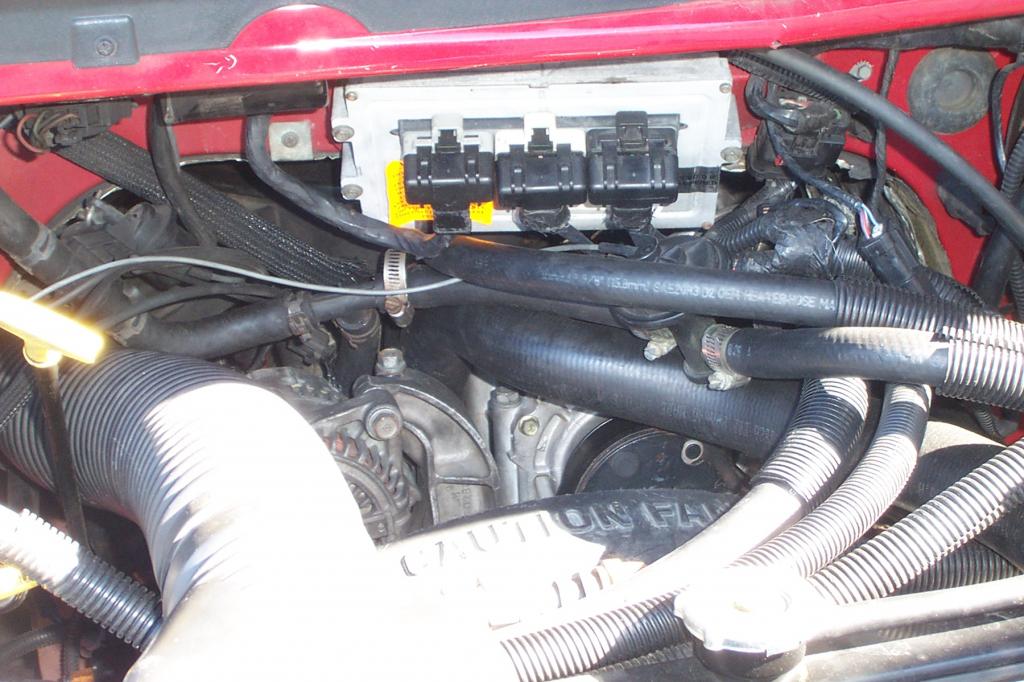

I hope these help!





Is this from your 2003? If so then its a different setup then what I have. Frustrated as this is the only thing holding me up from adding coolant and get it running again.



Sorry bro, yes I have an 03...



It's all good. You picture did help me to figure what they had run wrong before I tore it down. Along with some nice people who have some of these dual air setup Dodges for sale via craigslist I was able to trace down the rest I needed to know.

Sadly for 97 there were 4 different setups they ran with rear air, just happy I have the 1 out of 3 that are mainly Hose and not Metal line (this is 1 out of 4 it's more commonly found on the Fords and the passenger vans from Dodge)

Still working on getting the diagram from ProAir (just have to get the darn numbers off the rear system once it warms up some here cause its 17 above outside)

Thanks for the pictures and I will post the diagram once I get it if any one wants or needs (might have to make it into a sticky post maybe)
