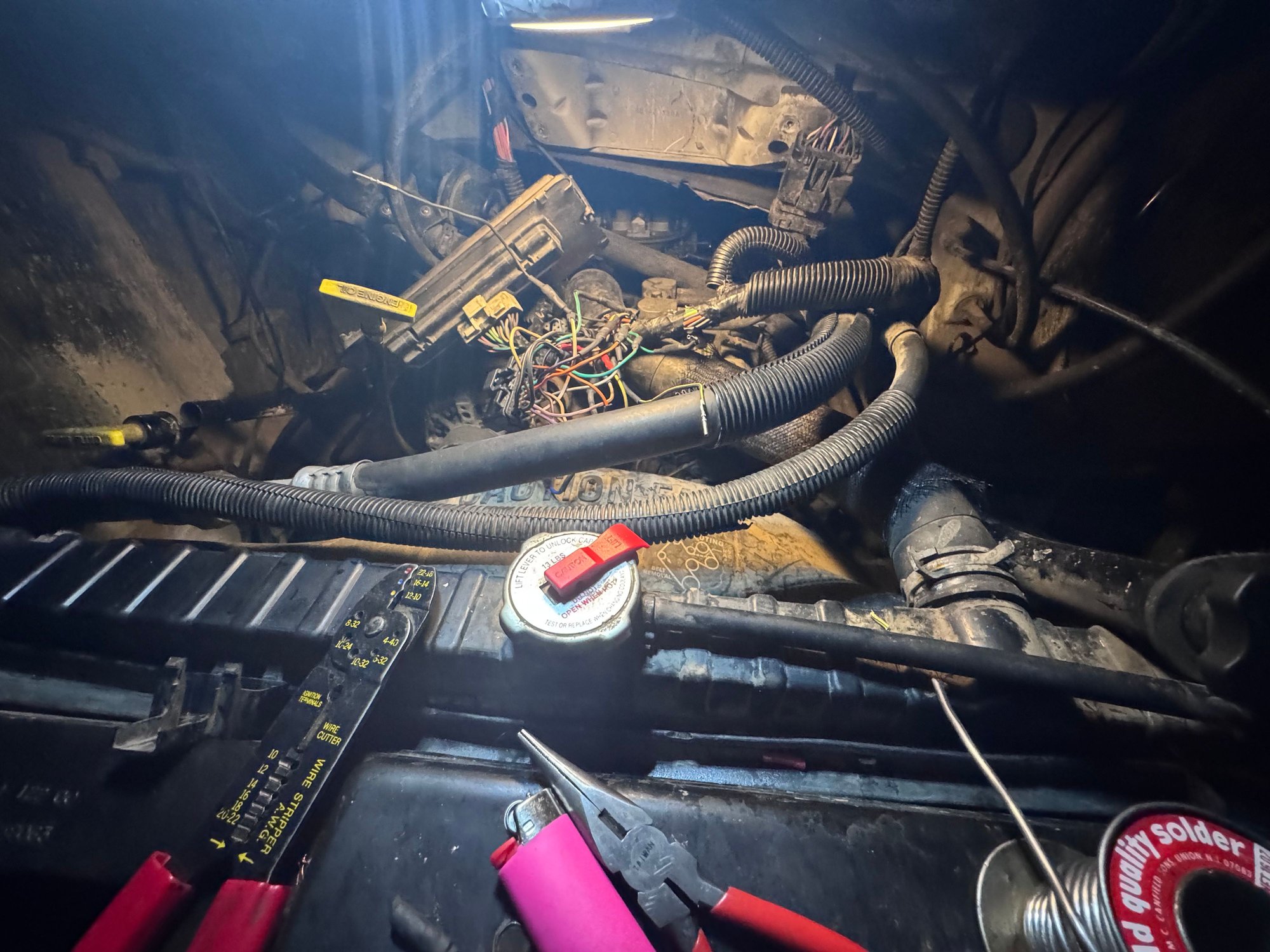

Rainbow spaghetti!!! Yayyyy


2000 B1500 cargo shorty with a 5.2L/ 318cc.

So I was changing out my faulty PCM and in so doing connector #1 fell apart on me…
basically building it from one I found at the local yard, but I only have a FSM for the 2000 Ram trucks. Nearly identical, but only nearly.
And the previous owner did some mix and match that I can’t even get into right now as it’s 3am and I need this van tomorrow for work… currently in a gas station (work van, so I have all my tools, luckily).

Truck FSM has fused B+ as RD/WT (don’t have) at 13, 13 is plugged.
Van connector has 22 24 25 open and DG/BK, BK/DG, BK/YL left over…

also I believe OR is 5v reference supply, correct?

on the truck OR is PTO switch which obviously don’t have, and the 5v reference is at 17.

3:28am and I’m praying there’s a wire wizard that can’t sleep rn…

THANK YOU!!!



Did you get it figured out, or are you still stuck at the gas station?



It still there. Heading there now. Still need pin out for PCM connector#1 for 5.2 B-1500.



Try here.

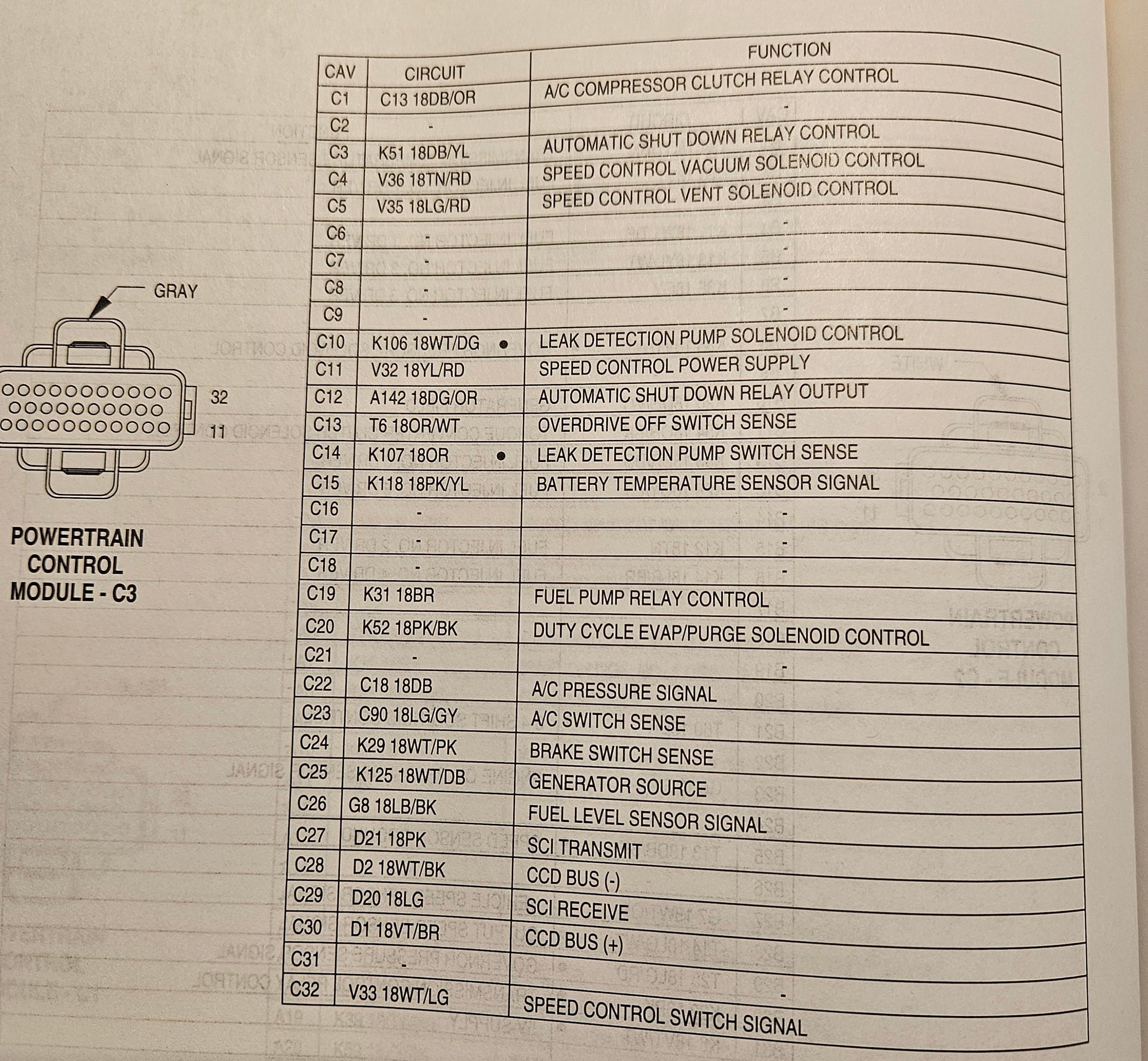

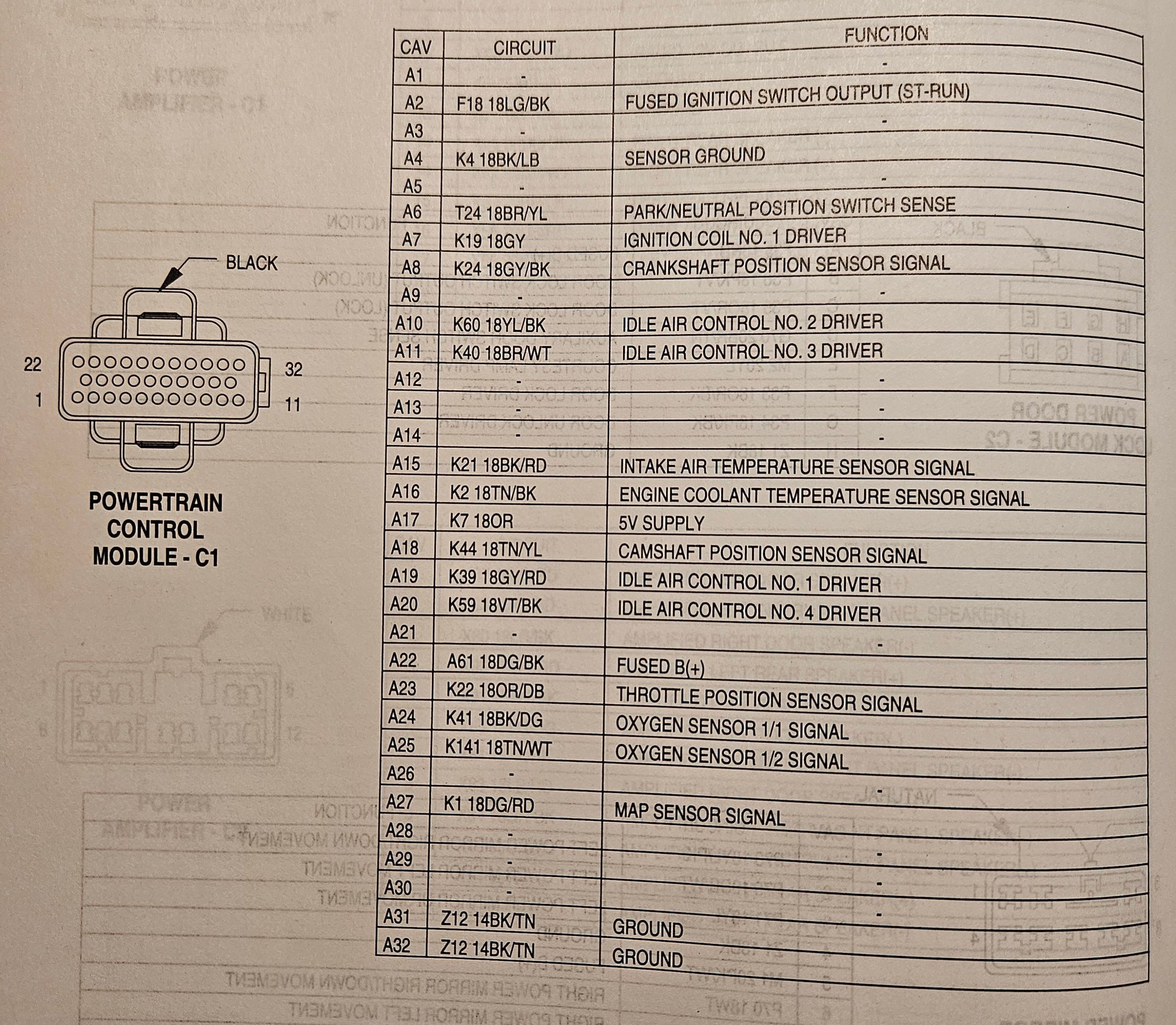

Here are all 3 PCM connector pinouts, right out of my 2000 FSM.

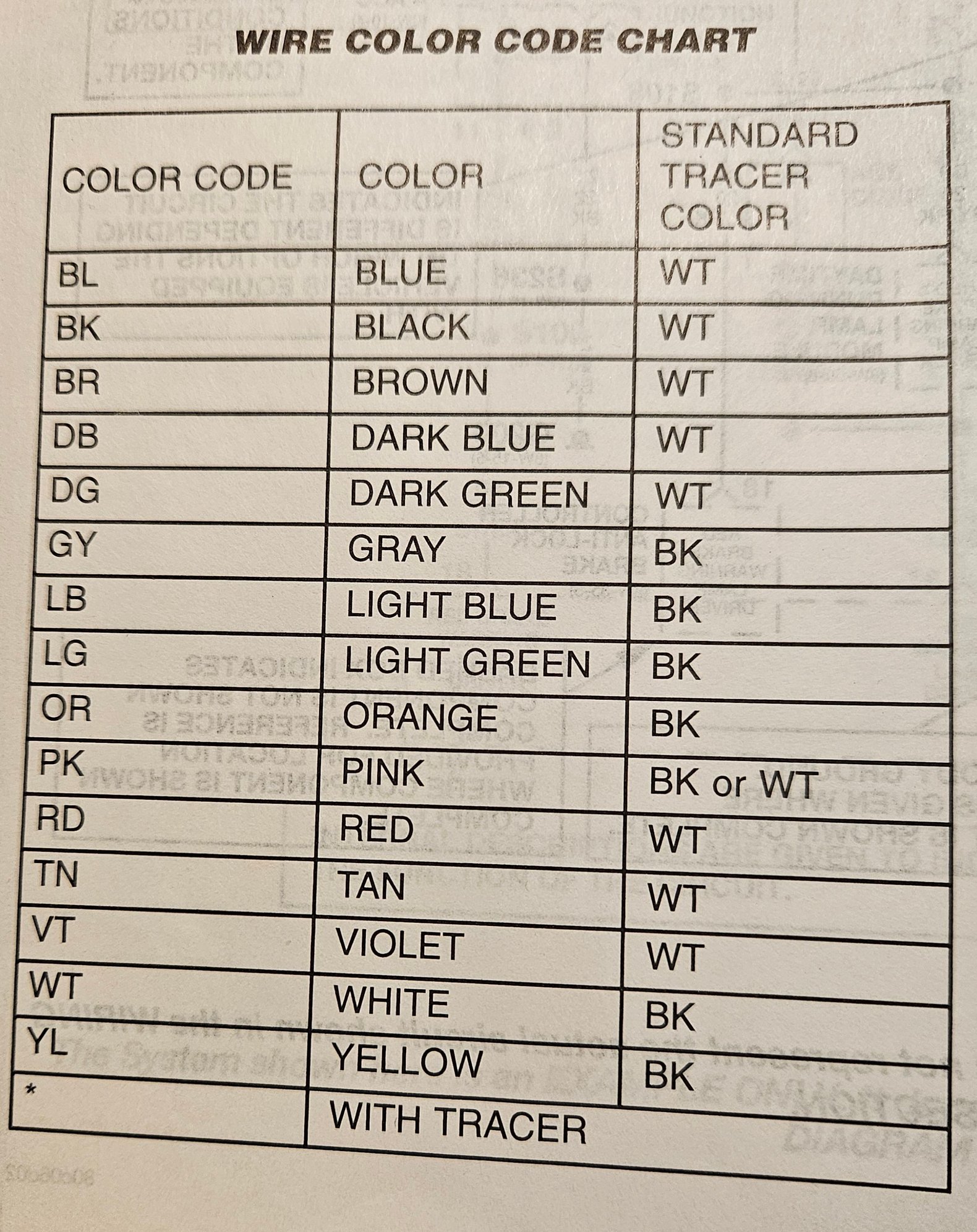

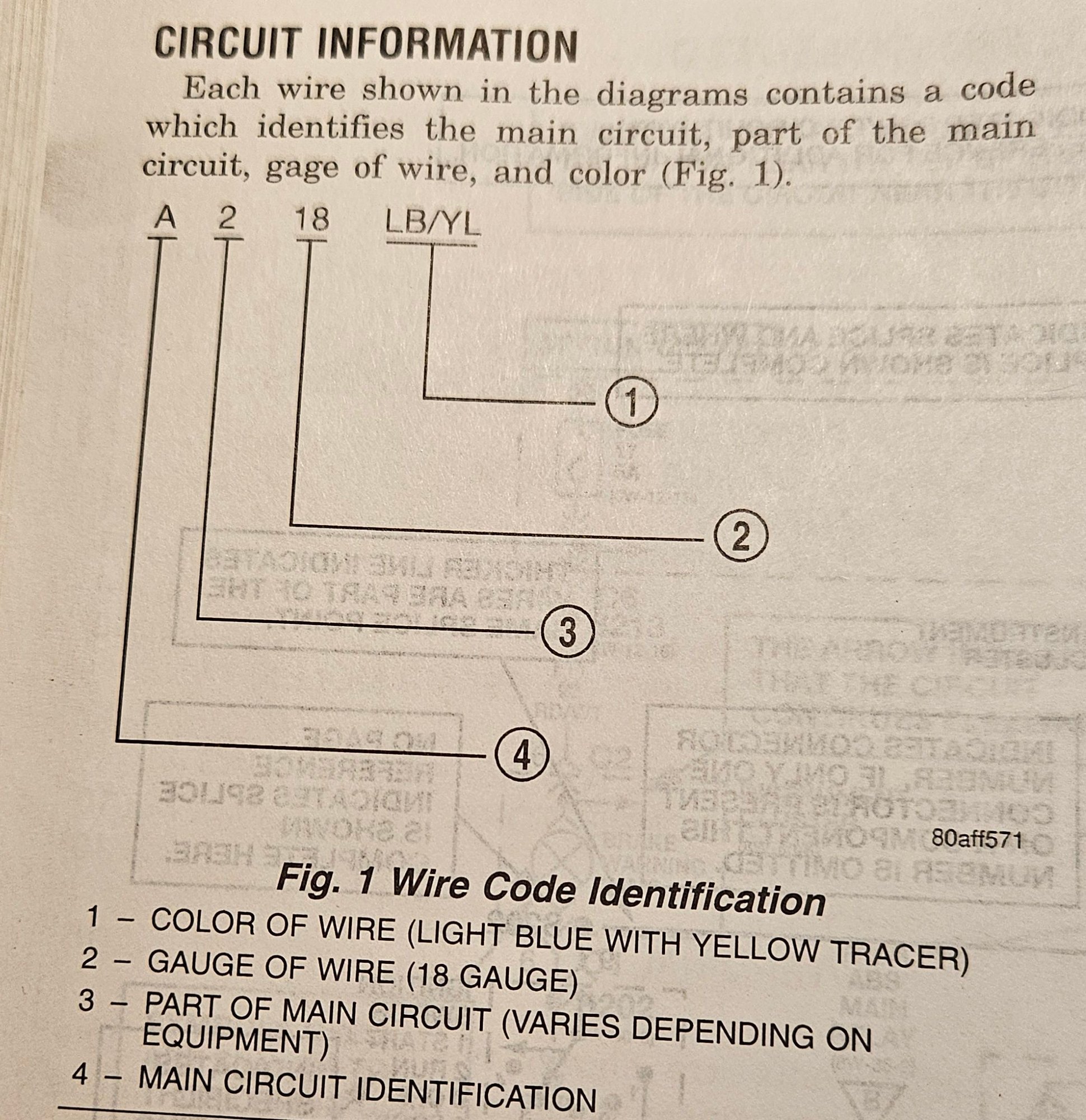

Just in case you need them, here is the circuit information description, and color code chart.
