Custom Bumper Design

  #1
Old 03-16-2009, 11:48 PM
95_318SLT's Avatar
95_318SLT
95_318SLT is offline
Champion
Thread Starter
Join Date: May 2008
Location: Apex, NC
Posts: 4,842
Likes: 0
Received 0 Likes on 0 Posts
Default Custom Bumper Design

So I got the idea from a link in the FAQs section to design a new bumper for my truck. This is what I have so far that I drew up in Solidworks...

Bumper1.jpg?t=1237261375

Bumper2.jpg?t=1237261394

Bumper3.jpg?t=1237260830

It's not a completed design, I still need to come up with mounts and I also want to incorporate a built in trailer hitch. The structural parts of the bumper are going to be made of 1/4 inch plate steel except for the spare tire mount which will be 1 inch diameter, 1/4 inch walled tube steel. The cosmetic parts (basically the bottom part that is angled in) is going to be 3/16 inch plate steel.

I also want to design a similar front bumper that will incorporate a skid plate, brush guard and winch.

I'm going to start this weekend by building a mock up of the rear bumper out of plywood for test fitting purposes (and to design the mounts and take measurments for the trailer hitch).

What do ya'll think?


Last edited by 95_318SLT; 03-17-2009 at 02:06 AM.
  #2
Old 03-17-2009, 12:13 AM
Crazy4x4RT's Avatar
Crazy4x4RT
Crazy4x4RT is offline
Hall Of Fame
Join Date: Aug 2007
Location: NM
Posts: 10,912
Likes: 0
Received 0 Likes on 0 Posts
Default

Looks Sweet! One day I will do custom bumpers. If you wanted I could post up custom bumpers built on 1st gens. The other forum I'm on had a few. Maybe for others?


Last edited by Crazy4x4RT; 03-17-2009 at 12:27 AM.
  #3
Old 03-17-2009, 01:34 AM
95_318SLT's Avatar
95_318SLT
95_318SLT is offline
Champion
Thread Starter
Join Date: May 2008
Location: Apex, NC
Posts: 4,842
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Crazy4x4RT View Post
If you wanted I could post up custom bumpers built on 1st gens. The other forum I'm on had a few. Maybe for others?
Yeah go for it!

  #4
Old 03-17-2009, 10:15 AM
Crazy4x4RT's Avatar
Crazy4x4RT
Crazy4x4RT is offline
Hall Of Fame
Join Date: Aug 2007
Location: NM
Posts: 10,912
Likes: 0
Received 0 Likes on 0 Posts
Default

Here are a few! All custom made!

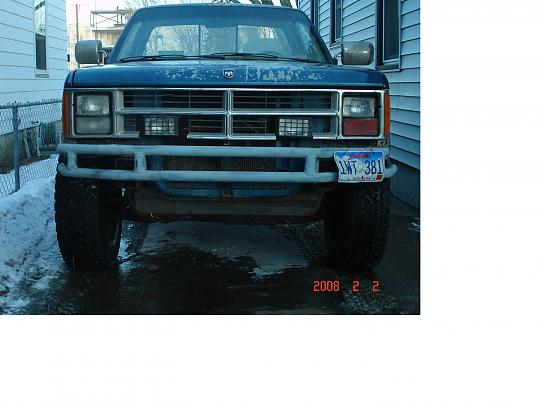

Attached Thumbnails Custom Bumper Design-6b_1.jpg   Custom Bumper Design-9f0360ba.jpg   Custom Bumper Design-3513460009_medium.jpg   Custom Bumper Design-3513460008_medium.jpg   Custom Bumper Design-bumper3.jpg


Last edited by Crazy4x4RT; 09-18-2011 at 01:53 AM.
  #5
Old 03-17-2009, 10:18 AM
Crazy4x4RT's Avatar
Crazy4x4RT
Crazy4x4RT is offline
Hall Of Fame
Join Date: Aug 2007
Location: NM
Posts: 10,912
Likes: 0
Received 0 Likes on 0 Posts
Default

A few more! The first one is my favorite!

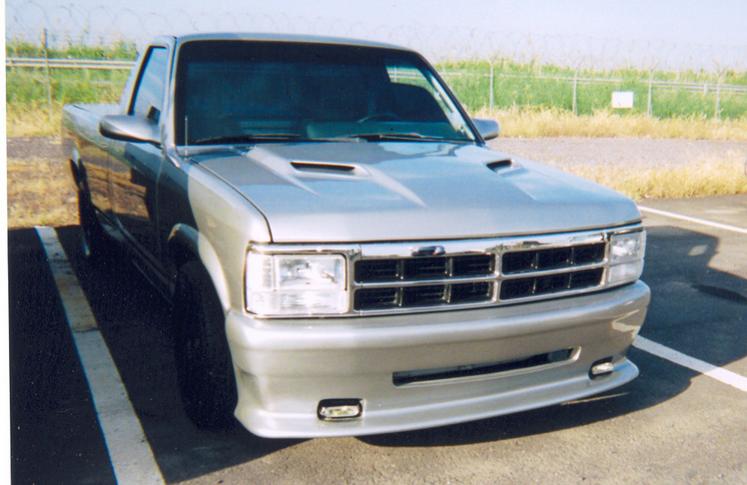

The last one is for the street trucks! I'm not sure who makes this one, But I'm sure we have it listed under the parts links! I've seen several of these ones on trucks pics online. Also for more custom bumpers and more tons more pics on www.cardomain.com











Attached Thumbnails Custom Bumper Design-finishedbumper1.jpg   Custom Bumper Design-dak-202.jpg   Custom Bumper Design-dodge_dakota1_2.jpg   Custom Bumper Design-rearbumper.jpg   Custom Bumper Design-drop1.jpg


Last edited by Crazy4x4RT; 10-27-2010 at 12:38 PM.
  #6
Old 03-17-2009, 01:20 PM
Blue 12's Avatar
Blue 12
Blue 12 is offline
Professional
Join Date: Oct 2008
Location: NB Canada
Posts: 241
Likes: 0
Received 0 Likes on 0 Posts
Default

i really like that! i need a place to put a spare, if i put one in the box, its half full. is it made wide enough to get the tailgate down?

nice fab work Crazy

  #7
Old 03-17-2009, 02:51 PM
95_318SLT's Avatar
95_318SLT
95_318SLT is offline
Champion
Thread Starter
Join Date: May 2008
Location: Apex, NC
Posts: 4,842
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Blue 12 View Post
i really like that! i need a place to put a spare, if i put one in the box, its half full. is it made wide enough to get the tailgate down?
I know! I like the look of it mounted up in the bed like some people have it, but it makes the bed useless. When I get this design done my truck will be too long to fit in the garage, but oh well. And yes, it will be wide enough to get the tailgate down, which is why I designed it to swing out.

  #8
Old 03-17-2009, 06:52 PM
Blue 12's Avatar
Blue 12
Blue 12 is offline
Professional
Join Date: Oct 2008
Location: NB Canada
Posts: 241
Likes: 0
Received 0 Likes on 0 Posts
Default

i couldnt tell if the pivot point was wide enough by the pics. just a suggestion, maybe make it a little beefier on the pivot side. i would extend the shaft all the way down to the bottom on the pivot side instead of just having it attached to the top of the bumper, and maybe extend it up a bit...ill do a crude drawing to explain it better. we dont want it twisting and bending every time you swing it out to put the tailgate down.
i might have to copy something like that... only mount it to the frame somehow to avoid making the whole bumper.

  #9
Old 03-17-2009, 07:23 PM
Blue 12's Avatar
Blue 12
Blue 12 is offline
Professional
Join Date: Oct 2008
Location: NB Canada
Posts: 241
Likes: 0
Received 0 Likes on 0 Posts
Default

Name:  Bumperidea.jpg
Views: 803
Size:  45.4 KB

  #10
Old 03-17-2009, 07:34 PM
95_318SLT's Avatar
95_318SLT
95_318SLT is offline
Champion
Thread Starter
Join Date: May 2008
Location: Apex, NC
Posts: 4,842
Likes: 0
Received 0 Likes on 0 Posts
Default

You should go ahead and copy it, lol, thats what I did :P

Here is the picture of the truck I got the design from (my design is not much different, but there will be a noticable difference when I'm done)

The way he designed his spare tire mount tells me it should work without more reinforcement, but it will be something I'll keep in mind.

Attached Thumbnails Custom Bumper Design-open-2.jpg

Last edited by 95_318SLT; 03-19-2009 at 01:30 AM.
