axle seal or no? (4x4) Pics...
Thread Starter
|
Veteran
Joined: Oct 2009
Posts: 261
Likes: 0
From: Corpus Christi, TX
axle seal or no? (4x4) Pics...
ok so ive noticed a slow leak on the front axle passenger side...
does anybody know if this is an axle seal? or something else? cause it kinda looks like the axle seal would be where it goes in closer to differential...
this leak is coming from the block area...

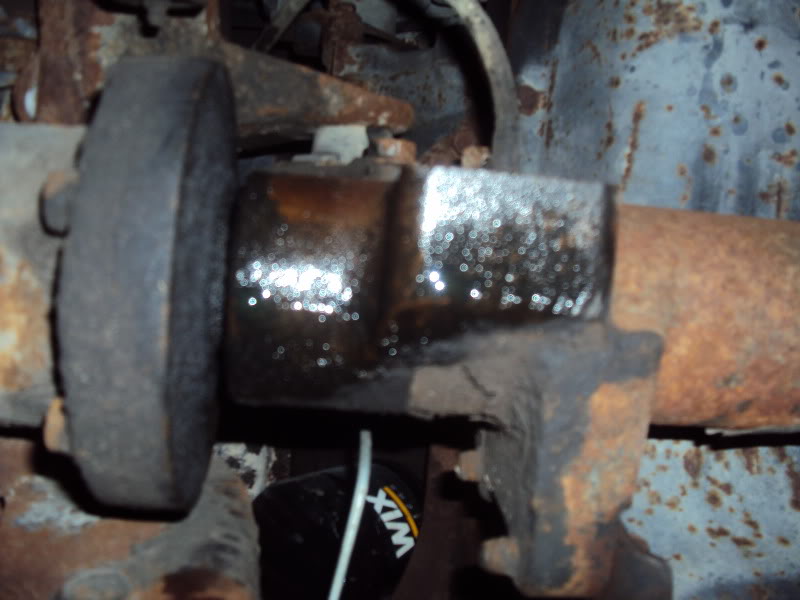

heres some pics...
lookin from front

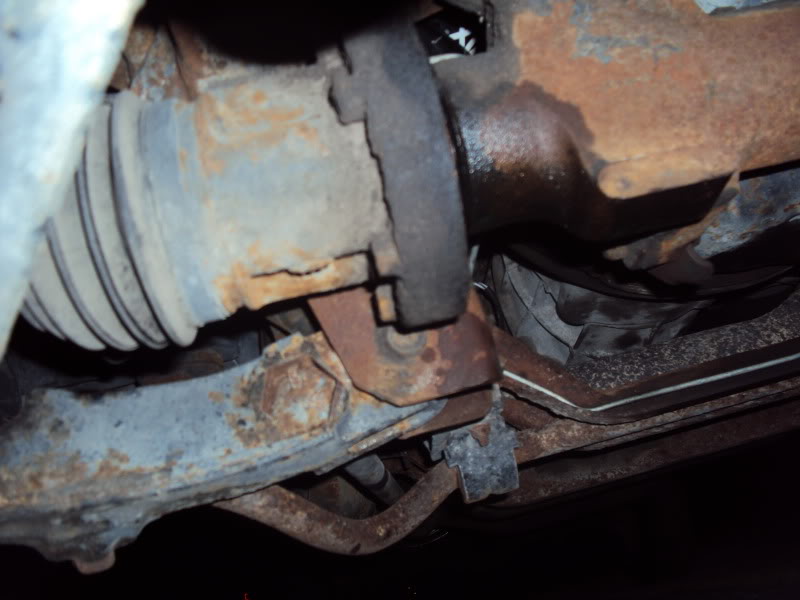

and heres from straight under...
does anybody know if this is an axle seal? or something else? cause it kinda looks like the axle seal would be where it goes in closer to differential...
this leak is coming from the block area...
heres some pics...
lookin from front
and heres from straight under...
Thread Starter
|
Veteran
Joined: Oct 2009
Posts: 261
Likes: 0
From: Corpus Christi, TX
so i gotta take the differental cover off to pull that out???
and do i have to take the bolts off on the part with the cv goes into? looks like 4 of them on housing by leak, side closer to tire
and do i have to take the bolts off on the part with the cv goes into? looks like 4 of them on housing by leak, side closer to tire
Professional
Joined: Jul 2006
Posts: 104
Likes: 0
yep axle seal. easy fix heres how
unbolt the big axle nut while the truck is still on the ground
remove the 6 14mm nuts holding the axle to the flange at the diff
remove the diff cover
unbolt 8mm bolt holding the center pin in place
MAKE SURE YOU DONT BREAK IT OR YOUR GOING TO HAVE ONE HELL OF A TIME
make sure its not going to fall into the diff housing itself, its a pain to get in and out if you do.
push said axle toward the center of the truck, the C clip will fall out.
remove C clip
axle should be able to come out now, pull back and wiggle it out.
use a seal puller to remove seal,
install is reverse of removal.
unbolt the big axle nut while the truck is still on the ground
remove the 6 14mm nuts holding the axle to the flange at the diff
remove the diff cover
unbolt 8mm bolt holding the center pin in place
MAKE SURE YOU DONT BREAK IT OR YOUR GOING TO HAVE ONE HELL OF A TIME
make sure its not going to fall into the diff housing itself, its a pain to get in and out if you do.
push said axle toward the center of the truck, the C clip will fall out.
remove C clip
axle should be able to come out now, pull back and wiggle it out.
use a seal puller to remove seal,
install is reverse of removal.
Veteran
Joined: Aug 2007
Posts: 334
Likes: 0
From: NE PA
yep axle seal. easy fix heres how
unbolt the big axle nut while the truck is still on the ground
remove the 6 14mm nuts holding the axle to the flange at the diff
remove the diff cover
unbolt 8mm bolt holding the center pin in place
MAKE SURE YOU DONT BREAK IT OR YOUR GOING TO HAVE ONE HELL OF A TIME
make sure its not going to fall into the diff housing itself, its a pain to get in and out if you do.
push said axle toward the center of the truck, the C clip will fall out.
remove C clip
axle should be able to come out now, pull back and wiggle it out.
use a seal puller to remove seal,
install is reverse of removal.
unbolt the big axle nut while the truck is still on the ground
remove the 6 14mm nuts holding the axle to the flange at the diff
remove the diff cover
unbolt 8mm bolt holding the center pin in place
MAKE SURE YOU DONT BREAK IT OR YOUR GOING TO HAVE ONE HELL OF A TIME
make sure its not going to fall into the diff housing itself, its a pain to get in and out if you do.
push said axle toward the center of the truck, the C clip will fall out.
remove C clip
axle should be able to come out now, pull back and wiggle it out.
use a seal puller to remove seal,
install is reverse of removal.
he he....Sounds like you've done this more than once...
Rookie
Joined: Nov 2009
Posts: 55
Likes: 0
Trending Topics
Champion
Joined: May 2008
Posts: 4,839
Likes: 5
From: Apex, NC
yep axle seal. easy fix heres how
unbolt the big axle nut while the truck is still on the ground
remove the 6 14mm nuts holding the axle to the flange at the diff
remove the diff cover
unbolt 8mm bolt holding the center pin in place
MAKE SURE YOU DONT BREAK IT OR YOUR GOING TO HAVE ONE HELL OF A TIME
make sure its not going to fall into the diff housing itself, its a pain to get in and out if you do.
push said axle toward the center of the truck, the C clip will fall out.
remove C clip
axle should be able to come out now, pull back and wiggle it out.
use a seal puller to remove seal,
install is reverse of removal.
unbolt the big axle nut while the truck is still on the ground
remove the 6 14mm nuts holding the axle to the flange at the diff
remove the diff cover
unbolt 8mm bolt holding the center pin in place
MAKE SURE YOU DONT BREAK IT OR YOUR GOING TO HAVE ONE HELL OF A TIME
make sure its not going to fall into the diff housing itself, its a pain to get in and out if you do.
push said axle toward the center of the truck, the C clip will fall out.
remove C clip
axle should be able to come out now, pull back and wiggle it out.
use a seal puller to remove seal,
install is reverse of removal.
That looks more to me like a leaking rear main seal than a leaking oil pan gasket, but either way, good spot! Hard to say which without looking closer at it! But you may want to go ahead and remove the entire front axle housing and pull the oil pan out and fix both at the same time.
Last edited by 95_318SLT; Dec 10, 2009 at 04:14 PM.
Veteran
Joined: Sep 2009
Posts: 426
Likes: 0
From: new glasgow, nova scotia
um i have a question. that looks like the passenger side of the front axle. why is there no automatic locking hub setup on it? there should be a plate attached with vacuum lines and a fork to connect the outer axle with the intermediate axle. is that just on the 87-91?
