Heater Core Redux
#1
Heater Core Redux
Well, it's been five years - and my new core is seeping after only 5 years.
I can tell it is; as soon as the temp gauge bumps up ANY the windshield fogs up in 60F weather.
So I'm rebuilding a HVAC box to swap into the Dakota.
Here's some of the rebuild pictures, in series.

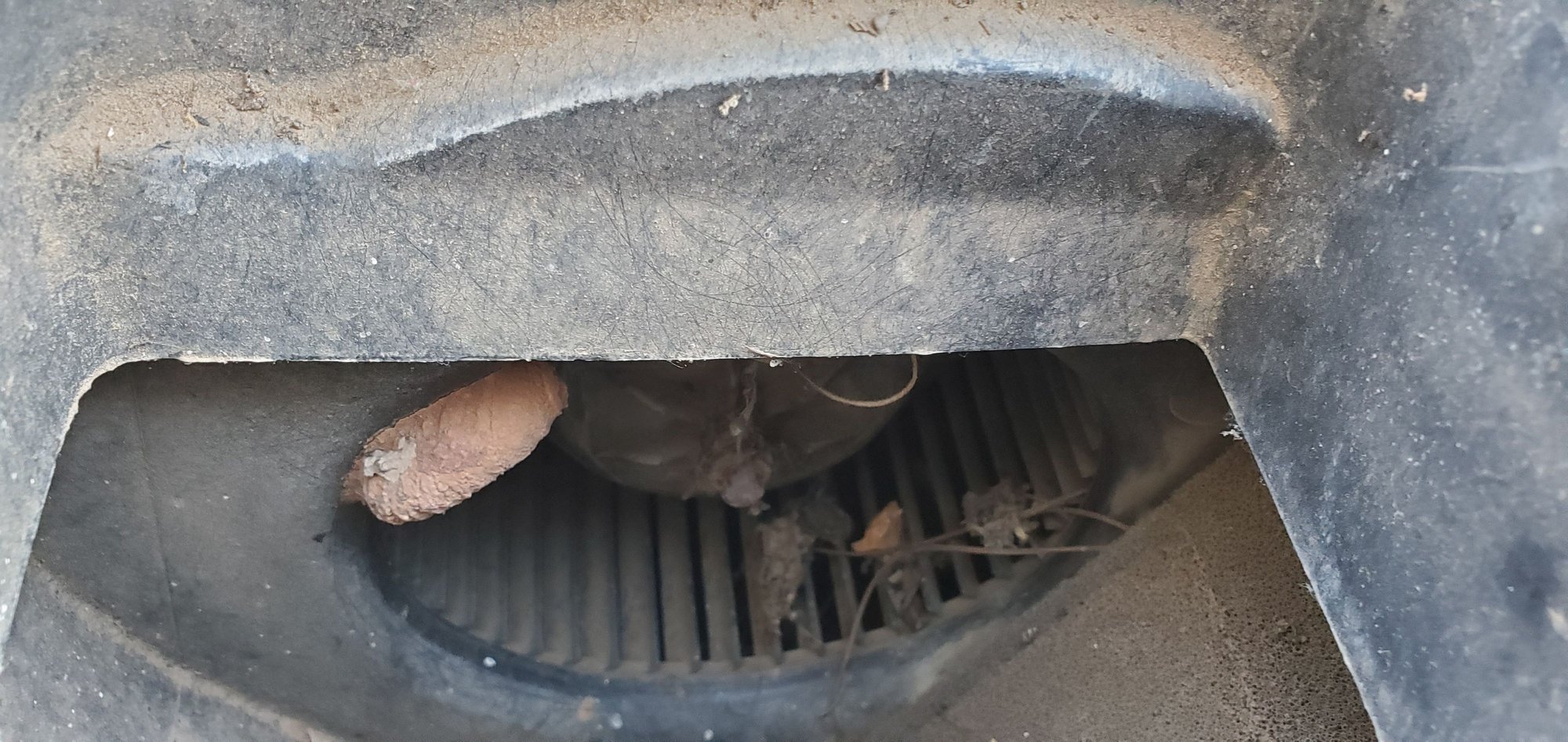

Most of the mud dauber nests were not pictured; I removed close to 10 pounds of mud (!!!) from this unit.

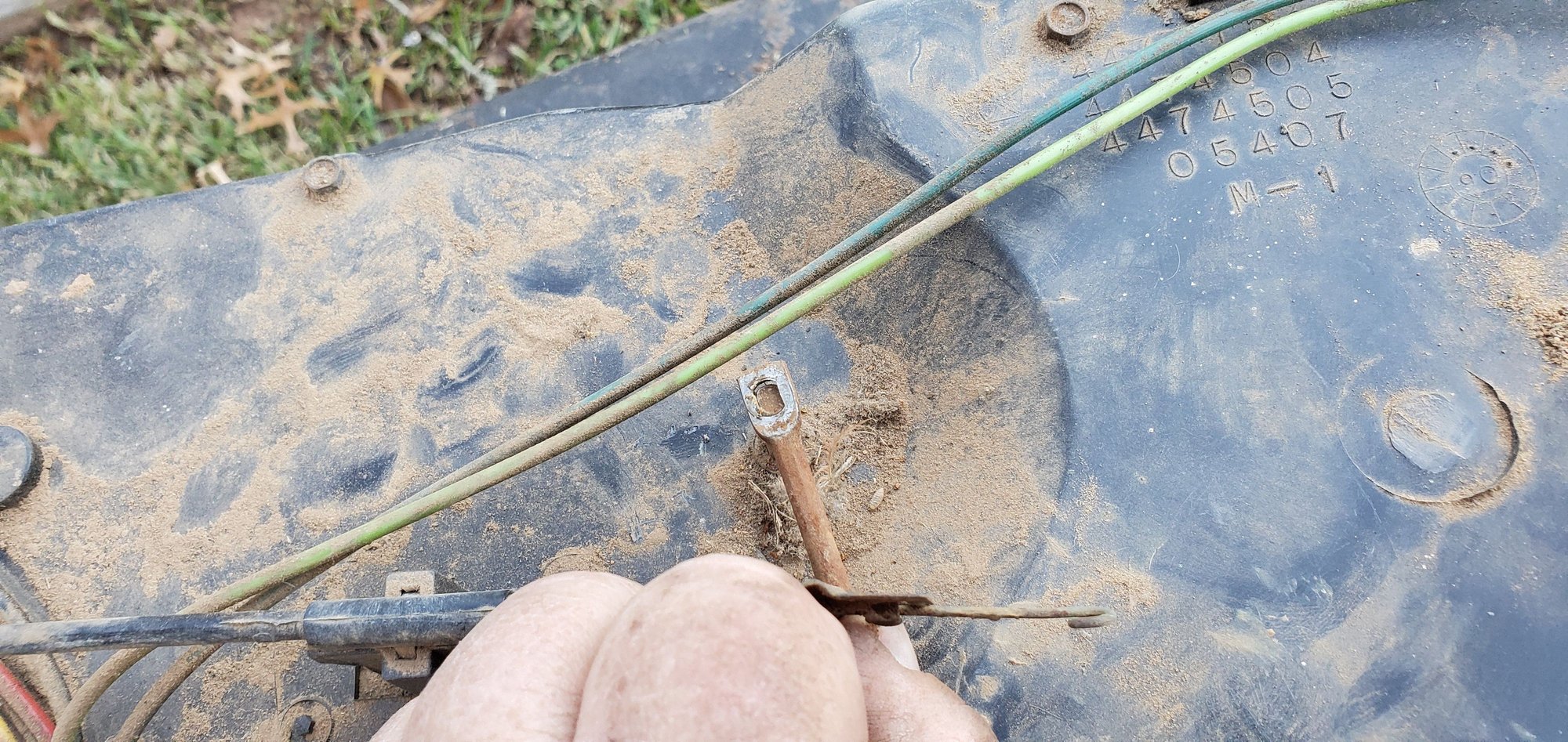

This is where the temp flapper valve connects, to show which way it goes.
This vacuum solenoid is connected with the hoses turned this way. IIRC, it does defrost/everything else.

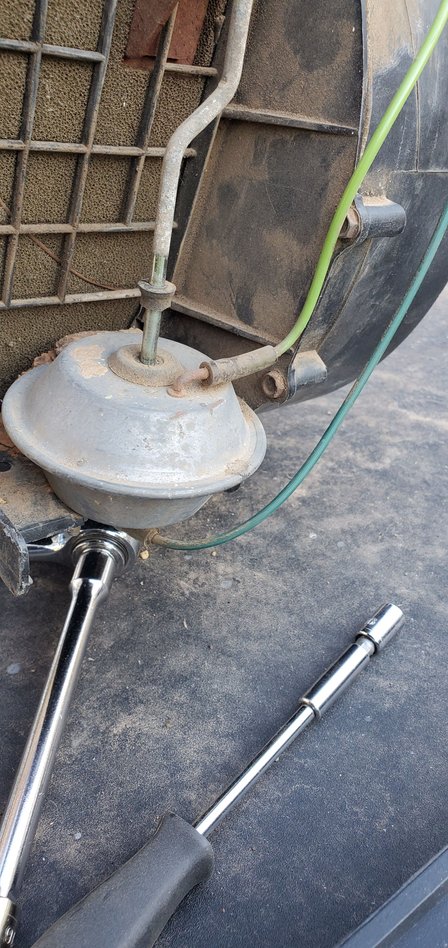

This is the fresh/recirc valve and flapper. Don't worry, the flapper got Rust Rid'ded and then painted, then new foam put on.

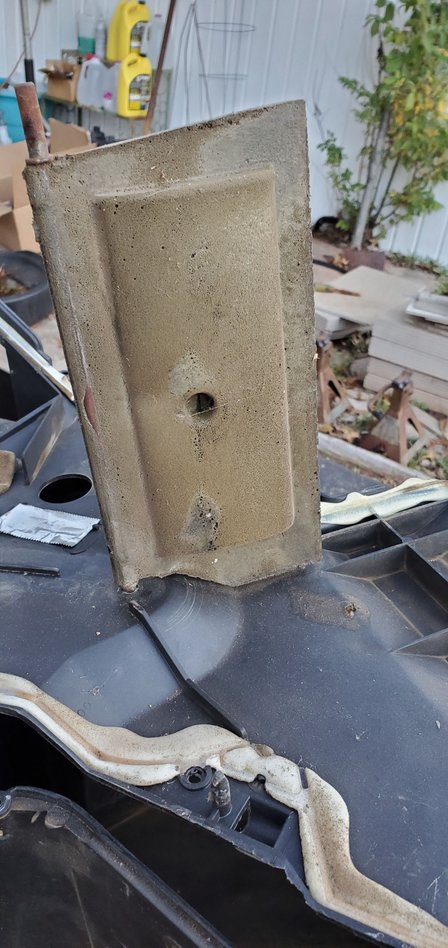

This is the temp flapper, so I could see how to put it back in.
The vacuum hoses were taped to a wire T under there.
Of course, it didn't go as smoothly getting this HVAC box out of the 1991 in the boneyard as I could wish.
Since the seat was rusted out and wouldn't move, and the yard was closing, I forced it up and around. BTW - If you can't put the seat all the way back, take it out to work on the HVAC box.
Oops.
The stud is probably still in the floorboard in the boneyard.

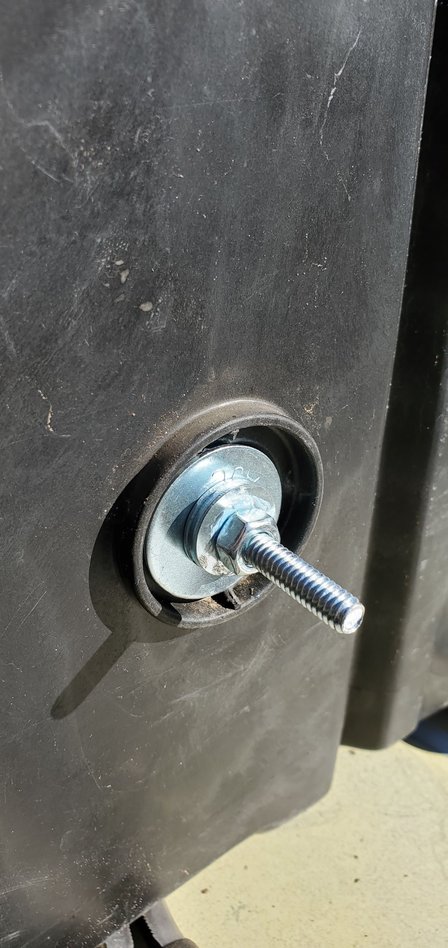

The head of my fix - 1/4-20 screw, 1.5" long, with a fender washer on it.

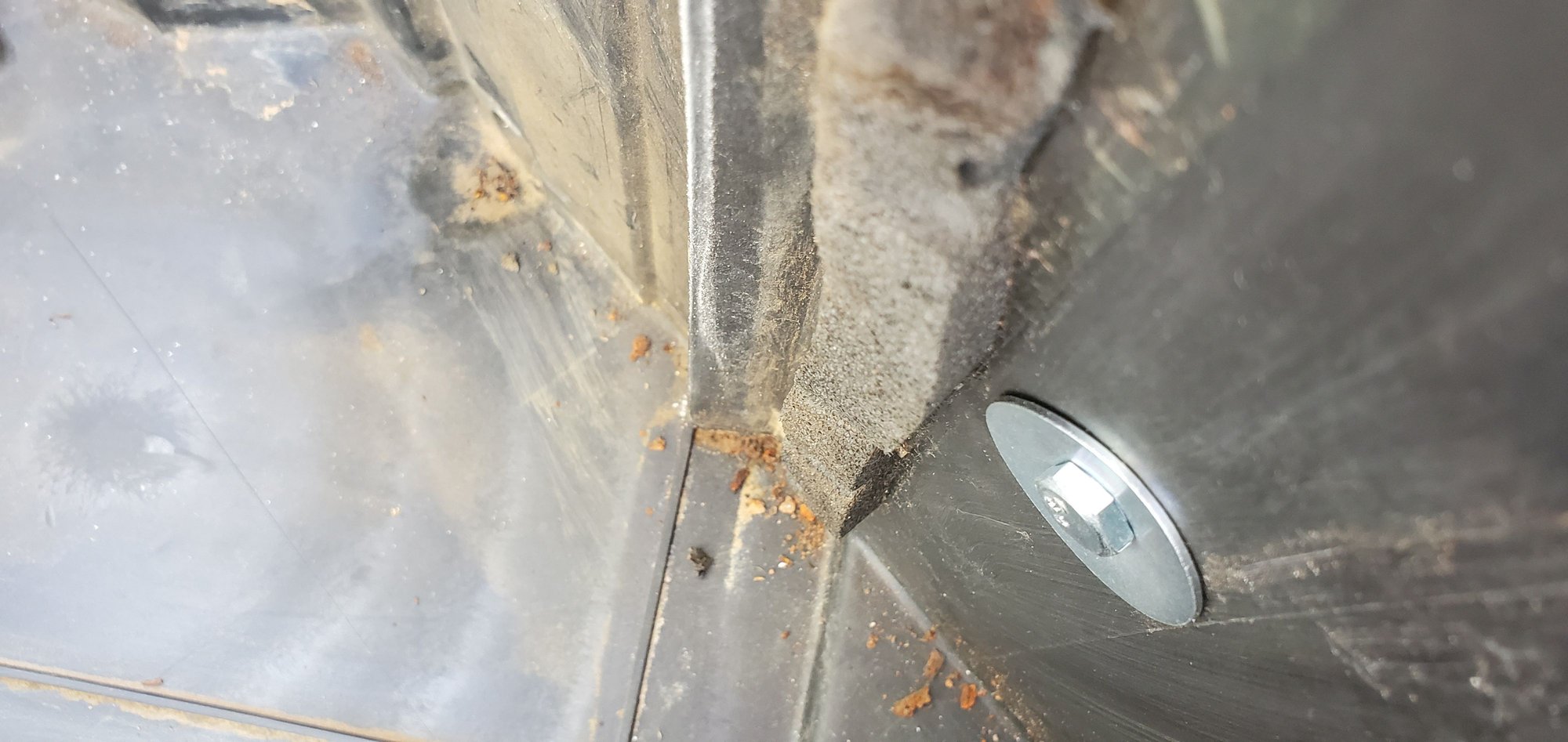

Fender washer, four regular flat washers, and a nut, locktite on the nut.

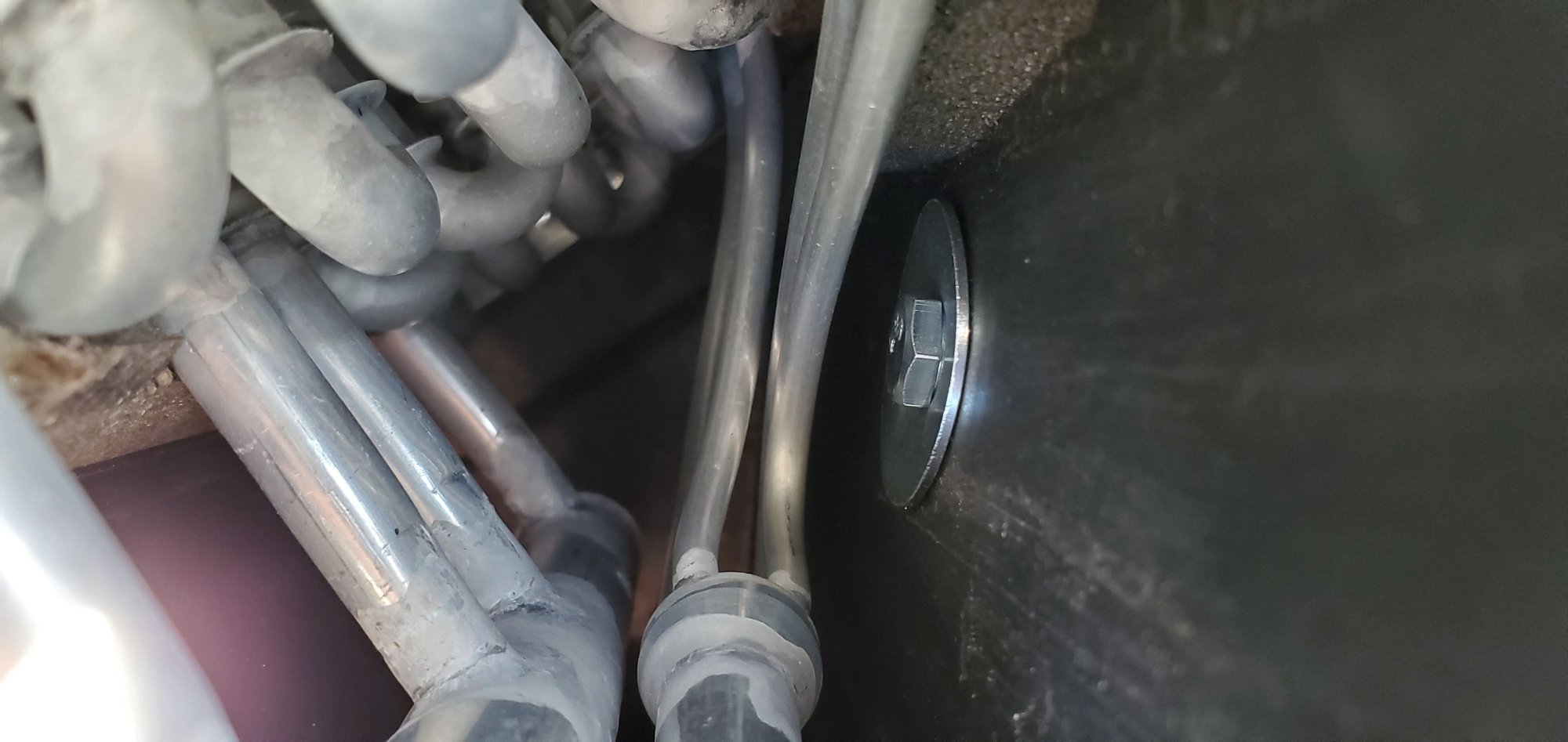

It clears the evaporator with plenty of space, now that I bent that tube down a bit.
And even more.

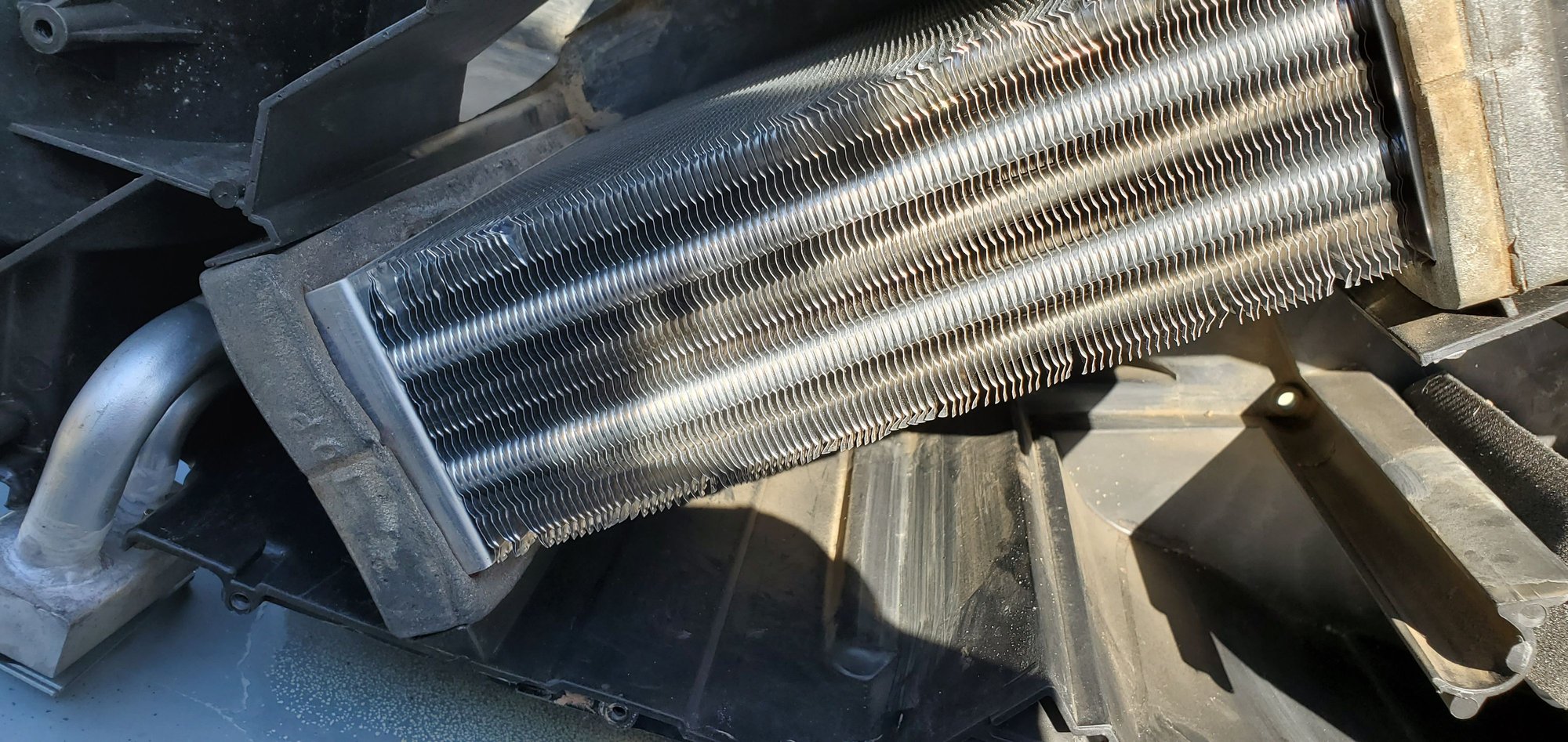

I recycled the gaskets off the old evaporator; I can't find anyone who supplies the gaskets. They're compressed foam rubber.
The new heater core came with gasketting, save for that big one. Which in this pic is on the wrong side of the housing.
Oops. I put it on the correct side, but didn't retake the picture. This ... is on the wrong side of the housing.

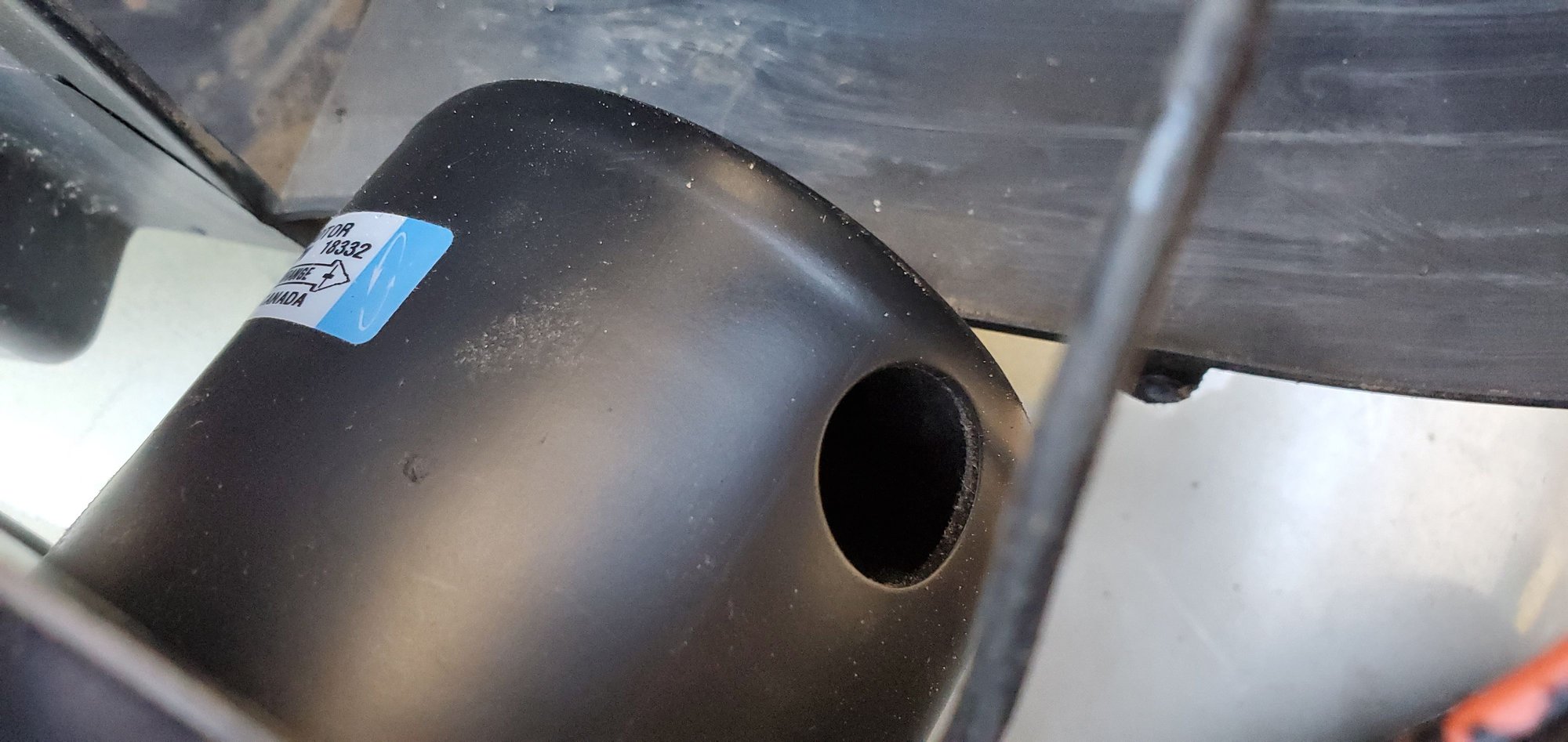

This is the cooling vent on the VDO motor I used. It needs air, so it ends up pointing downwards.
This "universal" motor spins either CW or CCW; you wire it up the right way. Which is ... black positive for our trucks.
It grouses me some to wire up a black to a green, and a black to an orange, but it's how it blows the right way.

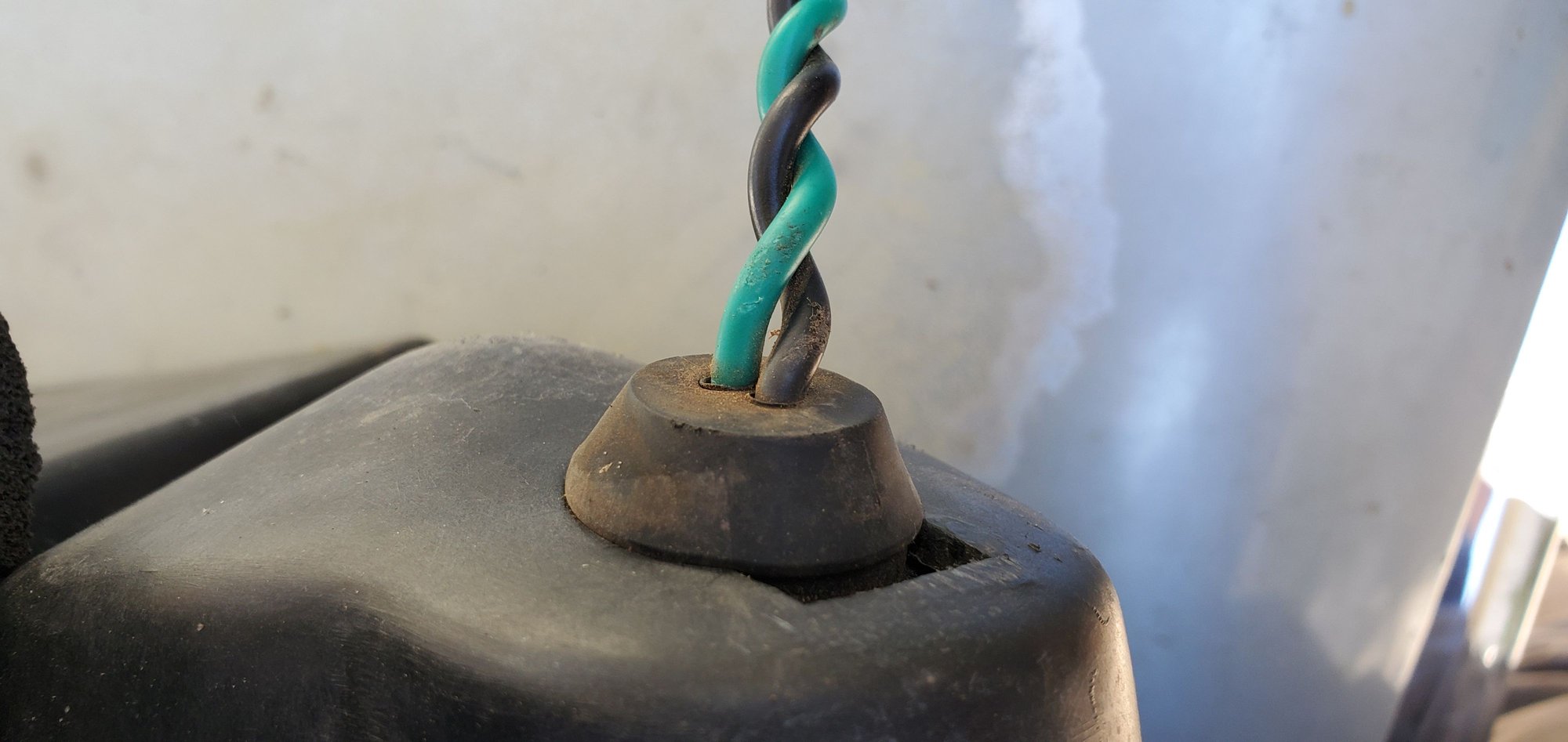

In the later HVAC boxes (this came out of a 1991), the power leads are grommetted into the box. In an older box (like my 1988's original), the motor is exposed on the back, with a rubber tube that goes from the vent on the motor to the housing.
After we pull the wiring through. It's got that lump to clear the connector.
This is just about perfect with the new blower wheel. It's not hitting the cover, but it's close enough that there's not much if any air that escapes above the fan.
After that shot, I scribed it with a sharp knife, then used Loktite Blue on the set screw (this one is 3MM hex).
The tab broke due to age; I zip tied it back on to keep it from walking free after assembly.
That's all for now.
I'll get some of removing the old box and installing the new box for you in a few days.
RwP
