Timing chain sprockets?

Thread Tools

Search this Thread

  #1
Old 09-28-2023, 04:15 AM
RWEJR's Avatar
RWEJR
RWEJR is offline
Registered User
Thread Starter
Join Date: Sep 2017
Location: Muncie ,Indiana
Posts: 19
Received 0 Likes on 0 Posts
Default Timing chain sprockets?

I just replaced the cylinder head's on my 93 Dodge Dakota le 5.2 magnum. Question is I got the timing off 180 digrees and can't seem to get tdc back is there anyway to get the sprockets back in line without removing the timing cover.

  #2
Old 09-28-2023, 06:41 AM
HeyYou's Avatar
HeyYou
HeyYou is offline
Administrator
Dodge Forum Administrator
Join Date: Apr 2010
Location: Clayton MI
Posts: 80,904
Likes: 0
Received 3,199 Likes on 2,951 Posts
Default

Nope. But, you should be able to just pull the distributor, and re-index it.

  #3
Old 09-28-2023, 11:44 PM
ol' grouch's Avatar
ol' grouch
ol' grouch is offline
Champion
Join Date: May 2019
Location: S.W. Indiana
Posts: 4,224
Likes: 0
Received 576 Likes on 522 Posts
Default

Originally Posted by RWEJR
I just replaced the cylinder head's on my 93 Dodge Dakota le 5.2 magnum. Question is I got the timing off 180 digrees and can't seem to get tdc back is there anyway to get the sprockets back in line without removing the timing cover.

Did you pull the distributor when you pulled the engine apart. Like HeyYou said, reindex the distributor. That's the only way I can think it would be off.

  #4
Old 09-29-2023, 06:43 AM
RWEJR's Avatar
RWEJR
RWEJR is offline
Registered User
Thread Starter
Join Date: Sep 2017
Location: Muncie ,Indiana
Posts: 19
Received 0 Likes on 0 Posts
Default

Originally Posted by ol' grouch
Did you pull the distributor when you pulled the engine apart. Like HeyYou said, reindex the distributor. That's the only way I can think it would be off.
To answer the question yes does that make a big difference? ,I thought I had to but didn't. What's the process two reindex distributor? Thanks for your time.

  #5
Old 09-29-2023, 07:14 AM
HeyYou's Avatar
HeyYou
HeyYou is offline
Administrator
Dodge Forum Administrator
Join Date: Apr 2010
Location: Clayton MI
Posts: 80,904
Likes: 0
Received 3,199 Likes on 2,951 Posts
Default

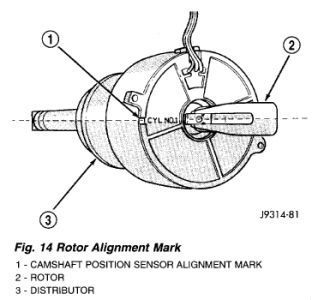

Turn the engine so #1 cylinder is at TDC, in firing position. (both valves closed.) The distributor will have a notch that you need to align the rotor with. Usually, the cap is also marked with which tower is for #1.

  #6
Old 09-29-2023, 08:10 PM
bronze's Avatar
bronze
bronze is offline
Record Breaker
Join Date: Nov 2015
Location: North Carolina
Posts: 1,977
Received 425 Likes on 364 Posts
Default

I learned something today. 😊

  #7
Old 09-30-2023, 04:52 AM
Moparite's Avatar
Moparite
Moparite is offline
Grand Champion
Join Date: Feb 2015
Posts: 6,055
Likes: 0
Received 352 Likes on 331 Posts
The following users liked this post:
RWEJR (10-01-2023)
  #8
Old 09-30-2023, 12:41 PM
RWEJR's Avatar
RWEJR
RWEJR is offline
Registered User
Thread Starter
Join Date: Sep 2017
Location: Muncie ,Indiana
Posts: 19
Received 0 Likes on 0 Posts
Default

Originally Posted by bronze
I learned something today. 😊
Care to share with rest of the class? What you learned I mean.

  #9
Old 09-30-2023, 09:33 PM
ol' grouch's Avatar
ol' grouch
ol' grouch is offline
Champion
Join Date: May 2019
Location: S.W. Indiana
Posts: 4,224
Likes: 0
Received 576 Likes on 522 Posts
Default

Originally Posted by RWEJR
Care to share with rest of the class? What you learned I mean.

Ooh! I learn stuff every day. Don't reach into a toaster while it's working, it's orange for a reason. Don't fry bacon in the nude. Never lick a steak knife. Lot's of things.

The following users liked this post:
tndakman (10-01-2023)
  #10
Old 10-01-2023, 08:51 AM
RWEJR's Avatar
RWEJR
RWEJR is offline
Registered User
Thread Starter
Join Date: Sep 2017
Location: Muncie ,Indiana
Posts: 19
Received 0 Likes on 0 Posts
Default

Originally Posted by ol' grouch
Ooh! I learn stuff every day. Don't reach into a toaster while it's working, it's orange for a reason. Don't fry bacon in the nude. Never lick a steak knife. Lot's of things.
I got to hand it to ya those are some very important lessons to learn 😂😂.
