Custom made Front RAM air intake
I just finished building a custom ram air intake that works marvelously!I really want to trump Mean Green's gettoram airsetup!!! I want to show you guys what less than $10-$15 in sheet metal parts can do for your D.
Anyways,Here is a list of materials and tools you will need for this project. All ducting from the OEM airbox is 4 inch ducting. If possible I recommend to get the aluminum type so you won't have to worry about rusting. I purchase these materials from my local Home Depot store.
Materials:
1 - 90 degree adjustable elbow
1 - 4 inch spacer
1 - 8 to 10 inch tube
2-3 - 1/4 inch sheet metal screws
Tools:
Drill with 1/8 inch drill bit to drill pilot holes to screw the sheetmetal screws
left/right sheetmetal cutters

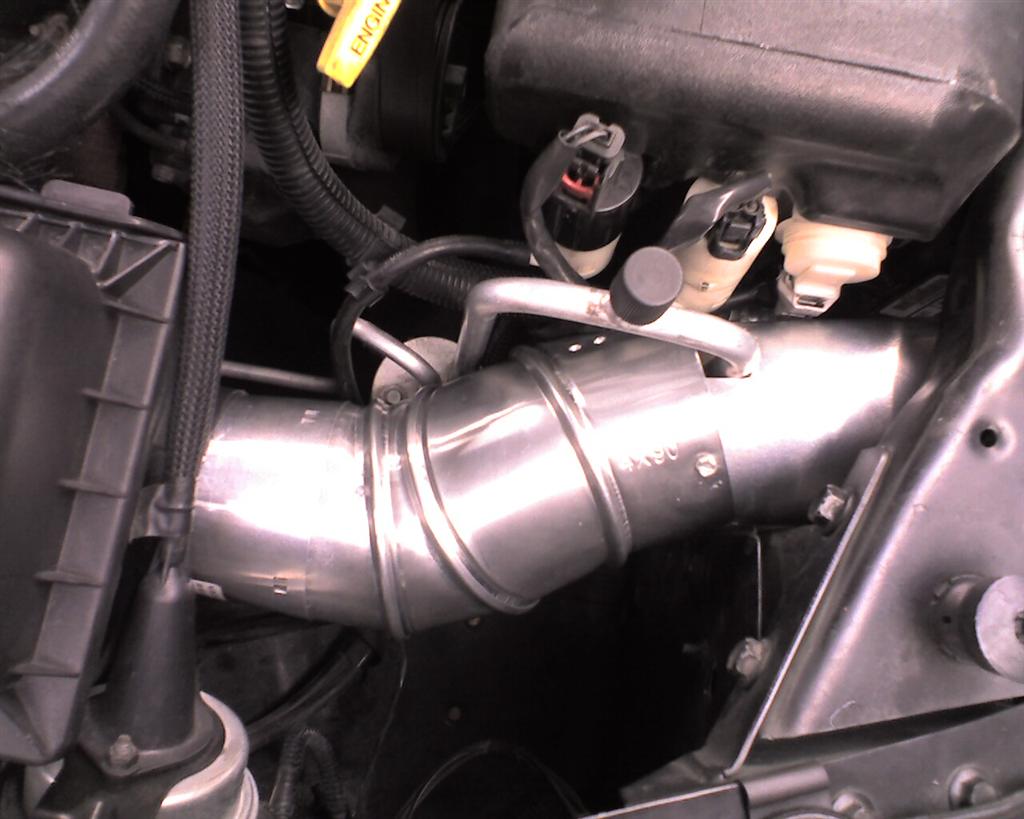

You will have to remove the factory plastic elbow and remove the plastic/rubber shroud cover that is on the passenger front of the durango. You insert the 4 inch spacer along with the adjustable 90 degree elbow. You will have to play with the adjustable elbow and swivel the elbow until you get the right pattern to get the elbow as close to the radiator and freon line as possible. Then slide the 8-10 inch tube from the front of the durango until you hit your A/C line. from here, you will have to cut a slot approximately 3-4 inches so the tube can continue to slide further until it meets the elbow and can go in an extra inch. Once your tube is snugged nice and deep into the elbow, Use the drill to drill a couple of holes so you can screw in the sheetmetal screws to hold them in place. Then use the sheetmetal cutters to trim off the front where it meets the top frame. I think I am going to get a clip to support the front and screw it to the frame for stronger support on the front.
If you are worried about water entering the duct when driving in the rain, no worry, the factory airbox has holes on the bottom of the air box for water to drain out. You may drill a few extra holes in the airbox to ensure the water will drain throroughly if you play alot in wet areas. Plus, the air dam on front of the durango provide enough protection to prevent large objects from entering the duct to prevent clogging.
