Yes.

You can upload your pictures to a host sight then insert the IMG code. If you look at your pictures like I said in your edit screen of that post you will see them. This is an internet address so you can't move the pictures once you have linked to them because the picture will no longer be at that address.

Now to answer your question of my demonic powers.......Mu, ha, ha, ha

That was easy.
1. I looked into your post because I am a Moderator on this sight.
2. In the post there was an internet address that lead me to your photobucket account user name/account you made.
3. Once there I could see the pictures you uploaded and grabed the IMG code at the bottom of your pictures.
4. Copy and pasted the IMG code and replaced the old internet address you gave. You just put the wrong one in here.

I didn't break into any account just read the codes and went from there. The only thing I went into was your post here.......LOL...... I figured if I showed you how to do it and you could see it would be easy for next time.



I think I've got it!!!

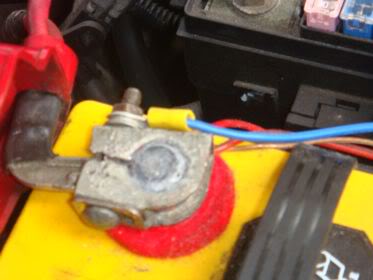

12V connect

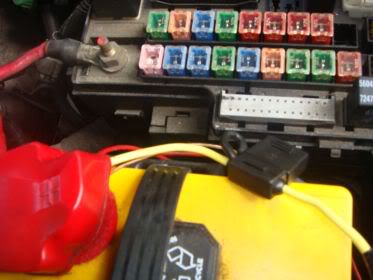

30AMP fuse from connect

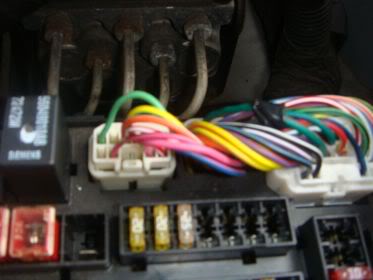

PDC wireloom

PDC

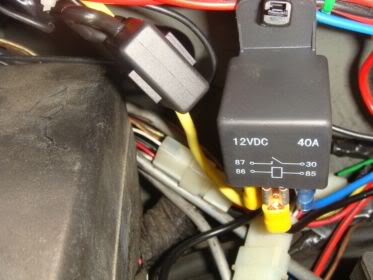

Relay

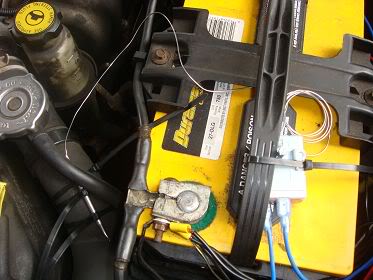

Thermal switch

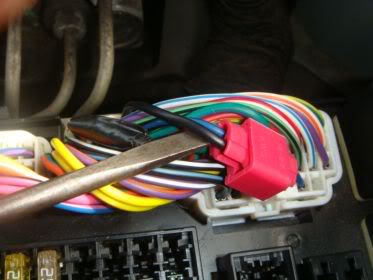

Wireloom tap

Thanks Hydra!



I would remove the wireloom off your battery. The acid will get to it.

Also I would remove the lead from the battery terminal and place it on the PDC large red wire connect from the battery as seen in picture #2 with the red dot. This will keep the acid from getting to the connection.

As for the grounds you have hooked up:
I would remove them from the battery connection and place them onto a different ground. This way acid and extra wire is eliminated.

Other than that (yes I always complain) looks great. Thats' all I would change tho.



I see what you mean, thanks for the tip!



Dan,

My install went long and good. Thanks for asking. I'll organize and post up photos in the next two weeks or so. I think everyone will like it.

On your hot wire running to the battery, move it to the red post coming out of the under the hood relay box (Power Distribution Center is what they call it I think.)

BTW, if you or anyone needs one, I now have a stocker electric fan for sale. $25 plus all shipping and box/handling charges. Worked like a top when I took it out of the D.

IndyDurango



Hmmm... I just might take you up on that Indy. My stocker died, that's why I had to install the pusher. So it's official, two long-timers saying to rewire the hots and grounds, sounds like a minor project this weekend... Hehehe... Will the stock and my pusher be enough to cool my D? Or will THREE fans do? Oh yeah, anyone have any pics and writeups on draining and removing the shroud to get to the clutch fan? Thanks in advance.



You won't want both.

But if I could figure this thing out with mine......I'll take it.



Okay, chalk this one up to my impatience and "doh!!!"ness. Remember I used this relay scehmatic? terminal 85 goes to ground
terminal 30 goes to 12 volt power
terminal 86 goes to switched power
terminal 87 goes to thermal switch
Well I goofed up. I grounded 87 and connected the thermal switch to 85. THAT'S why I kept blowing the fuses! After I took another look at the relay, I found the mistake. Now the fan comes on only with the a/c compressor relay on. Hmmm... The VSC is coming soon, that means I have an extra controller to play with... Hey Indy! I'm looking for a used stock fan... Know anyone selling???



I now have a stocker electric fan for sale. $25 plus all shipping and box/handling charges. Worked like a top when I took it out of the D.

-or-

$100 for the two-piece shroud, fan & v-brace including boxed and shipped.

PayPal works fine for me.

IndyD



Okay, I found the original poster for the pdc and wiring schematic I put up in this thread. The poster's handle is cegpcola from the dak-dur forum. I would like to thank him for helping me figure out the wire colors. Thanks ceg!
