Part number or description of this wiring harness to frame retainer?

2nd Gen Ram Tech 1994-2001 Rams: This section is for TECHNICAL discussions only, that involve the 1994 through 2001 Rams. For any non-tech discussions, please direct your attention to the "General discussion/NON-tech" sub sections.

Part number or description of this wiring harness to frame retainer?

Reply




  #1
Old 07-12-2018, 09:56 PM
AtomicDog
AtomicDog is offline
Record Breaker
Thread Starter
Join Date: Sep 2012
Location: Central VA
Posts: 1,847
Default Part number or description of this wiring harness to frame retainer?

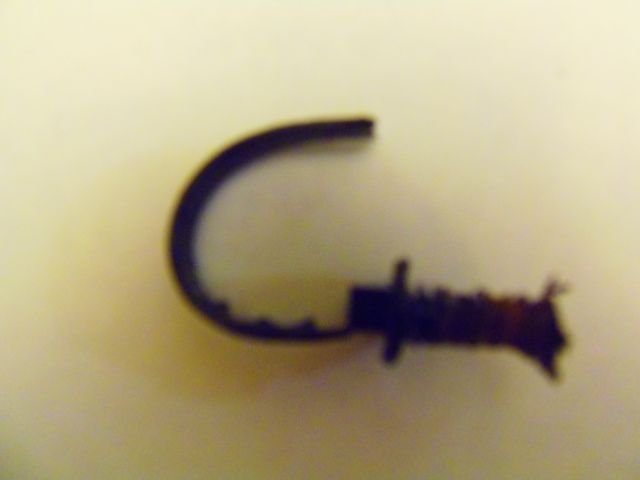

Does anyone know where I can find this wiring harness to frame retainer (photos attached). This retainer holds the wiring harness for the truck's rear lights to the frame. There are 1/4" holes in the frame that these retainers push into. On the other end is a twist tie made into it the retainer stud that holds the wiring harness to the frame. Does anyone know what these are called, what the part number might be and where I can find them new?

Reply With Quote
  #2
Old 07-12-2018, 10:27 PM
racefan41
racefan41 is offline
Veteran
Join Date: Jan 2016
Location: Shawnee, KS
Posts: 347
Default

I'm seeing a lot of different options searching "wire loom routing clips"

Reply With Quote
  #3
Old 07-12-2018, 10:34 PM
HeyYou's Avatar
HeyYou
HeyYou is offline
Super Moderator
Join Date: Apr 2010
Location: Clayton MI
Posts: 53,730
Default

Maybe a body shop? They would likely have something similar.

Reply With Quote
  #4
Old 07-13-2018, 12:01 AM
AtomicDog
AtomicDog is offline
Record Breaker
Thread Starter
Join Date: Sep 2012
Location: Central VA
Posts: 1,847
Default

Thanks for the thoughts so far. I tried the 'wire loom routing clip' searches, but nothing so far that matched this clip/retainer.

I'm heading to the Chryslers at Carlisle, PA show tomorrow, so I'm hoping to find some there. There is a vendor with R/T Specialties that calls himself a clipologist, so I'm sure he will know what they are and if they are available.

Reply With Quote
  #5
Old 07-13-2018, 12:17 AM
racefan41
racefan41 is offline
Veteran
Join Date: Jan 2016
Location: Shawnee, KS
Posts: 347
Default

Those looms do look a little more complex compared to what you have there. Yours looks more like a zip tie.

Reply With Quote
  #6
Old 07-13-2018, 03:46 AM
MoparFanatic21
MoparFanatic21 is offline
Record Breaker
Join Date: Nov 2014
Posts: 2,007
Default

Originally Posted by AtomicDog View Post
Thanks for the thoughts so far. I tried the 'wire loom routing clip' searches, but nothing so far that matched this clip/retainer.

I'm heading to the Chryslers at Carlisle, PA show tomorrow, so I'm hoping to find some there. There is a vendor with R/T Specialties that calls himself a clipologist, so I'm sure he will know what they are and if they are available.
What both is he in? I'm there for 4 says with my cars. Also that is called a tree clip automotive paint stores sell them. It's basically a zip tie with a nipple on it
Originally Posted by racefan41 View Post
Those looms do look a little more complex compared to what you have there. Yours looks more like a zip tie.
It is

Reply With Quote
  #7
Old 07-14-2018, 12:51 PM
AtomicDog
AtomicDog is offline
Record Breaker
Thread Starter
Join Date: Sep 2012
Location: Central VA
Posts: 1,847
Default

Checked with several places (including R/T Specialties) at the Carlisle, PA show on Friday and no luck in finding them. If someone knows of a part number for this clip, please let me know.

Reply With Quote
  #8
Old 07-14-2018, 01:52 PM
weazel
weazel is offline
Amateur
Join Date: Jun 2017
Posts: 48
Default

if you search Amazon for "hole cable zip tie" or "push mount zip tie" there are a lot of options. (the size of the hole is important when ordering, then length doesn't matter much since you trim it)

You might have to buy 50 of them though. It is probably still less than buying one from the dealership though. I keep buying body clips or the variety packs of body clips from Amazon. I put them in an organizer and maybe I need the same thing down the road on a different vehicle.


Last edited by weazel; 07-14-2018 at 01:55 PM.
Reply With Quote
  #9
Old 07-14-2018, 05:44 PM
AtomicDog
AtomicDog is offline
Record Breaker
Thread Starter
Join Date: Sep 2012
Location: Central VA
Posts: 1,847
Default

Originally Posted by weazel View Post
if you search Amazon for "hole cable zip tie" or "push mount zip tie" there are a lot of options. (the size of the hole is important when ordering, then length doesn't matter much since you trim it)

You might have to buy 50 of them though. It is probably still less than buying one from the dealership though. I keep buying body clips or the variety packs of body clips from Amazon. I put them in an organizer and maybe I need the same thing down the road on a different vehicle.
Weazel, you hit it right on the head! I found this out on Amazon, which is a very close match to what I'm looking for. Thanks for your reply.

Amazon Amazon

Reply With Quote
  #10
Old 07-14-2018, 10:46 PM
MoparFanatic21
MoparFanatic21 is offline
Record Breaker
Join Date: Nov 2014
Posts: 2,007
Default

Originally Posted by AtomicDog View Post
Checked with several places (including R/T Specialties) at the Carlisle, PA show on Friday and no luck in finding them. If someone knows of a part number for this clip, please let me know.
Go to clips and fasteners. Com they have them
