'96 V10 No Start
#1
'96 V10 No Start
Hi, got a no start issue. If I crawl under and short the two terminals at the solenoid it starts right up. I put a voltmeter on the start terminal, nothing when I turn the key. Under the hood there is a box of relays. One says 'starter' I have power to that but I don't hear it click. Neutral switch maybe? Any other known faults in this circuit? Anything else besides the neutral switch that will prohibit starting? Thanks.
#2
Possibly bad neutral switch, or bad relay. All the relays are pretty much the same, so, just swap it with another one, to see if its bad. If it isn't, gonna have to go chasing power.
If you don't already have one, you can download a service manual for your truck from here. Wiring diagrams are in section 8W.
Welcome to DF!
If you don't already have one, you can download a service manual for your truck from here. Wiring diagrams are in section 8W.
Welcome to DF!
#4
#5
I've managed to isolate it down to the circuit that runs from the ignition switch to the relay. Got 12v going into the switch but only about half that at the relay. Only thing in between is a 'bypass jumper' for the clutch switch in manual trans trucks. Got to be either that, which I assume is under the steering column somewhere, or at the switch.
#6
#7
LOL, yeah I noticed that. Power runs to the ignition switch, through that bypass jumper then to one side of the relay coil. The other side of the relay coil runs through the neutral safety switch and then to ground. I have a good ground at the relay so the neutral switch must be OK. Going over in a little while to find that jumper.
Trending Topics
#8

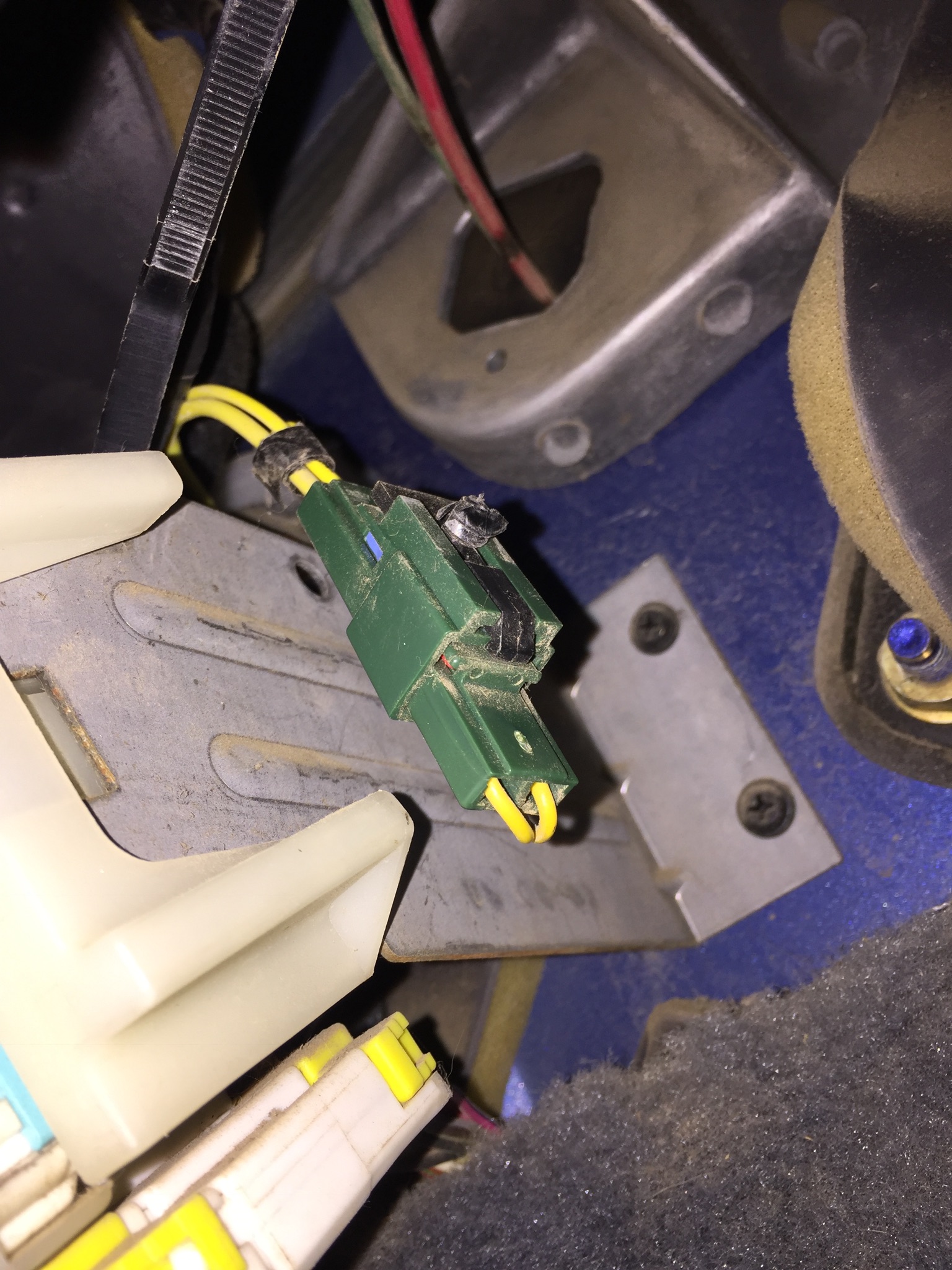

That jumper is half in with a Christmas tree clip on the INSIDE of the bracket for the big honkin whatever-pin connector under the dash. The big box thing with all the wires. The wires that run there are all yellow wires. Hard to miss in the mess under the dash. It's not next to the steering colum, if your flexible enough, you can get to it without removing then knee bolster.
#9
That jumper is half in with a Christmas tree clip on the INSIDE of the bracket for the big honkin whatever-pin connector under the dash. The big box thing with all the wires. The wires that run there are all yellow wires. Hard to miss in the mess under the dash. It's not next to the steering colum, if your flexible enough, you can get to it without removing then knee bolster.
I did, in the mean time, shove a jumper wire into the slot in the relay that wire goes to, put the relay in and touched the jumper to the positive battery terminal, with the key on. Fired right up, so I'm closing in on it, and at least I can start the truck if needed. Hope it's the jumper but I have a feeling it might be the ignition switch.
