Front diff actuator wire connection
Thread Starter
|
Registered User
Joined: Apr 2018
Posts: 14
Likes: 0
From: Australia
Front diff actuator wire connection
I recently checked the front diff actuator vac because I couldn’t engage the 4x4 on my 2001 3500 dually and I discovered that the actuator switch wasn’t connected anywhere. He’s connected to the switch but not the other side and I can’t find the plug where it should be connected. Of course, no 4x4 light on the dash.
Thank you in advance for your help. Vince
Thank you in advance for your help. Vince
Thread Starter
|
Registered User
Joined: Apr 2018
Posts: 14
Likes: 0
From: Australia
Last edited by Idoram; Apr 10, 2018 at 07:03 PM. Reason: Misspelling
Thread Starter
|
Registered User
Joined: Apr 2018
Posts: 14
Likes: 0
From: Australia
Captain
Joined: Sep 2013
Posts: 586
Likes: 17
From: Nevada
Thanks, but that is not the case here, from the connector on the actuator switch there is two wire coming out, one black and one black with a grey stripe . They running to another connector with three prongs inside, I need to find where this connector should be plugged in.
Thread Starter
|
Registered User
Joined: Apr 2018
Posts: 14
Likes: 0
From: Australia
You should find the other end of that plug almost straight forward of the CAD, clipped to the radiator support... Or somewhere in that area. If you pull those wires you're holding forward you should find it. I'll try to remember to get a picture of mine for you tomorrow (Friday).
Trending Topics
Captain
Joined: Sep 2013
Posts: 586
Likes: 17
From: Nevada

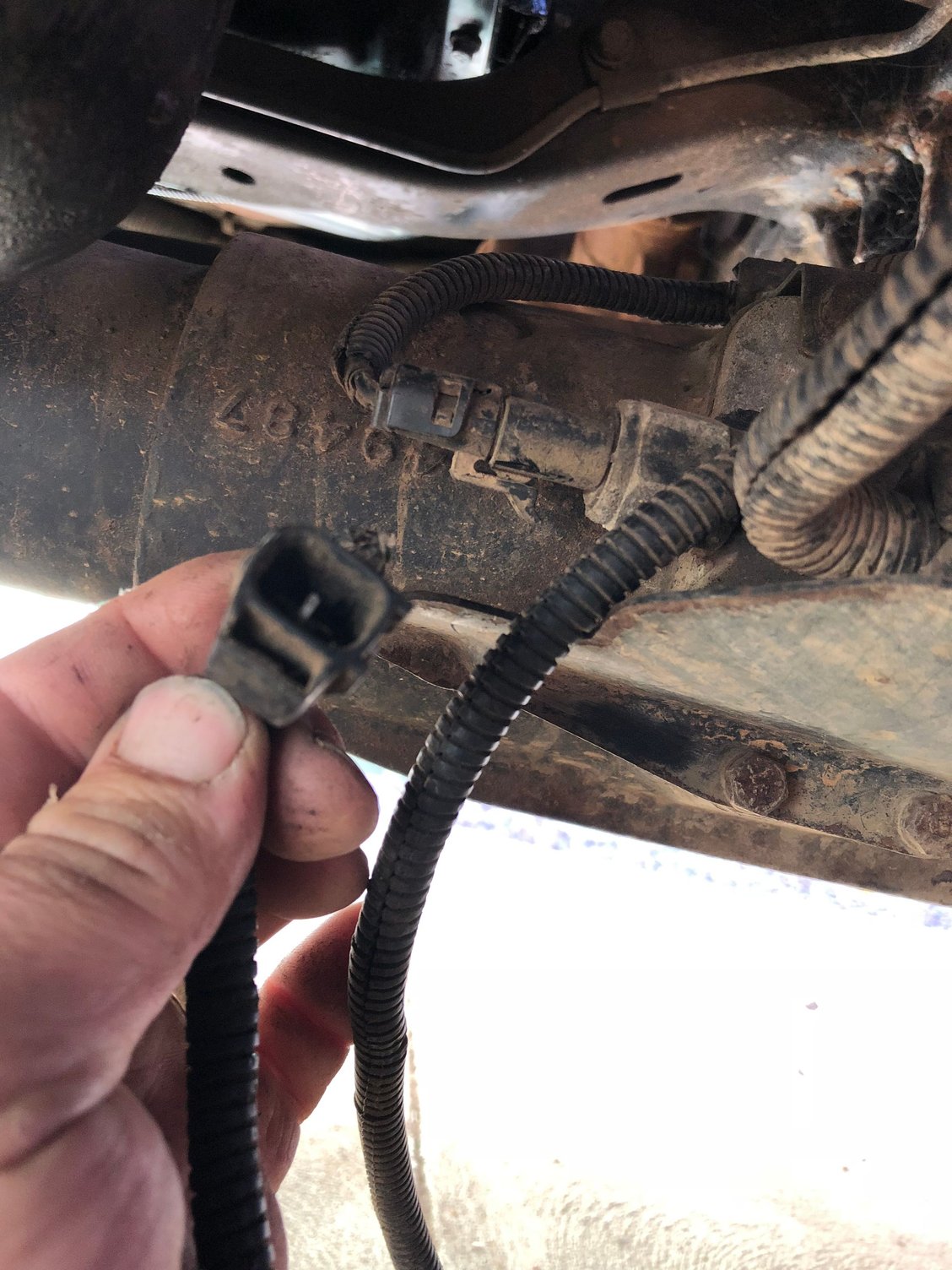

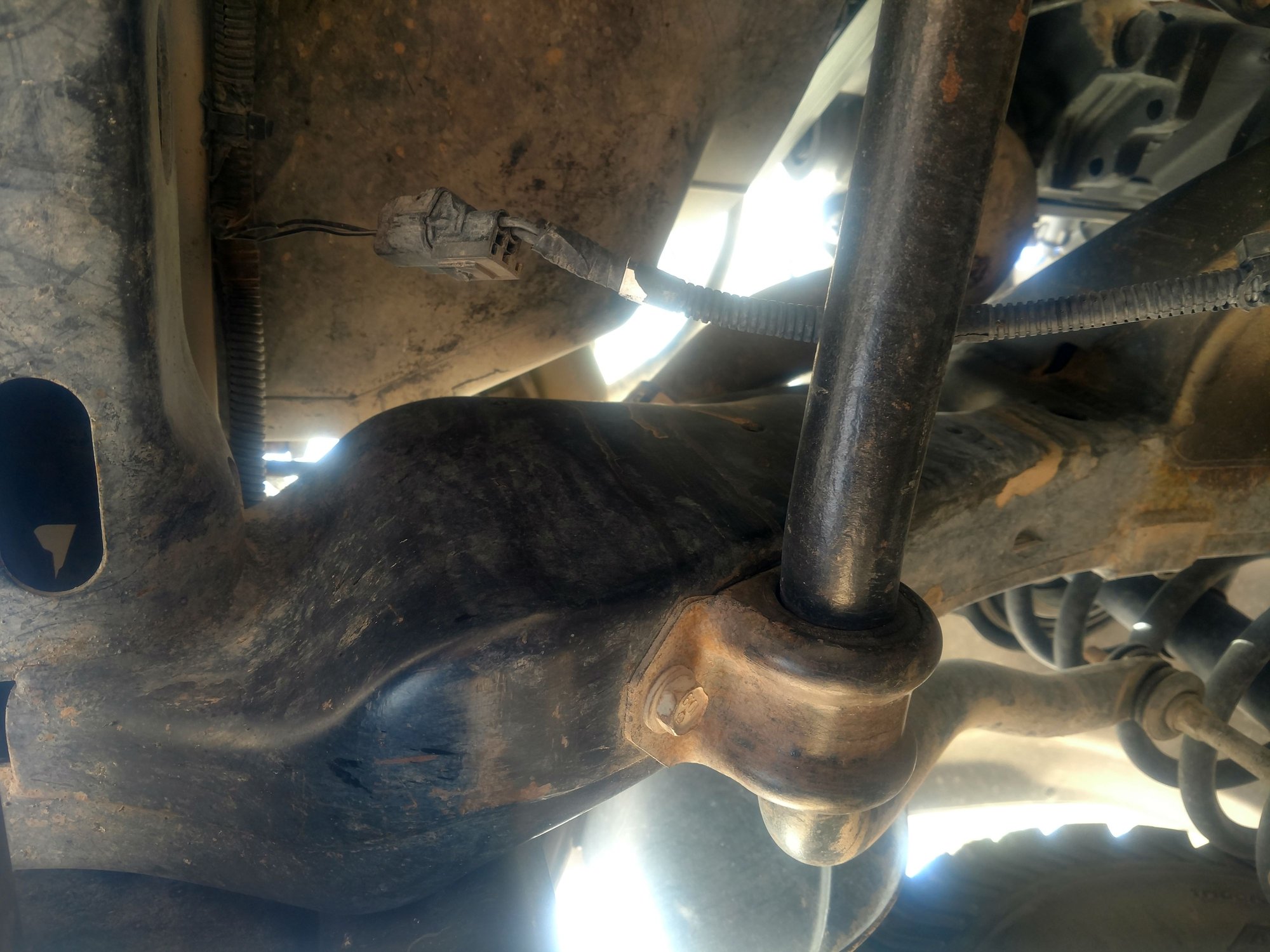

. I forgot Friday, but here are a couple pictures for you.
Thread Starter
|
Registered User
Joined: Apr 2018
Posts: 14
Likes: 0
From: Australia
Thank you so much for your time and the photos, appreciated very much. That is awesome! I honestly didn’t think it would be located in this area. I would have thought more likely in the harness near the transfer case or in this area. Anyway thanks again.
Cheers mate.
Cheers mate.
