instrument cluster pin out

Thread Tools

Search this Thread

Old Jun 22, 2019 | 08:58 PM
  #1
BAnders's Avatar
BAnders
Thread Starter
|
Veteran
15 Year Member
Joined: Dec 2006
Posts: 263
Likes: 0
From: Texas
Default instrument cluster pin out

trying to change out instrument cluster bulbs. anyone out there have a pin out location? i need to get power to the cluster to bench test the lights

Reply
Old Jun 22, 2019 | 09:18 PM
  #2
HeyYou's Avatar
HeyYou
Administrator
Veteran: Air Force
Community Favorite
15 Year Member
Community Builder
Joined: Apr 2010
Posts: 87,396
Likes: 4,213
From: Clayton MI
Default

Try here.

Reply
Old Jun 22, 2019 | 10:32 PM
  #3
BAnders's Avatar
BAnders
Thread Starter
|
Veteran
15 Year Member
Joined: Dec 2006
Posts: 263
Likes: 0
From: Texas
Default

Originally Posted by HeyYou
Try here.
thanks, checked it out. no luck, has everything but not what i need.

Reply
Old Jun 23, 2019 | 05:14 AM
  #4
fj5gtx's Avatar
fj5gtx
Record Breaker
Joined: Sep 2007
Posts: 1,810
Likes: 105
From: PA
Default

factory service manual.... you don't say what year you have.

Reply
Old Jun 23, 2019 | 11:20 PM
  #5
BAnders's Avatar
BAnders
Thread Starter
|
Veteran
15 Year Member
Joined: Dec 2006
Posts: 263
Likes: 0
From: Texas
Default

Originally Posted by fj5gtx
factory service manual.... you don't say what year you have.
thought it was listed in my profile . . . 04 ram, 5.7 2wd auto 4dr

Reply
Old Jun 24, 2019 | 09:14 AM
  #6
fj5gtx's Avatar
fj5gtx
Record Breaker
Joined: Sep 2007
Posts: 1,810
Likes: 105
From: PA
Default

Originally Posted by BAnders
thought it was listed in my profile . . . 04 ram, 5.7 2wd auto 4dr
04 FSM is available for free as a PDF. I think I found it under a user "weedahoe" postiing...

Reply
Old Jun 25, 2019 | 10:09 PM
  #7
Magnoom's Avatar
Magnoom
Record Breaker
Veteran: Navy
Veteran: Coast Guard
5 Year Member
Community Favorite
Joined: Apr 2019
Posts: 1,680
Likes: 262
Default

http://www.mediafire.com/file/8k5u7y...anual.pdf/file

Reply
Old Jun 25, 2019 | 10:21 PM
  #8
BAnders's Avatar
BAnders
Thread Starter
|
Veteran
15 Year Member
Joined: Dec 2006
Posts: 263
Likes: 0
From: Texas
Default

thanks, i'll check it out

Reply
Old Jun 29, 2019 | 11:50 PM
  #9
BAnders's Avatar
BAnders
Thread Starter
|
Veteran
15 Year Member
Joined: Dec 2006
Posts: 263
Likes: 0
From: Texas
Default

didnt really help. i need to bench test for the new bulbs. trying to find which pin powers the lights and ground

Reply
Old Jun 30, 2019 | 07:45 AM
  #10
fj5gtx's Avatar
fj5gtx
Record Breaker
Joined: Sep 2007
Posts: 1,810
Likes: 105
From: PA
Default

Originally Posted by BAnders
didnt really help. i need to bench test for the new bulbs. trying to find which pin powers the lights and ground

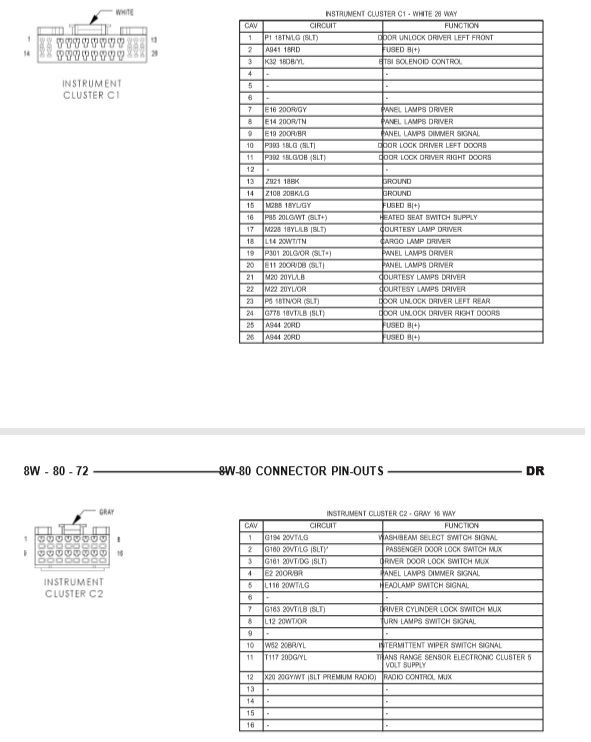

Why didn't it help? There is a whole description section on Instrument Cluster, including about half a page on lighting. And all the pin-outs are available in the pin out section. What else do you need? Pics below are incomplete and only for reference to prove the info is in the manual, see actual manual for complete information.







Reply
