2007 RAM 1500 - Crank, No Start, Fuel Pump or Fuel Pump Wiring is suspect
I have not been able to locate what I think is the proper documentation I think I need to narrow this issue down. So, let me explain what I have and I've managed to find so far.
2007 Ram 1500 Quad Cab 5.7L Gas HEMI 26 Gal tank
It died while driving. It will crank, but not catch and run. Starter fluid will allow it to run for a few seconds. So, I know it is not getting fuel.
I don't have a manual or schematic. Almost everything I find on the Internet, about these symptoms, refers to a fuse panel that does NOT look like what I have. The few I do find do not go into any detail that answer my questions. I have attached pictures of what I have.
First some assumptions. PLEASE, if you know for sure, correct me if I am wrong.
1. The fuel pump is NOT PWM (Pulse Width Modulation) driven. My assumption is based on every fuel pump being offered from the parts houses (AutoZone, NAPA, etc.), for this vehicle, has an over pressure vent (called something else?) to leak unwanted/un-needed fuel pressure back to the tank. It it were PWM, they usually regulate the pressure via that PWM and don't have an over pressure vent. That tells me it is a full on or off of 12 volts to drive the fuel pump.
2. The system does not use a relay for the fuel pump. Besides not being able to find one in the vehicle, the parts houses don't list one either. That usually means the fuse panel circuit boards use solid state switching to run the fuel pump.
So, if I do eventually conclude that the Totally Integrated Power Module (TIPM) is faulty, I COULD, with a simple relay circuit, bypass the TIPM to drive the fuel pump. (I am not saying I will!)
What I do know, so far.
I found a document (attached) that lists the pinout of one of the harness connectors as having the TIPM output pin that drives the fuel pump (Pin 18). I get 12V output on pin 18, briefly when I turn the key to the ON position, and then again full on while it attempts to start in the START position. (BTW, though the document has Dark Blue as the color of the wire hand written on it, my wire is Orange with Red stripe.)
Am I looking at the correct TIPM pin output for the fuel pump power?
Short of me now getting under the vehicle (I am not as flexible as I used to be), I am now looking at getting a new fuel pump. I guess a ground could have come loose, the connector pulled apart, or a squirrel chewed a wire. Still, that is what it is looking like.
Fuse box

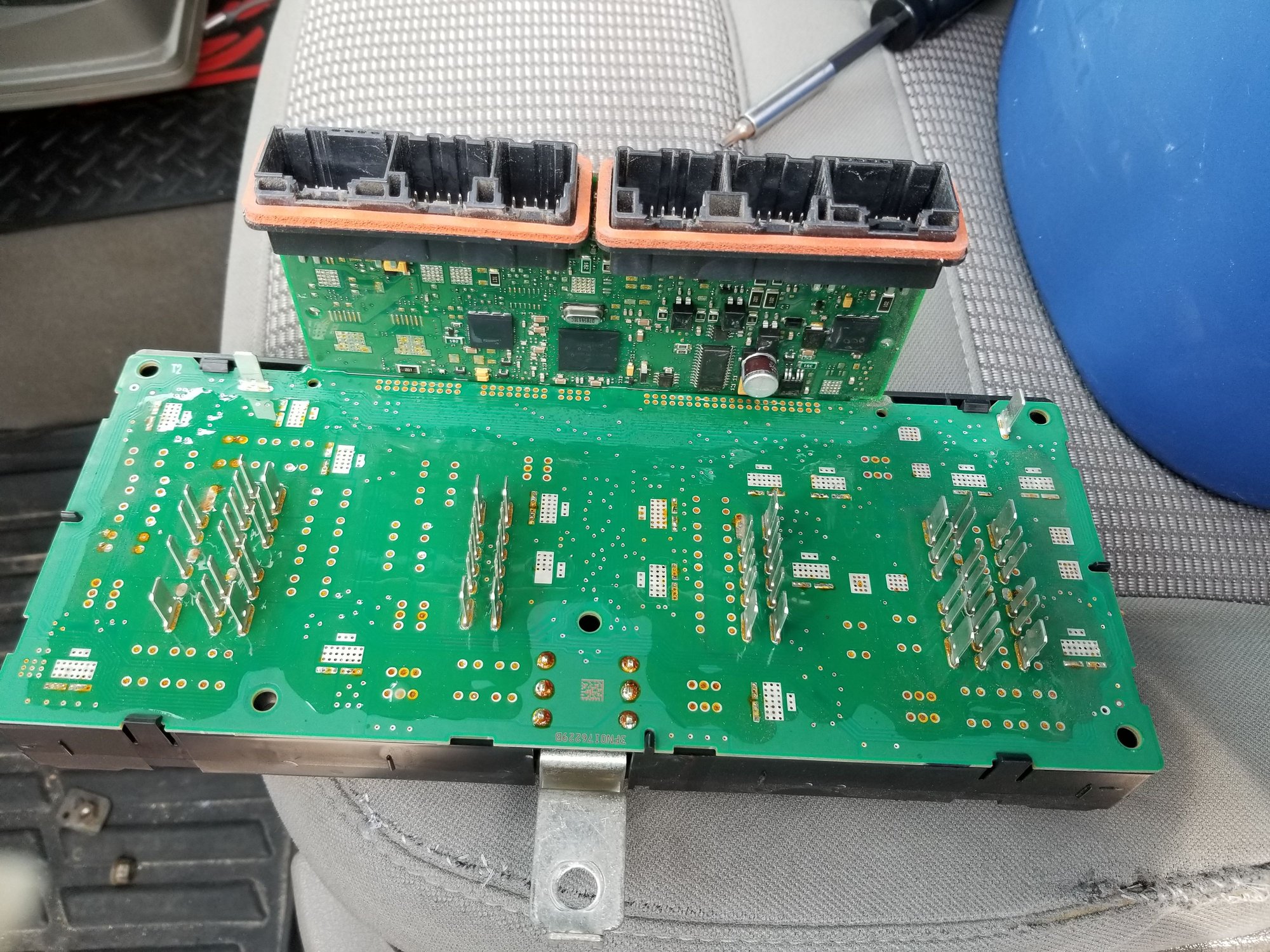

Fuse box main board bottom view
Fuse box main board top view
Connector documentation (Gray) Page 1
Connector documentation (Gray) Page 2 My fuel pump output wire was Orange/Red Stripe
Can anybody verify that my diagnosis is in the right direction?
2007 Ram 1500 Quad Cab 5.7L Gas HEMI 26 Gal tank
It died while driving. It will crank, but not catch and run. Starter fluid will allow it to run for a few seconds. So, I know it is not getting fuel.
I don't have a manual or schematic. Almost everything I find on the Internet, about these symptoms, refers to a fuse panel that does NOT look like what I have. The few I do find do not go into any detail that answer my questions. I have attached pictures of what I have.
First some assumptions. PLEASE, if you know for sure, correct me if I am wrong.
1. The fuel pump is NOT PWM (Pulse Width Modulation) driven. My assumption is based on every fuel pump being offered from the parts houses (AutoZone, NAPA, etc.), for this vehicle, has an over pressure vent (called something else?) to leak unwanted/un-needed fuel pressure back to the tank. It it were PWM, they usually regulate the pressure via that PWM and don't have an over pressure vent. That tells me it is a full on or off of 12 volts to drive the fuel pump.
2. The system does not use a relay for the fuel pump. Besides not being able to find one in the vehicle, the parts houses don't list one either. That usually means the fuse panel circuit boards use solid state switching to run the fuel pump.
So, if I do eventually conclude that the Totally Integrated Power Module (TIPM) is faulty, I COULD, with a simple relay circuit, bypass the TIPM to drive the fuel pump. (I am not saying I will!)
What I do know, so far.
I found a document (attached) that lists the pinout of one of the harness connectors as having the TIPM output pin that drives the fuel pump (Pin 18). I get 12V output on pin 18, briefly when I turn the key to the ON position, and then again full on while it attempts to start in the START position. (BTW, though the document has Dark Blue as the color of the wire hand written on it, my wire is Orange with Red stripe.)
Am I looking at the correct TIPM pin output for the fuel pump power?
Short of me now getting under the vehicle (I am not as flexible as I used to be), I am now looking at getting a new fuel pump. I guess a ground could have come loose, the connector pulled apart, or a squirrel chewed a wire. Still, that is what it is looking like.
Fuse box
Fuse box main board bottom view
Fuse box main board top view
Connector documentation (Gray) Page 1
Connector documentation (Gray) Page 2 My fuel pump output wire was Orange/Red Stripe
Can anybody verify that my diagnosis is in the right direction?
