I finally started cutting the frame boxing plates today. I am so happy to have a plasma cutter again! It's nothing fancy, a Titanium Plasma 45 from Harbor Freight, but it cuts through 3/16" steel like warm butta!! I was facing going after these outlines with a 4-1/2" grinder and a cut off wheel(s). This tool does it in 1/10th the time.



Nothin' like having the right tool for the job.

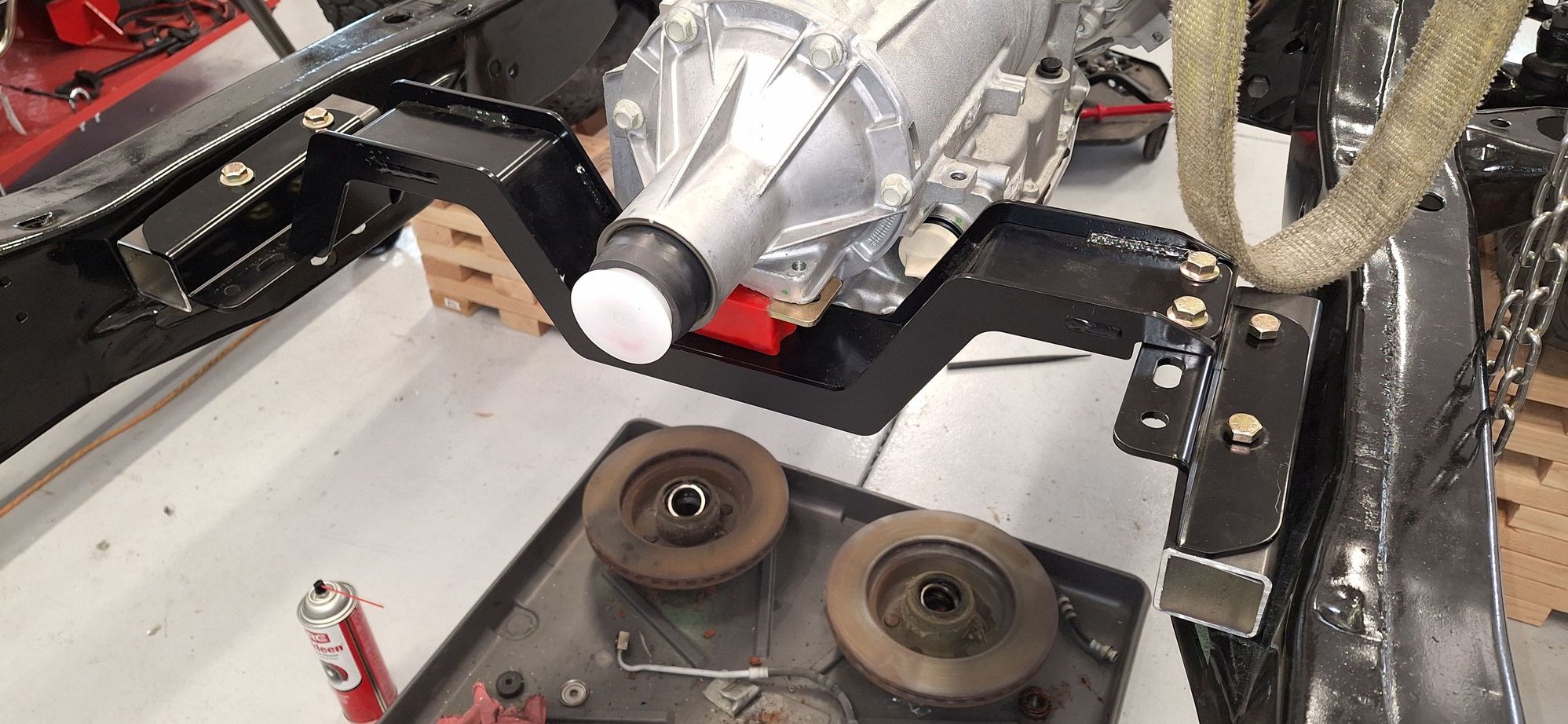

After getting the engine mount adapters finished, I started to sort out the cross member for the transmission. I am using a Hooker Black Heart unit that is made for the Chevy S-10. Racer X Garage on Youtube found out these fit the Dakota just as well, since the two are very close to each other. The 6L80E trans I am using made the pinion angle too steep when bolted to the cross member. I decided to try and fit some 2" x 2" x .12" wall square tubing between the frame and the cross member brackets. This set up brought the pinion angle to 2.9 degrees. All of the research I have done has indicated a maximum of 3 degrees, so this corrected my issue. To finish them off, I will take them out and weld end plates to each end of the tubes prior to painting and final assembly. That will help strengthen them against crush loads.



Think I might cut some internal spacers where the bolts got thru as well.......

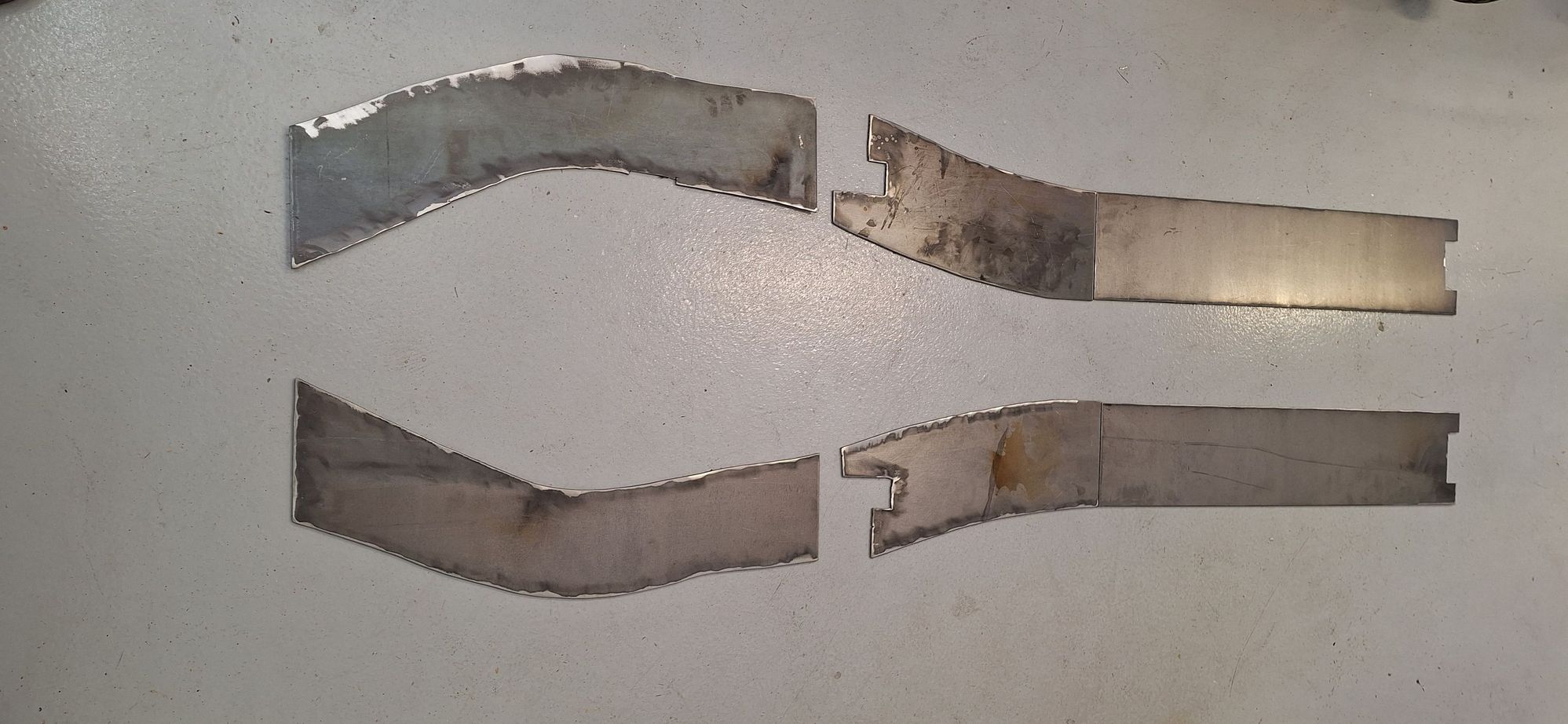

8' per side of chassis boxing plates ready for clean up. I will paint the sides facing the frame rails with primer/sealer paint prior to starting the welding. Did I say I love having a plasma cutter? No?! The funny looking notch in the middle is to clear a cross member I do not want to remove.

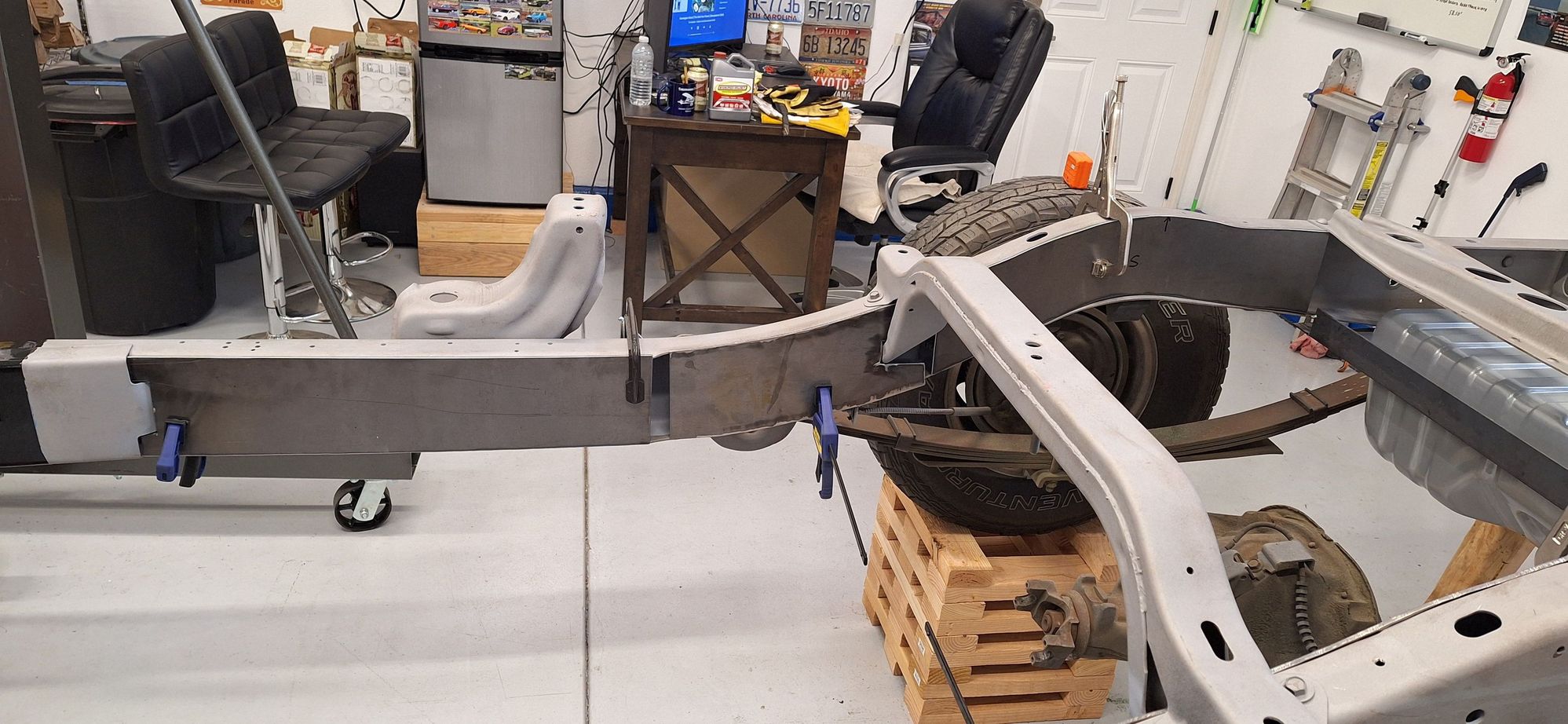

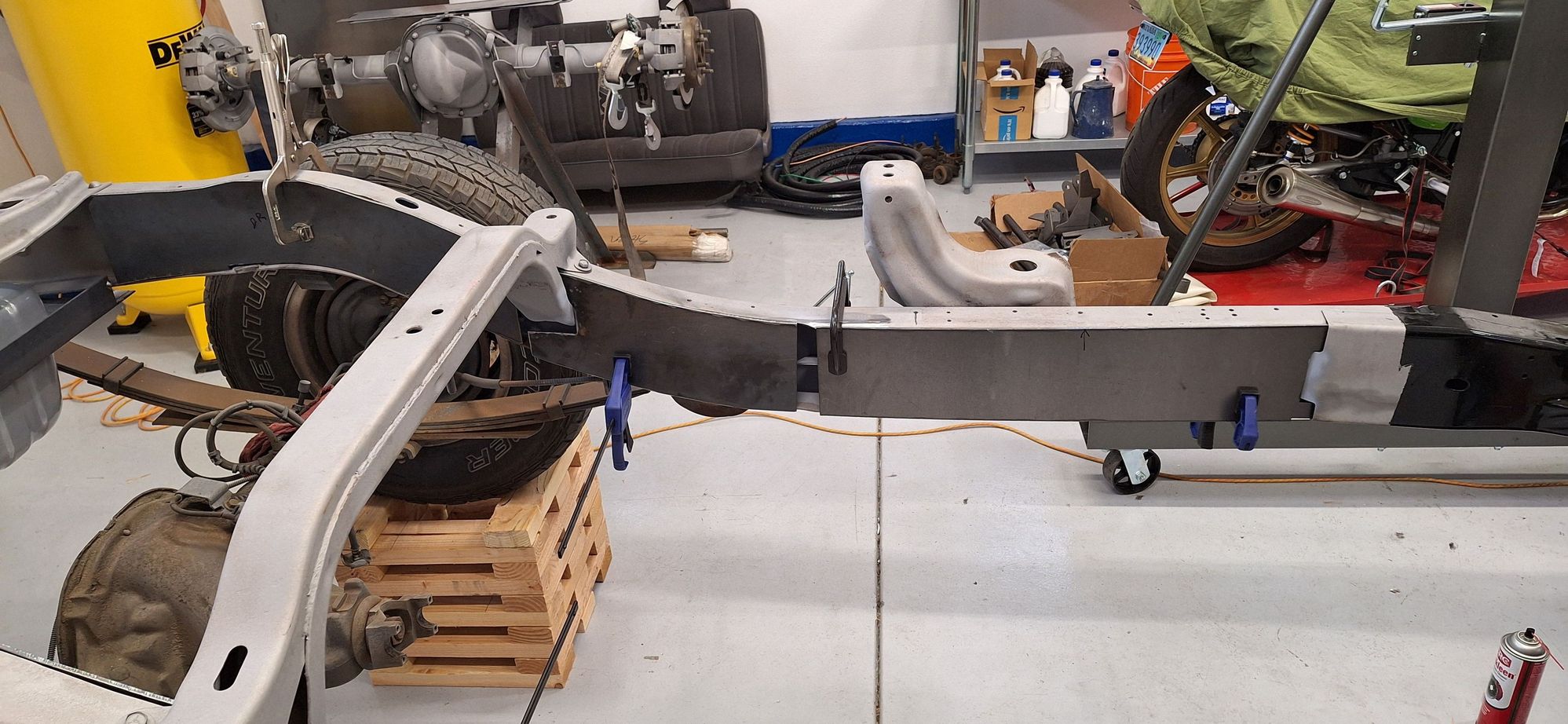

Here is the first test fitting of the thicker boxing plates. More trimming is needed, and a few filler pieces to make as well. The plates go all the way past the axle, ending at the stock shock mount cross member.
